6240B DC Voltage Current Source/Monitor Operation Manual
5.2.2 Operations in Pulse Source Mode
5-11
a. When the trigger mode is AUTO:
• The measurement and the pulse cycle repeat at intervals of the specified period time.
• If the measurement does not finish in the specified period, the pulse width does not change but
the pulse cycle is extended and the TpALM indicator goes ON.
• If the source value or the base value is changed during pulse generation, the pulse source oper-
ation (including COMPLETE OUT signal output) stops and restarts with the new source value
or base value.
b. When the trigger mode is HOLD:
• The measurement starts when the measurement delay time has passed after trigger input.
• Trigger input during measurement is ignored.
• If a trigger is input during range change processing, pulse generation starts when the range
change processing is completed.
c. When setting to Operate or changing the range
• Pulse generation starts when the Operate processing time has passed after setting to Operate.
• If the source change entails the range change, the base value and pulse value are set in the same
range.
d. In Standby or Suspended status:
• The measurement is not executed in Standby or Suspend status.
Changing the
source value
AUTO
Source value
changing induces
range changing.
Tp: Period time
Tw: Pulse width
Td: Measurement delay time
Tds: Source delay time
Tm: Measurement time
(Integration time +
Measurement data
processing time)
Tcn: Operate processing time
Trc: Range change processing
time
HOLD

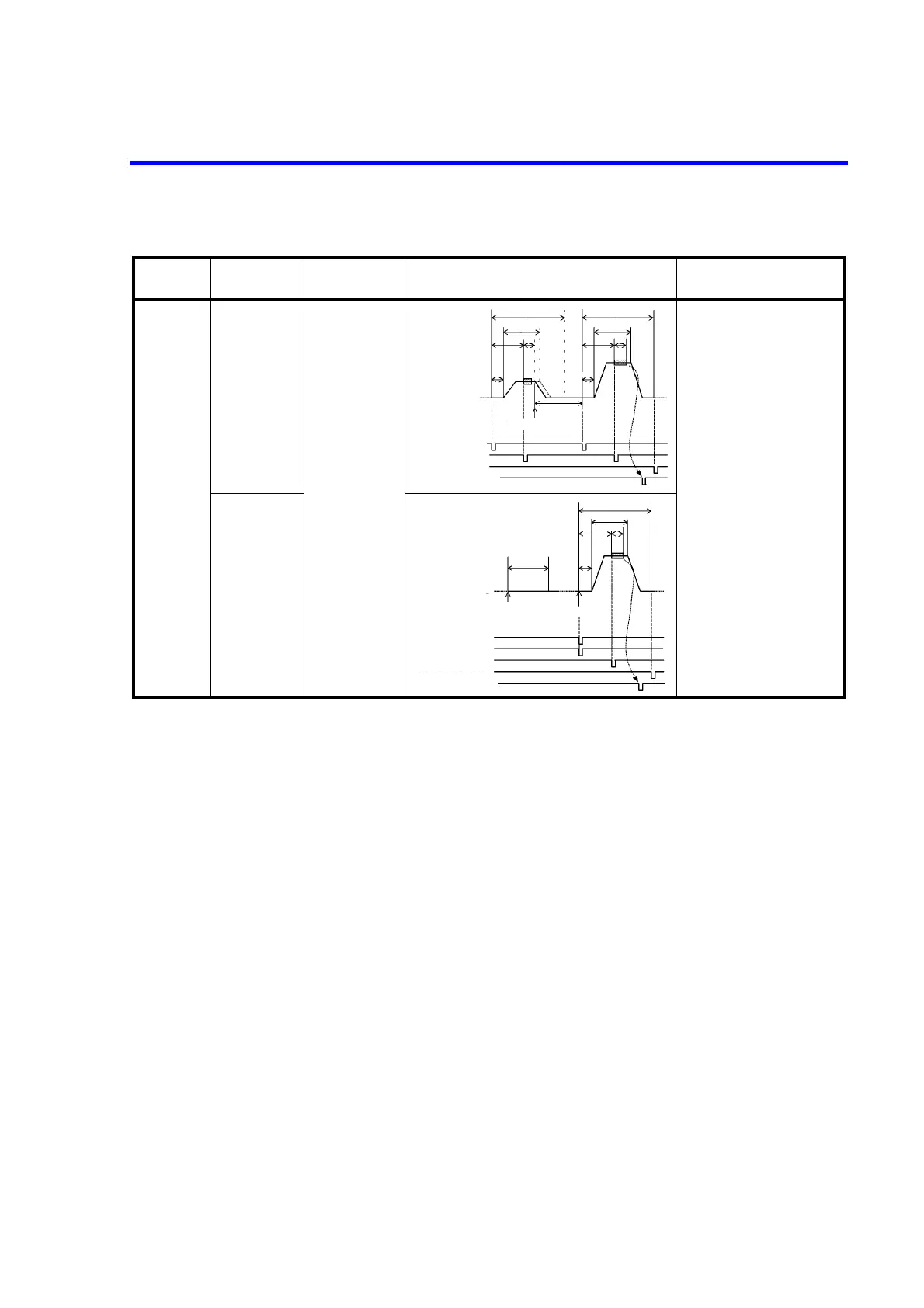

Table 5-3 Operations in Pulse Source Mode (2/2)
Operational
condition
Trigger mode Description Operation Remarks
COMPLETE OUT [FRONT]
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
Tm
Changes the source value
(Change the range)
Tp Tp
Tw Tw
Td Td
Tm
Tds
Tds
Trc
Base value
SYNC OUT
Tp
Tw
Td
Tm
Tds
Trc
Base value
Changes the source value
(Change the range)
Measurement
trigger
COMPLETE OUT [FRONT]
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
SYNC OUT
TRIGGER IN
To Next Page
