5.2.5 Source Function
5-33
2. Setting the output resistance in Suspend status
Set selecting A) SOURCE and then 3) Suspend Z in the menu.
HiZ: High resistance output status. The current limit values are set to 300 nA.
LoZ: Low resistance output status.
Vs: The setting current limit values (up to 1 A) are applied.
Is: The current limit values are set to 300 digits in the Is range.

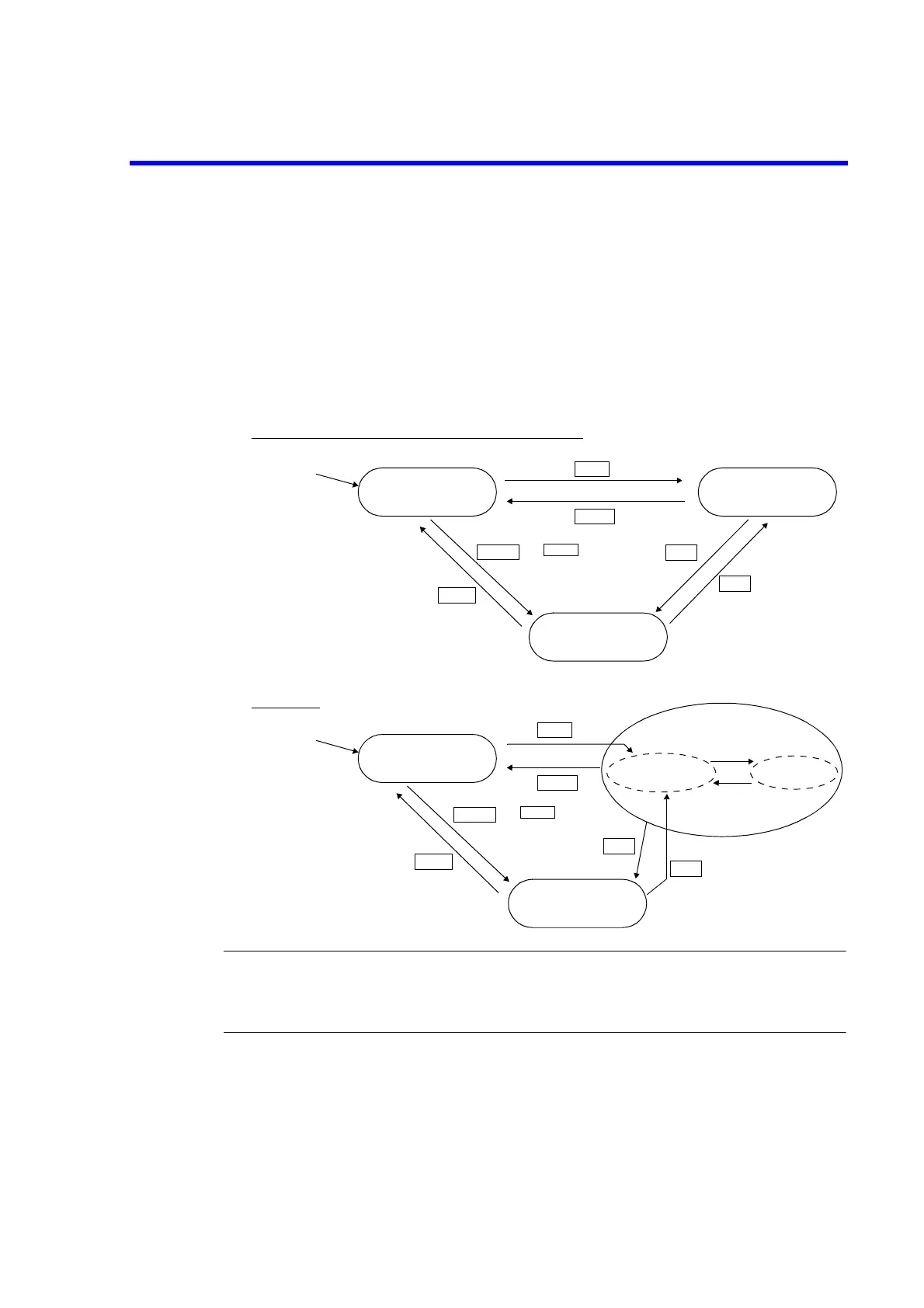

3. Shifting between Operate, Standby, and Suspend
NOTE: The source data during sweep is generated with the following timing.
1. Standby
 Operate
2. Standby
 Suspend
3. When Operate is set after changing the sweep parameters in Suspend status
Standby status
DC source/Pulse source/Low-resistance measurement pulse source
Operate status
Suspend status
Power ON
OPR
STBY
OPR
STBY
SHIFT
+
SUSPEND
OPR
Standby status
Sweep source
Operate status
Suspend status
Power ON
OPR
STBY
OPR
STBY
SHIFT
+
SUSPEND
Bias output status
Sweep start
Sweep status
Sweep stop
OPR
