Agilent Technologies 8753ET Service Guide

2-96 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
1. Reflection Test Port Output Frequency Range and Accuracy
This test determines the analyzer’s reflection test port output frequency range and
accuracy over its entire operating frequency range. A frequency counter is used to
determine the analyzer’s output frequency.
Analyzer warm-up time: 30 minutes
Specifications
Required Equipment
Procedure

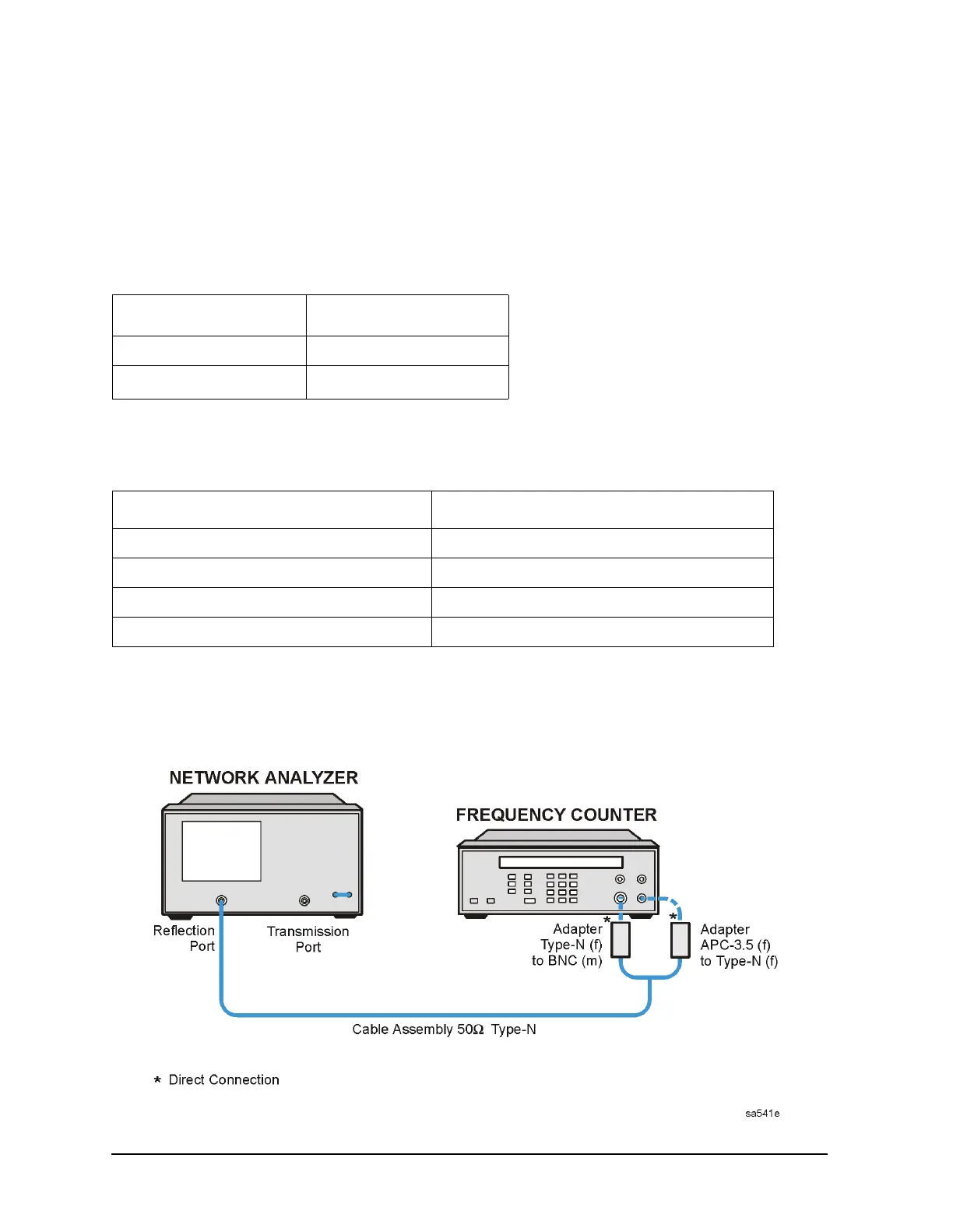

1. Connect the equipment as shown in Figure 2-56.
Figure 2-56 Reflection Test Port Output Frequency Range and Accuracy
Frequency Range
Frequency Accuracy
a
a. At 25 °C ±5 °C.
300 kHz to 3 GHz ±10 ppm
3 GHz to 6 GHz
b
b. Only for analyzers with Option 006.
±10 ppm
Description HP/Agilent Part or Model Number
Frequency Counter 5350B/51B/52B
Cable: 50Ω, Type-N, 24 inch 8120-4781
Adapter: APC-3.5 (f) to Type-N (f) 1250-1745
Adapter: Type-N (f) to BNC (m) 1250-0077
