Chapter 4 4-15
Start Troubleshooting Here
Source

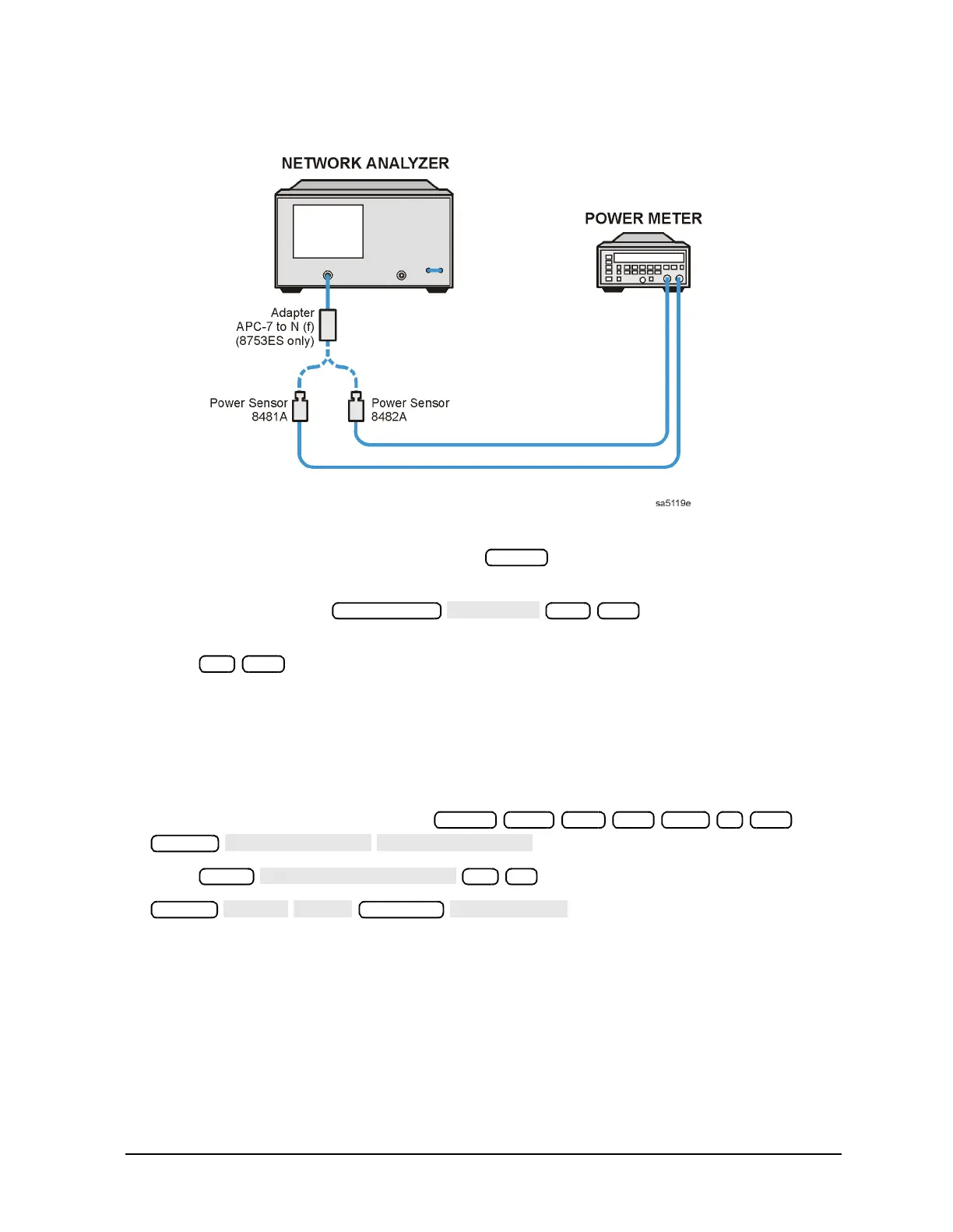

Figure 4-5 Equipment Setup for Source Power Check
2. Zero and calibrate the power meter. Press on the analyzer to initialize the
instrument.
3. On the analyzer, press to output a CW 300 kHz
signal. The power meter should read approximately 0 dBm.
4. Press to change the CW frequency to 16 MHz. The output power should
remain approximately 0 dBm throughout the analyzer frequency range. Repeat this
step at 1 and 3 GHz. (For Option 006 include an additional check at 6 GHz.)
If any incorrect power levels are measured, refer to Chapter 7 , “Source Troubleshooting.”
No Oscilloscope or Power Meter? Try the ABUS
1. Monitor ABUS node 16 by pressing
.
2. Press .
3. .
The display should resemble Figure 4-6.
Preset
Sweep Setup
300 k/m
16 M/µ
Preset Start 300 k/m Stop 3 G/n
System
Meas
16 x1
Format
To Next Page
