Chapter 13 13-55

Replaceable Parts

Replaceable Part Listings

8753ET/ES: Hardware, Preregulator

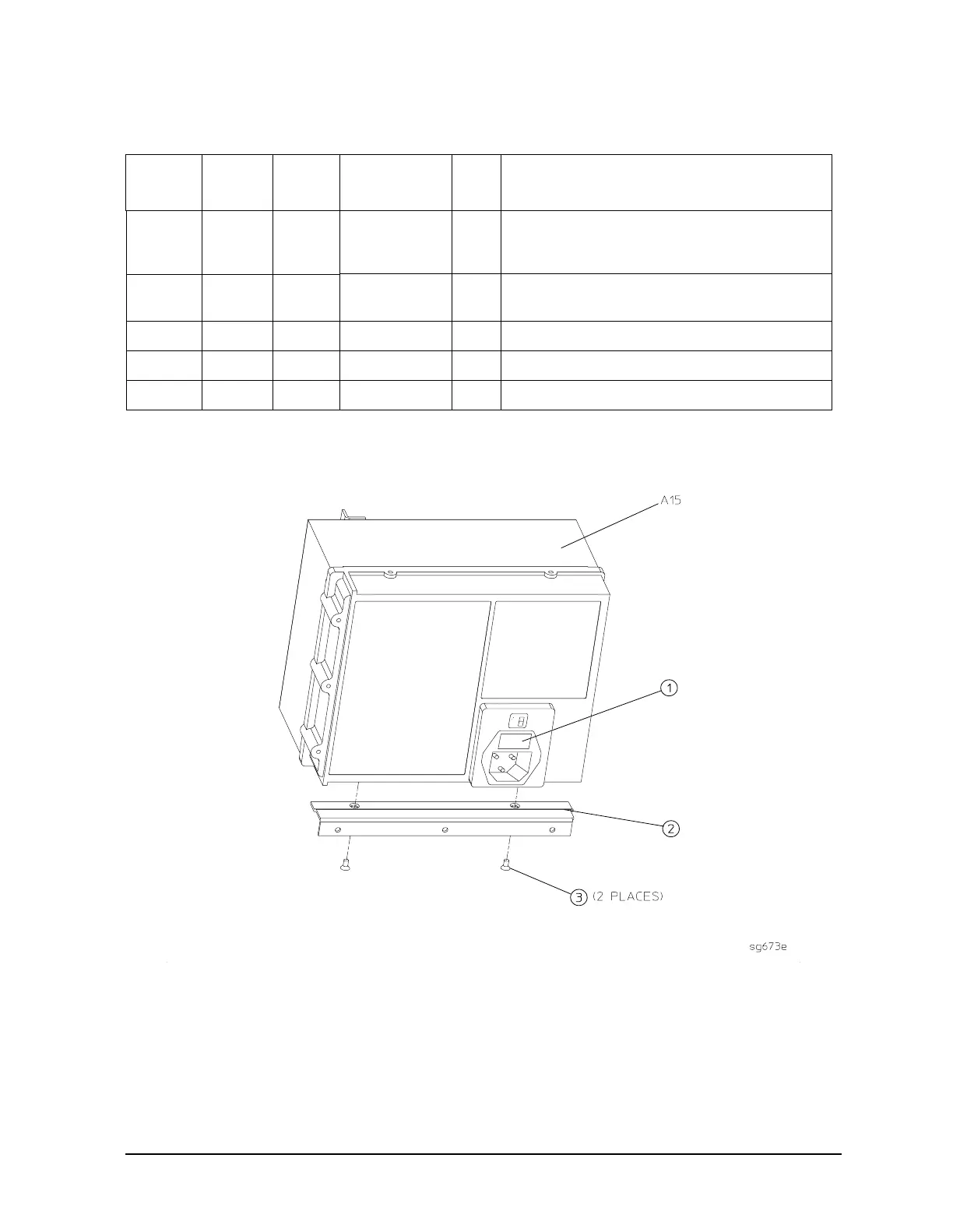

Figure 13-30 8753ET/ES: Hardware, Preregulator

Ref.

Desig.

ET/ES Option HP/Agilent

Part Number

Qty Description

1 ET/ES 2110-1059 1 FUSE, T 5A 125V, UL LISTED/CSA

CERTIFIED TO 248 STANDARD (for 115V

operations)

1 ET/ES 2110-1036 1 FUSE, T 4A H 250V, BUILT TO IEC127-2/5

STANDARD (for 230V operations)

2 ET/ES 08753-00065 1 BRACKET-PREREGULATOR

3 ET/ES 0515-1400 2 SCREW-MACHINE M3.5×8 CW-FL-TX

A15 ET/ES 0950-3488 1 PREREGULATOR-ASSY
