Agilent Technologies 8753ET Service Guide

13-16 Chapter 13
Replaceable Parts
Replaceable Part Listings
8753ES Option 014: Major Assemblies and Cables, Bottom

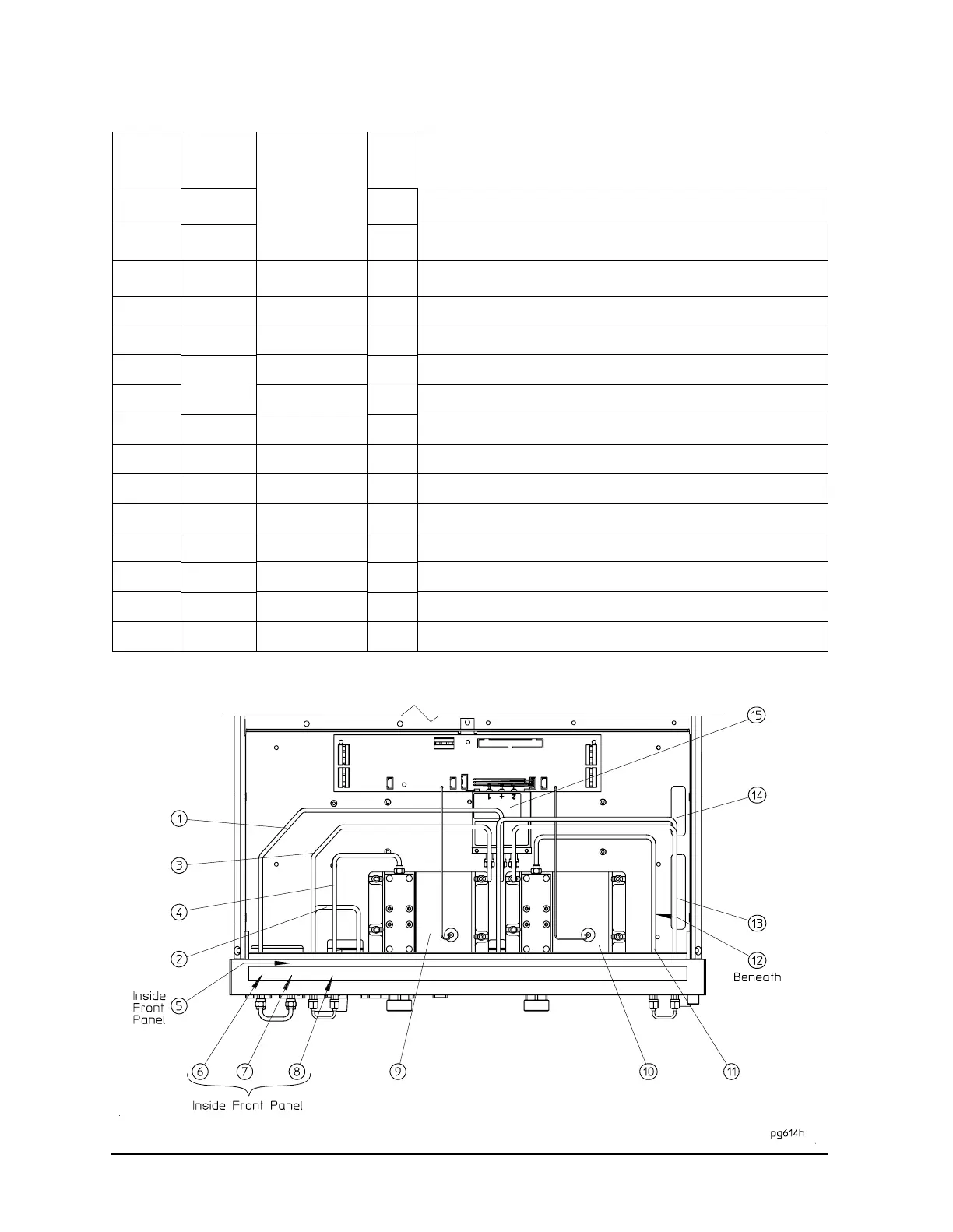

Figure 13-6 8753ES Option 014, Major Assemblies and Cables, Bottom
Item Option HP/Agilent
Part Number
Qty Description
1
014
08753-20184
1 SWITCH RF IN to A24 PORT C
2
014
08753-20181
1 A22 COUPLER ARM to B SAMPLER OUT
3
014
08753-20176
1 SWITCH A24 to PORT 2 SWITCH
4 014 08753-20180 1 PORT 2 COUPLER to A22 COUPLER MAIN
5 014 08753-20951 1 SOURCE A3 to RF OUT
6 08753-20291 1 SOURCE A3 to R CHANNEL OUT
7 08753-20290 1 R CHANNEL IN to R SAMPLER
8 014 08753-20954 1 B SAMPLER IN to B SAMPLER
9 5087-7007 1 A22 COUPLER, TEST PORT 2
10 5087-7007 1 A21 COUPLER, TEST PORT 1
11 014 08753-20177 1 PORT 1 COUPLER to A21 COUPLER MAIN
12 014 08753-20179 1 A SAMPLER IN to A SAMPLER
13 014 08753-20175 1 SWITCH A24 to PORT 1 SWITCH
14 014 08753-20178 1 A21 COUPLER ARM to A SAMPLER OUT
15 5087-7067 1 A24 SWITCH
