Cavity Oscillator Frequency Correction Constants (Test 54)

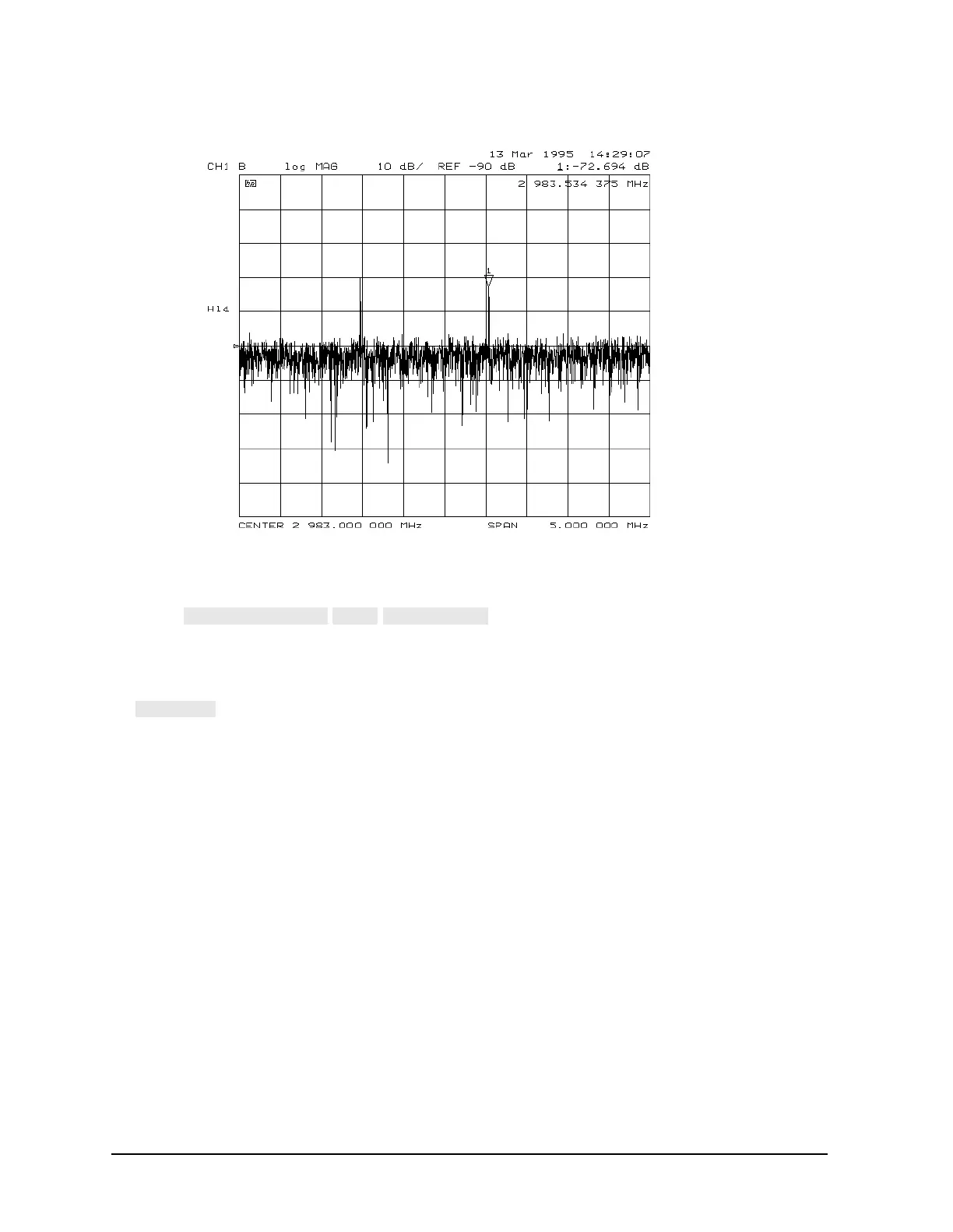

Figure 3-11 Typical Display of Spurs with a Filter
Spur Search Procedure with a Filter
5. Press and the other softkeys as required to
observe and mark the target spur. The target spur will appear to the right of a second
spur, similar to Figure 3-11.
6. Rotate the front panel knob to position the marker on the spur and then press
.
7. Observe the analyzer for the results of this adjustment routine:
• If the analyzer displays Cav Osc Cor DONE, you have completed this procedure.
• If the analyzer does not display DONE, repeat this procedure.
• If the analyzer continues not to display DONE, refer to Chapter 7 , “Source
Troubleshooting.”
