13-22 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ES Option 014: Cables, Top

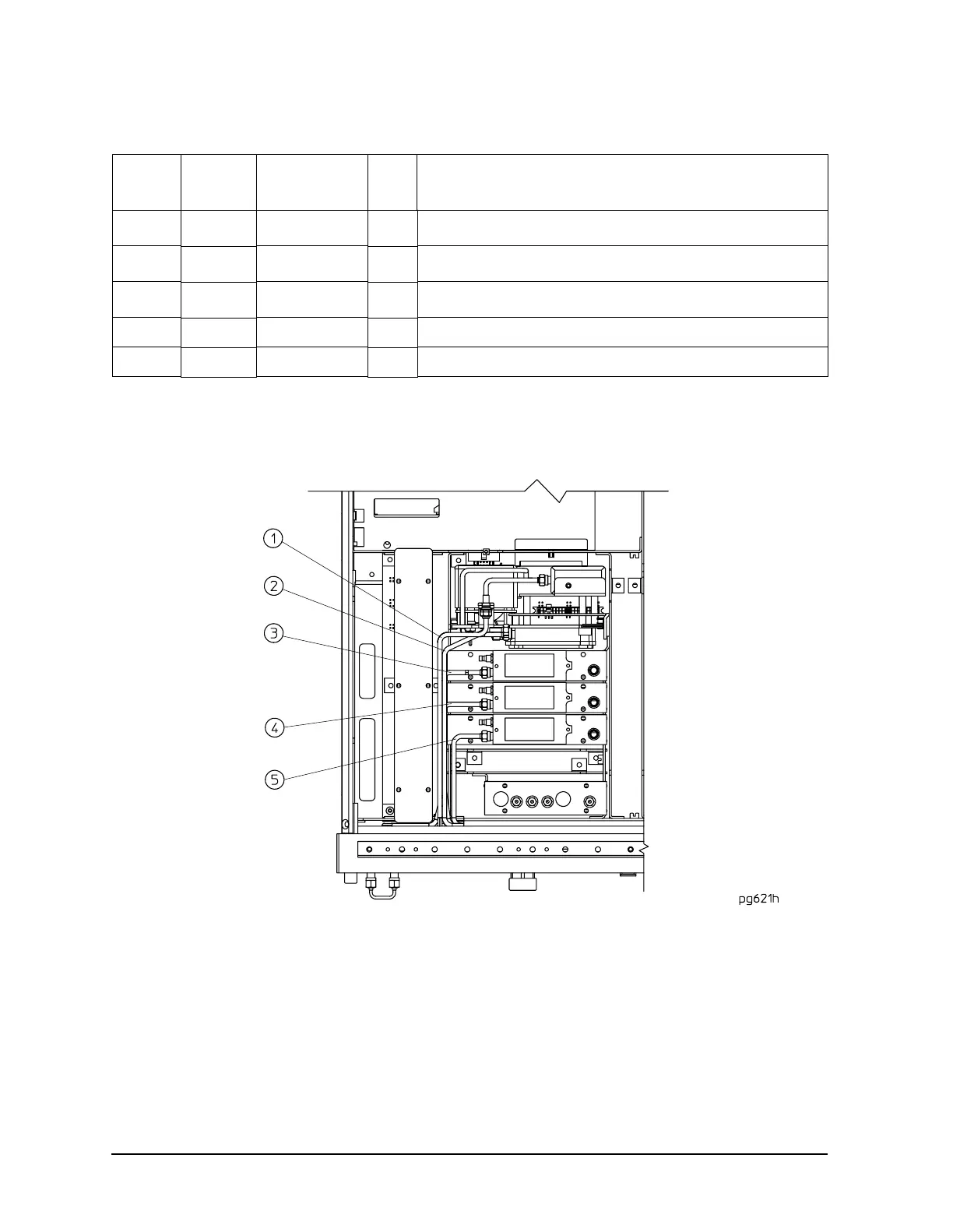

Figure 13-9 8753ES Option 014: Cables, Top

Item Option HP/Agilent

Part Number

Qty Description

014

08753-20951

1 CABLE, SOURCE to RF OUT

2 08753-20291

1 CABLE, R CHANNEL OUT to A3 SOURCE

014

08753-20954

1 CABLE, B SAMPLER IN to B SAMPLER

4 014 08753-20179 1 CABLE, A SAMPLER IN to A SAMPLER

5 08753-20290 1 CABLE, R CHANNEL IN to R SAMPLER
