2-114 Chapter 2
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests
6. Minimum R Channel Level
This test confirms that phase lock can be achieved at a specified minimum R channel input
power. Power from the analyzer’s output port is fed into the R channel receiver using the
input found on the front panel. Observations are made for proper phase lock conditions.
Analyzer warm-up time: 30 minutes.
Specifications
Required Equipment
Procedure
1. If you do not have Option 004, connect the equipment as shown in Figure 2-63.
If you have Option 004, connect the equipment as shown in Figure 2-64.

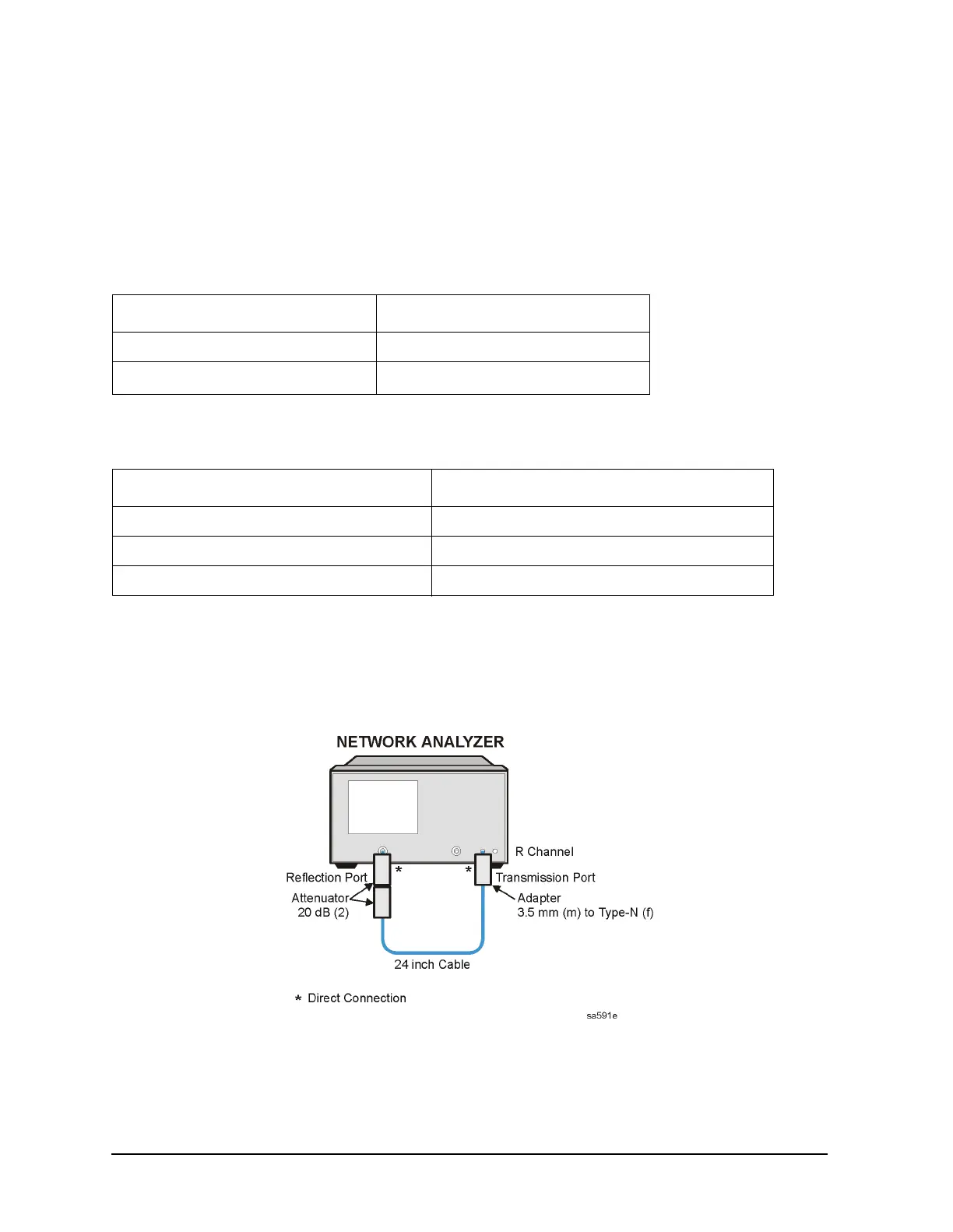

Figure 2-63 8753ET (Standard) Minimum R-Channel Level Test Setup
Frequency Range Minimum R Channel Level
300 kHz–3.0 GHz < −35 dBm
3 GHz–6.0 GHz
a
a. Only for analyzers with Option 006.
< −30 dBm
Description HP/Agilent Part or Model Number
Adapter: 3.5-mm (m) to Type-N (f) 1250-1750
Cable: 50 W, Type-N, 24 inch 8120-4781
Attenuators (2): 20 dB, Type-N 8491A Option 020
