Chapter 13 13-49

Replaceable Parts

Replaceable Part Listings

8753ES: Hardware, Bottom

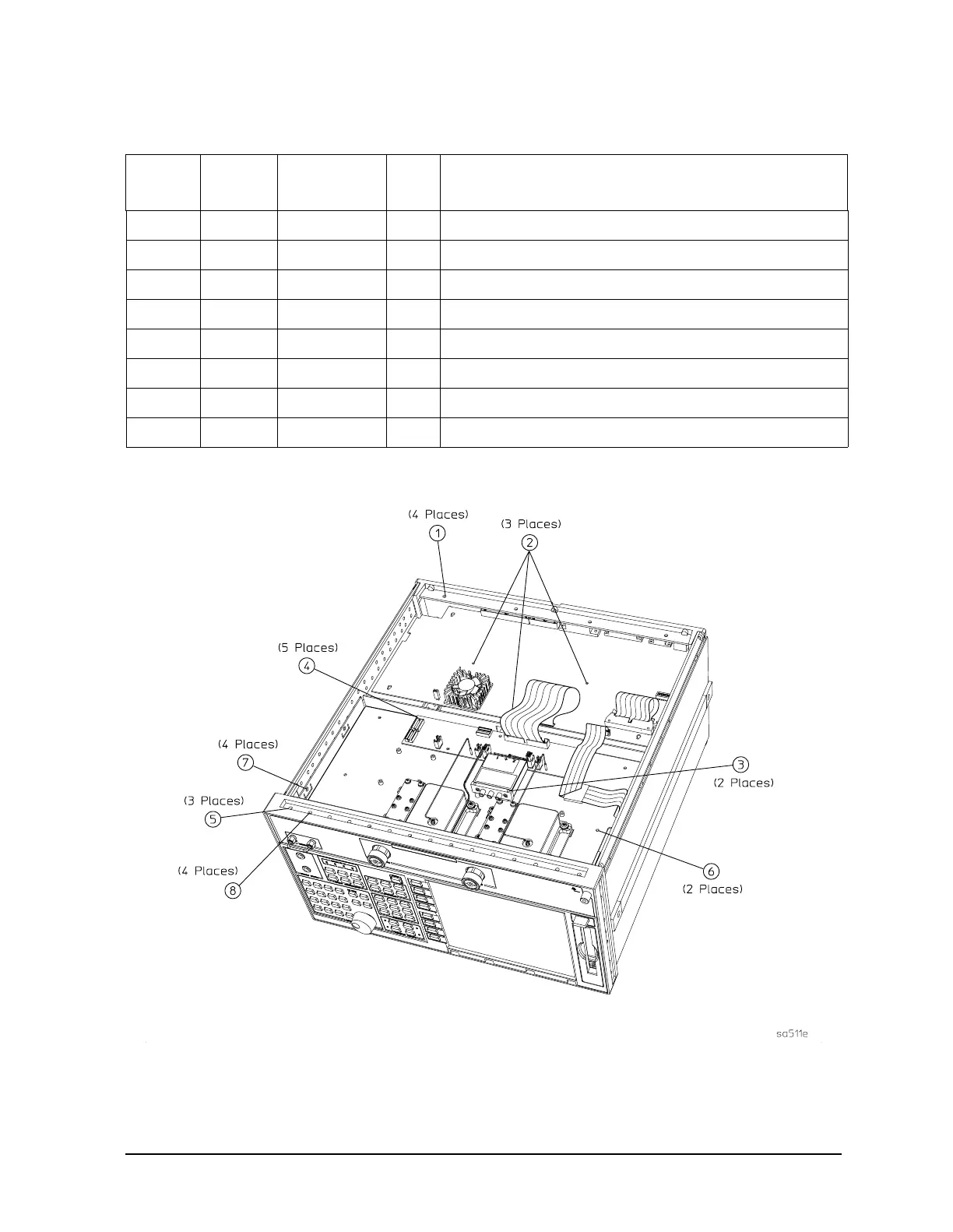

Figure 13-24 8753ES: Hardware, Bottom

Ref.

Desig.

Option HP/Agilent

Part Number

Qty Description

1 0515-0458 4 SCREW-MACHINE M3.5×8 CW-PN-TX

2 0515-0430 3 SCREW-MACHINE M3.0×6 CW-PN-TX

3 0515-0667 2 SCREW-MACHINE M3.0×25 CW-PN-TX

4 0515-0430 5 SCREW-MACHINE M3.0×6 CW-PN-TX

5 0515-1400 3 SCREW-MACHINE M3.5×8 PC-FL-TX

6 0515-0375 2 SCREW-MACHINE M3.0×16 CW-PN-TX

7 0515-0458 4 SCREW-MACHINE M3.0×16 CW-PN-TX

8 0515-2086 4 SCREW-MACHINE M4.0×7 PC-FL-TX
