3-18 Chapter 3
Adjustments and Correction Constants
Sampler Magnitude and Phase Correction Constants (Test 53)
Determine the Insertion Loss of the Cable at 1 GHz
(8753ES)
1. Press .
2. Press .
3. Press
.
4. Connect the 24 inch cable from Port 1 to Port 2, as shown in Figure 3-3.

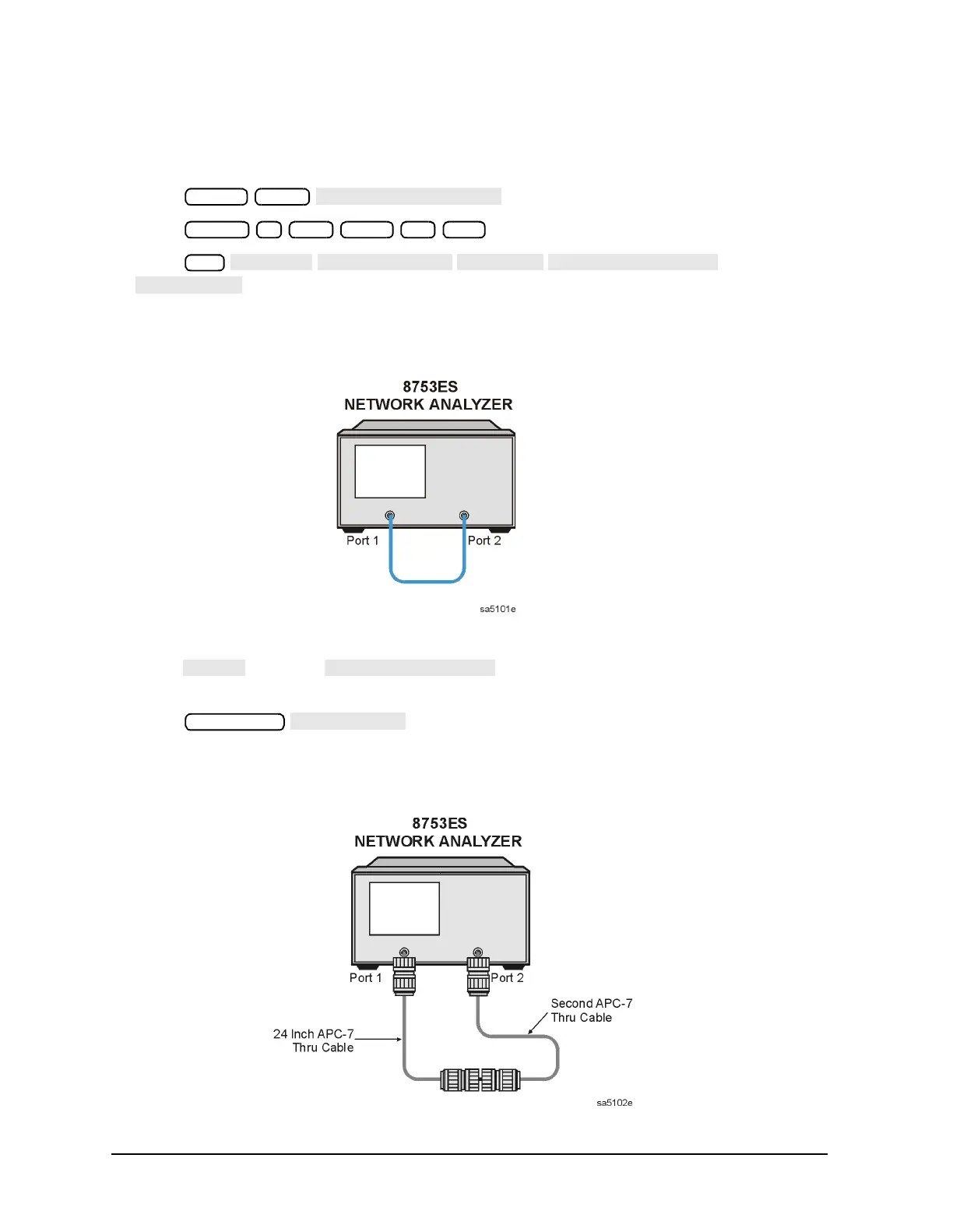

Figure 3-3 First Connections for Insertion Loss Measurement (8753ES)
5. Press and then when the analyzer is done measuring the
through.
6. Press to save the calibration that you just made.
7. Make the connections as shown in Figure 3-4.
Figure 3-4 Second Connection for Insertion Loss Measurement
Preset Meas
Center 1 G/n Span 50 M/µ
Cal
Save/Recall
