13-54 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ET/ES: Hardware, Memory Deck

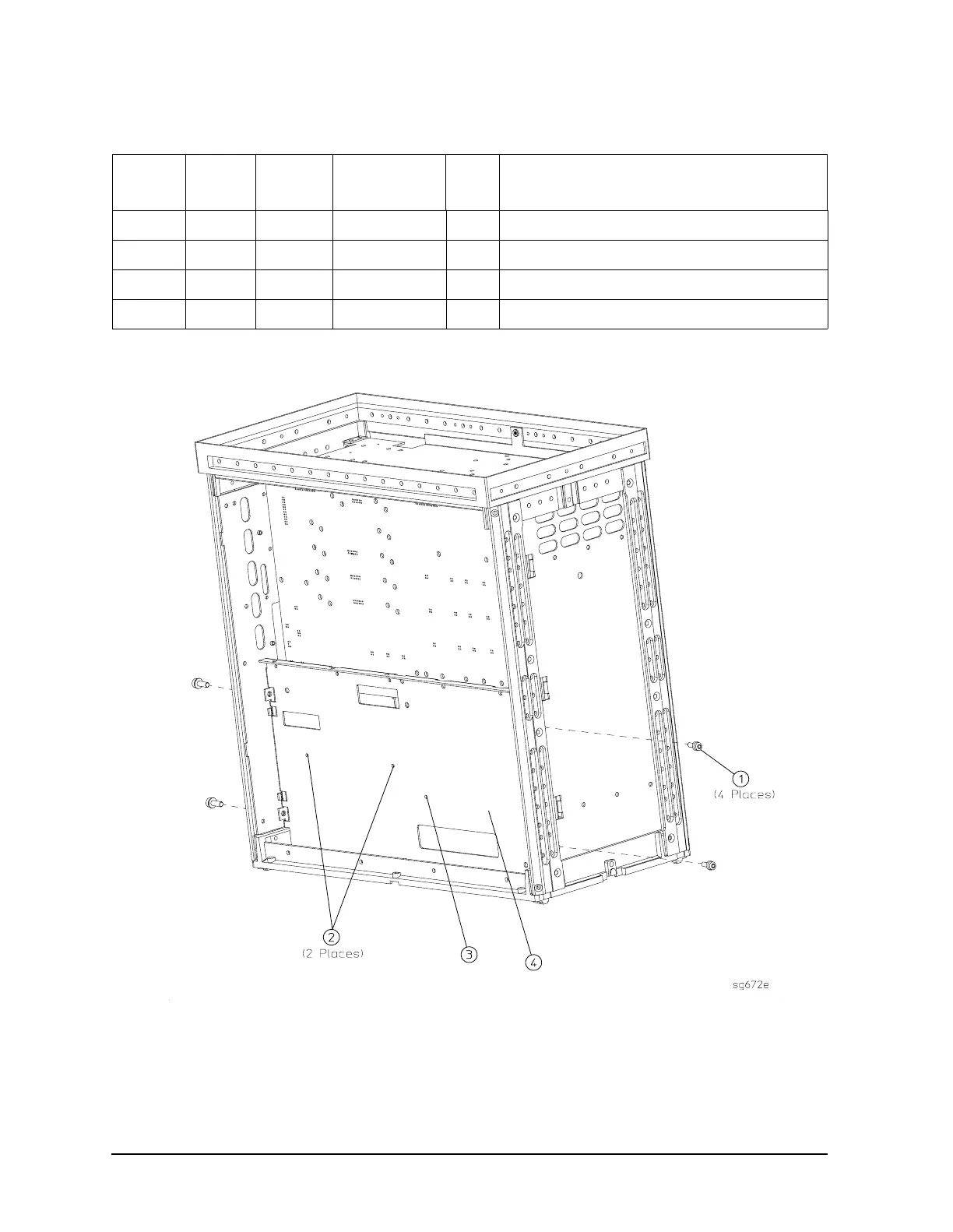

Figure 13-29 8753ET/ES: Hardware, Memory Deck

Ref.

Desig.

ET/ES Option HP/Agilent

Part Number

Qty Description

1 ET/ES 0515-0458 4 SCREW-MACHINE M3.5×8 CW-PN-TX

2 ET/ES 0515-0430 2 SCREW-MACHINE M3.0×6 CW-PN-TX

3 ET/ES 0515-0375 1 SCREW-MACHINE M3.0×14 CW-PN-TX

4 ET/ES 08753-00128 1 DECK-MEMORY
