5-4 Chapter 5

Power Supply Troubleshooting

Simplified Block Diagram

Figure 5-1 shows the power supply group in simplified block diagram form. Refer to the

detailed block diagram of the power supply located at the end of this chapter to see voltage

lines and specific connector pin numbers.

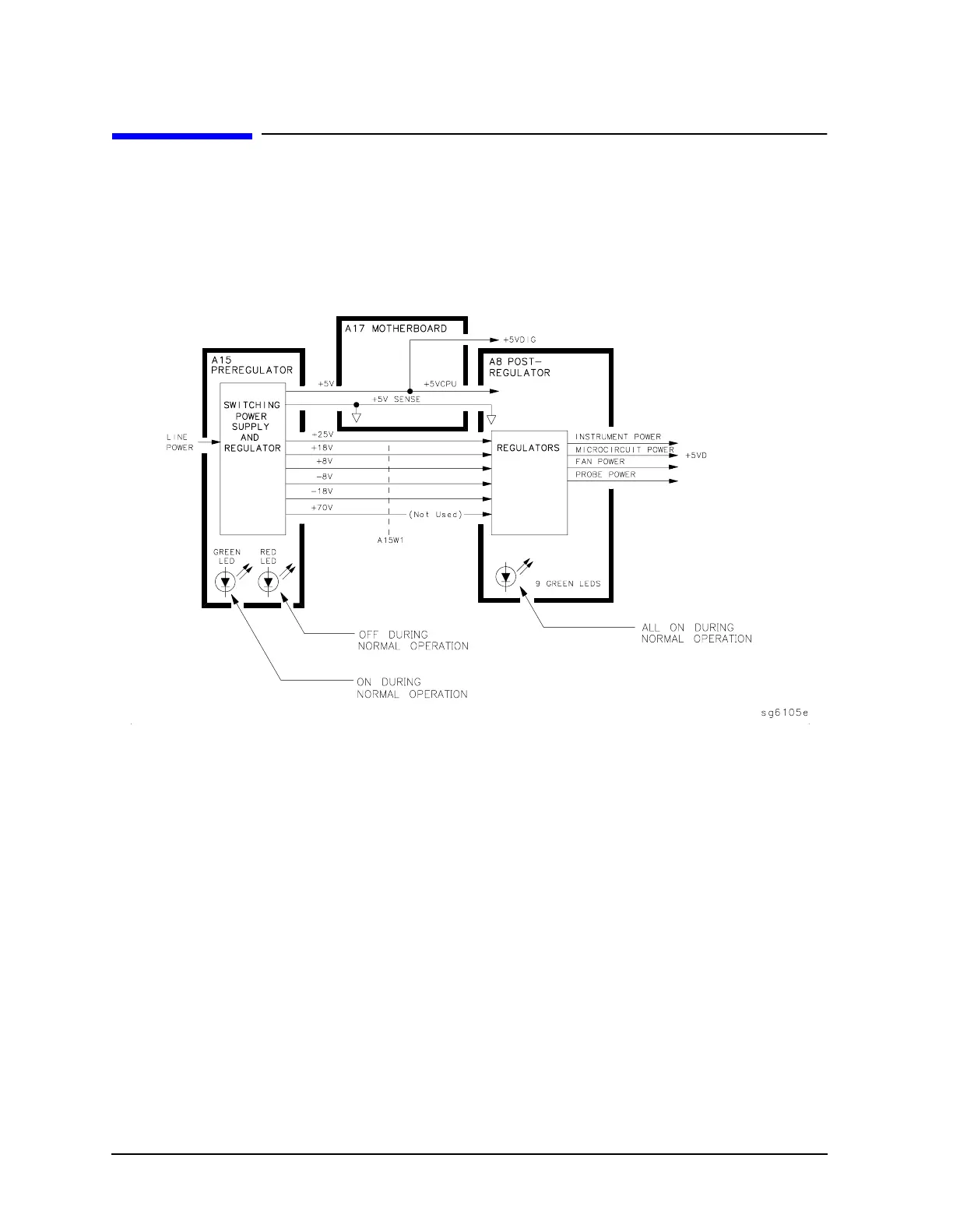

Figure 5-1 Power Supply Group Simplified Block Diagram
