3-50 Chapter 3
Adjustments and Correction Constants
Fractional-N Spur Avoidance and FM Sideband Adjustment

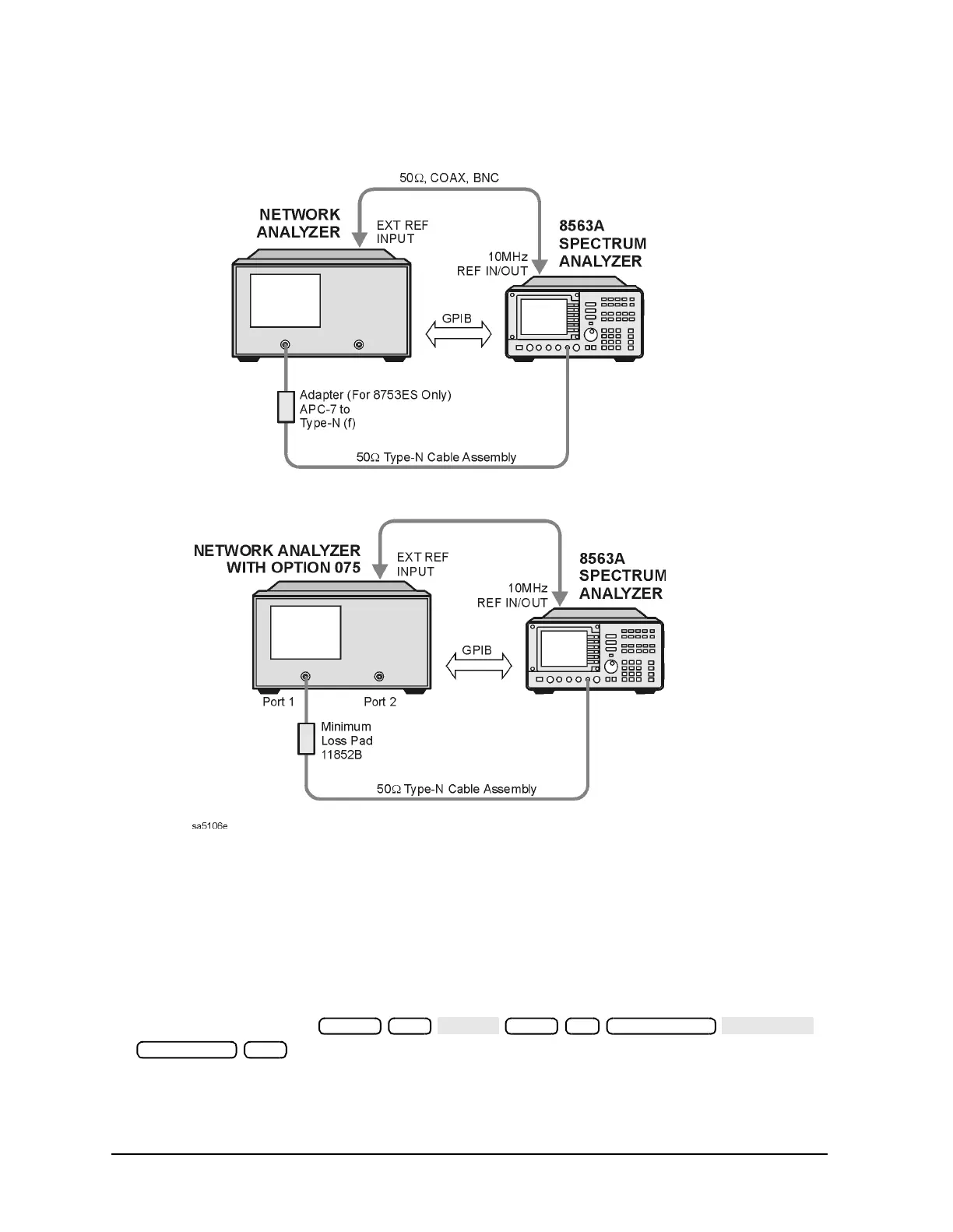

Figure 3-22 Fractional-N Spur Avoidance and FM Sideband Adjustment Setup
3. Set the spectrum analyzer measurement parameters as follows:
Reference Level 0 dBm
Resolution Bandwidth 100 Hz
Center Frequency 676.145105 MHz
Span 2.5 kHz
4. On the analyzer, press
.
Preset Avg
3000 x1 Sweep Setup
676.045105 M/µ
To Next Page
