Agilent Technologies 8753ET Service Guide

Chapter 9 9-7
Accessories Troubleshooting
Inspect the Error Terms
Replace the good open with the questionable open at port 1. The trace of the
questionable open should appear very similar to the known good open.

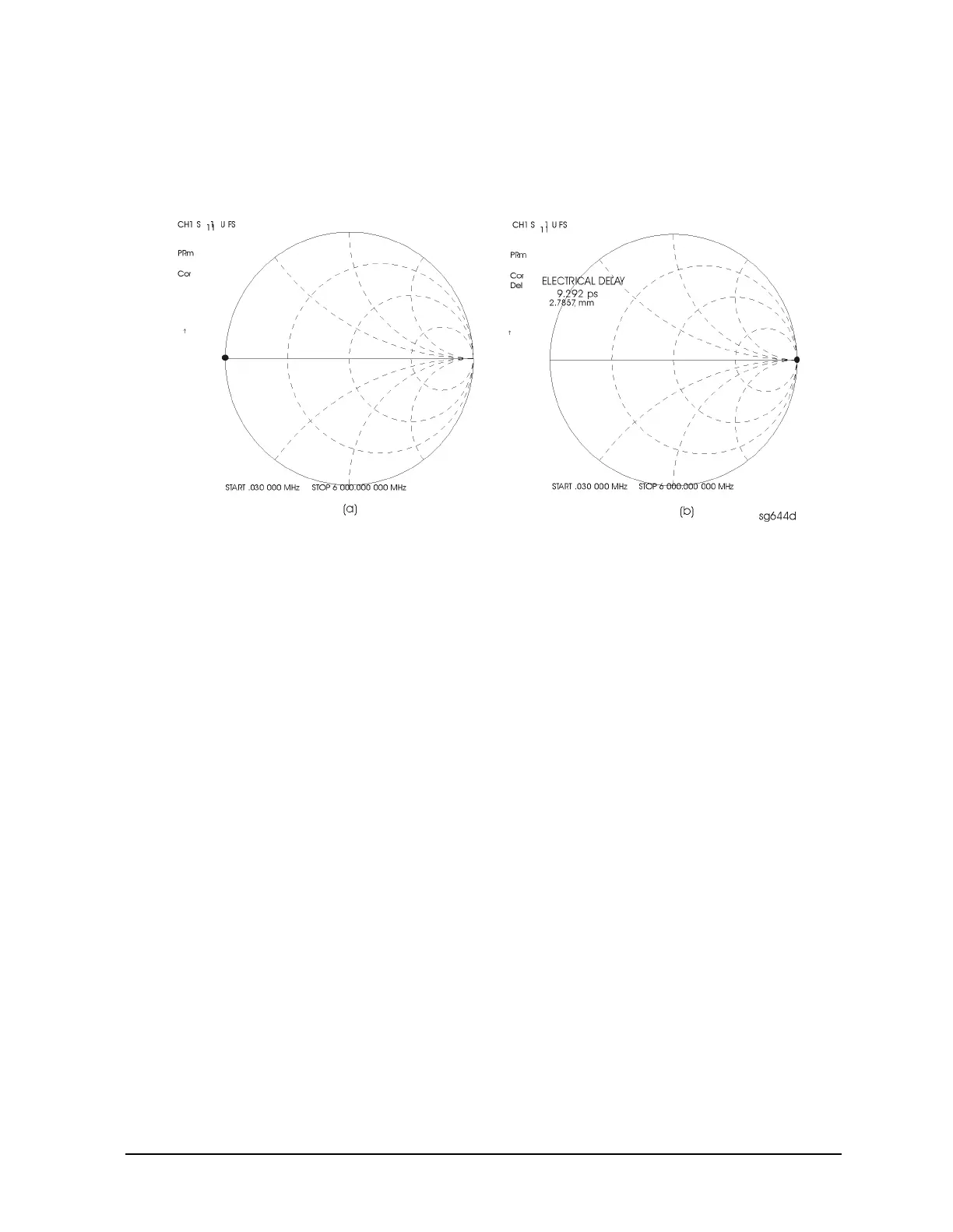

Figure 9-2 Typical Smith Chart Traces of Good Short (a) and Open (b)
