System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

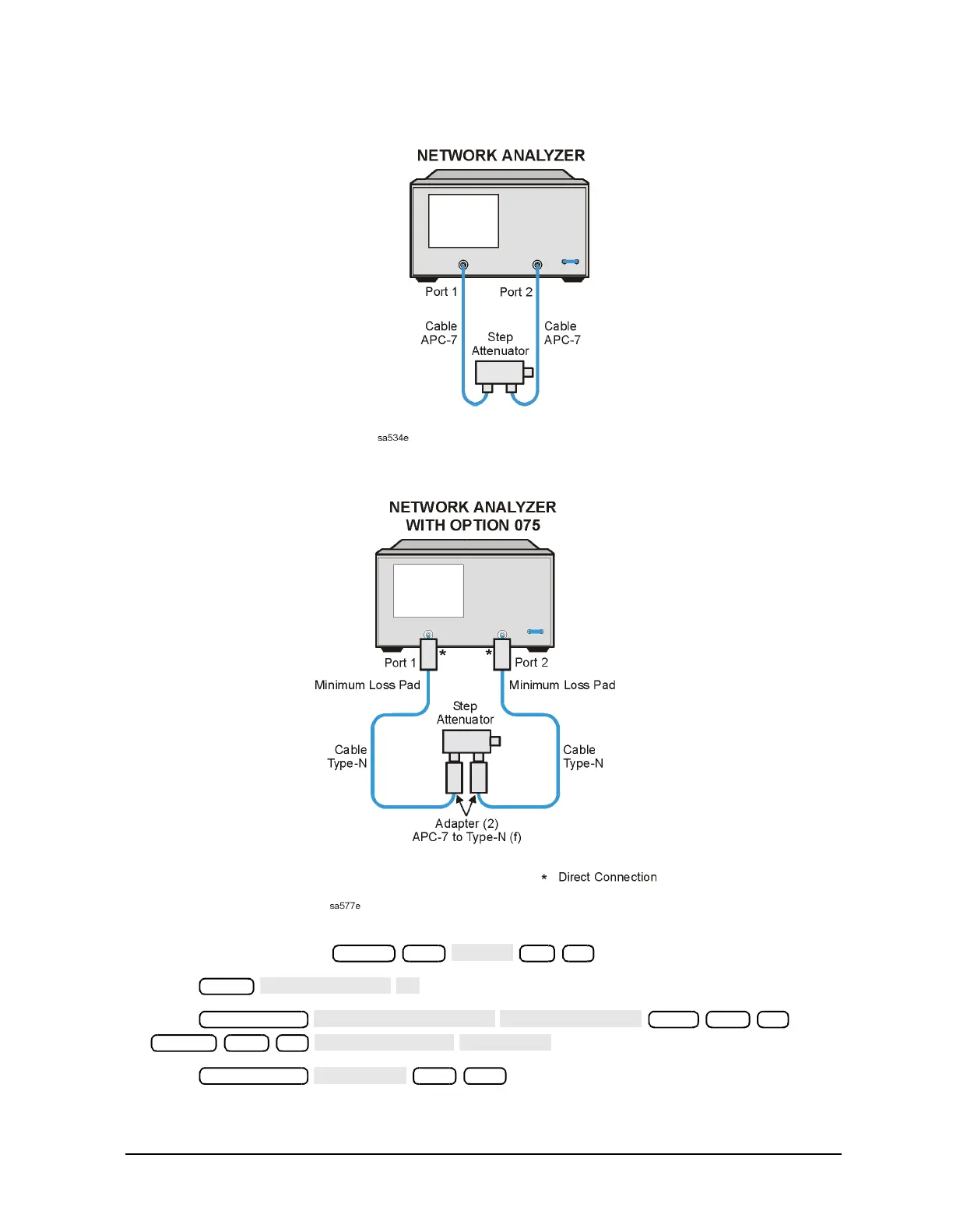

Figure 2-40 Test Port Receiver Magnitude Compression Test Setup
Figure 2-41 Test Port Receiver Magnitude Compression for 75Ω Analyzers
2. On the analyzer, press .
3. Press .
4. Press
.
5. Press (or next CW frequency).
6. Set the step attenuator to 20 dB attenuation.
10 x1
Meas
Start −10 x1
Marker −10 x1
∆
∆
k/m
To Next Page
