Working With States
133
T
PDesign4 Touch Panel Design Software (v2.10 or higher)
Working With States
Overview
All G4 panel entities have at least one state.
 Pages and popup pages have only one state.
 General, Bargraph and Text Input buttons have only two states.
 Multi-State General and Multi-State Bargraph buttons have from 2 to 256 states.
 Joystick buttons have only one state (Off).
The State Manager interacts with the States tab of the Properties Control window to allow the visual
aspects of a button, page, or popup page to be set (FIG. 63).
The State Manager window allows you to view/edit individual states on a selected button.
 If the State Manager is not visible, or if no states have been selected, the State Properties will
show a list of all of the states for the selected button, page, or popup page. The individual
properties for a state can be shown or hidden by clicking either on the "State n" category item
or by clicking the +/- tree control for that state.
 If states have been selected in the State Manager, the State Properties will represent the
intersection of the selected states, reflected by the text of the title item. Setting a property
value will propagate that value across all selected states.

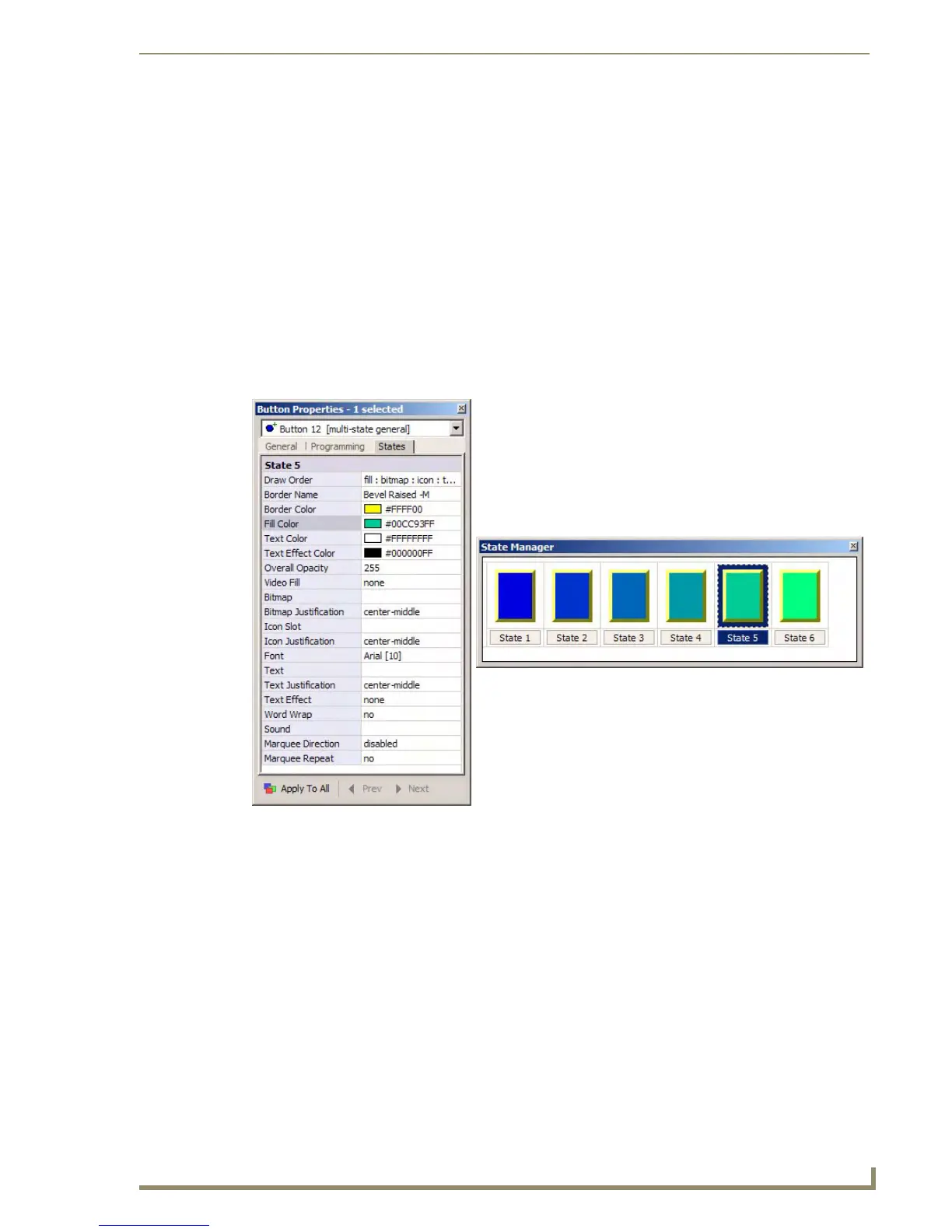

FIG. 63 States Properties and State Manager - State "5" selected

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
