Appendix A: G4 Computer Control
230
TPDesign4 Touch Panel Design Software (v2.10 or higher)
 < mdlGuestPC > - local name for this instance of the cc-GuestPC module
 < vdvGuestPC > - device for cc-GuestPC to use for internal data events; this should be a
DEFINE_DEVICE for the events to work properly
2. cc-GuestPC.tko is located in the module folder on the USB stick. The cc-GuestPC.tko file needs to
be added to your workspace in Studio to compile with source code.
3. Compile and load source code to NetLinx master.
3: G4CC (Computer Control) Configuration:
Launch configCC.exe (on the USB stick). Use this application to configure G4CC.
Using configCC.exe to Configure G4CC
configCC.exe is the Configuration Utility for G4CC (included on the same USB stick). Use this
application to designate up to four Modero / TPI/4 panels that will be allowed to control this computer.
1. Connect the computer to an Ethernet Network that can communicate with the NetLinx Control
System.
2. Insert the USB Computer Control Stick into the USB port on the computer that is being controlled.
A series of USB driver installation popup windows appear.
3. Confirm that a new USB detection icon appears in the lower-right taskbar of the display window.
4. Use the computer’s file browser to navigate to the USB stick’s drive location and open the Config
folder on the USB Control Stick drive directory.
5. Double-click the configCC executable to run the G4 Computer Control Configuration Utility from
the NXA-USBTN drive (FIG. 93).
This application allows you to designate up to four Modero or TPI/4 panels with rights to
control this computer.
The following information is needed for each Modero or TPI/4 panel:
 NetLinx Master IP Address/DNS (Fixed IP/URL)____.____.____.____
(Acquire the IP address of the NetLinx master by using NetLinx Studio 2.1 Diagnostics Tab /
Network Addresses / Get IP Information).
 G4 Touch Panel Device ID: _______
(Acquire the panel device number in the online tree of NetLinx Studio).
 G4 Touch Panel System: _______
(Acquire the system number in the online tree of NetLinx Studio).

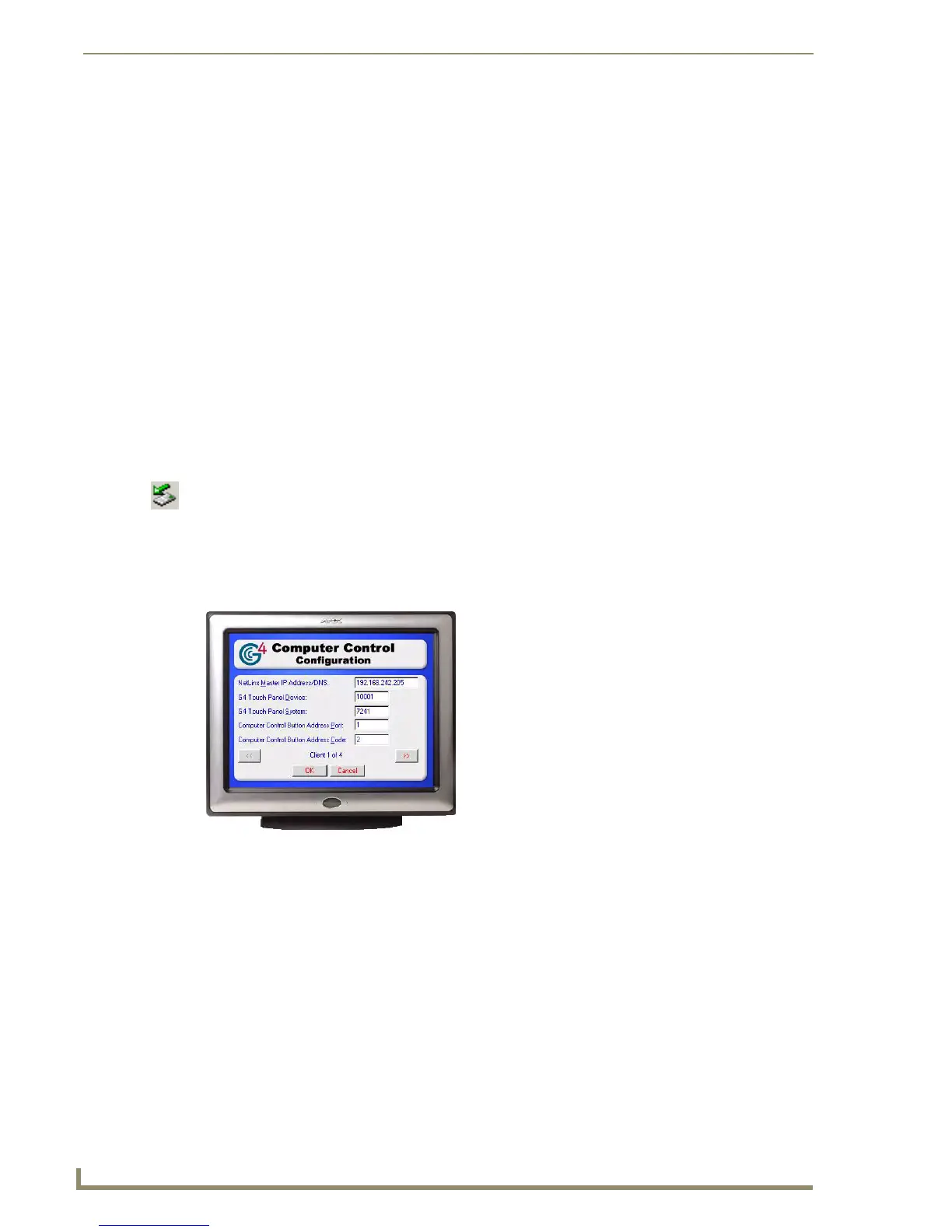

FIG. 93 G4 Computer Control Configuration Utility (configCC.exe)

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
