Working With the Resource Manager
196
TPDesign4 Touch Panel Design Software (v2.10 or higher)
 Connection: Use these options to specify the protocol and URL information.
 Refresh Rate: Use the up/down arrows to adjust the number of seconds between refreshes in
which the resource is downloaded again. Refreshing resources will cause the button
displaying that resource to refresh as well. The default value is 0, which means that the
resource is only downloaded once.
 Refresh only at Panel Startup: This option is only available if the Refresh Rate is set to zero,
and causes the dynamic image to refresh only upon restart of the panel, as opposed to upon
each visit to the page (as is the default).
Working With Dynamo Video
Dynamo is an extension of the Dynamic Images feature of AMX G4 devices.
With the growing popularity of Motion JPEG (or M-JPEG), streaming being adopted by leading
manufacturers of video equipment, DynaMo now enables the use of this technology in AMX systems.
The setup process is essentially identical to that for setting up other Dynamic Images. It includes three
easy steps:
1. Create a Dynamic Image in TPDesign4 project.
2. Create a General button the Dynamic Image will be displayed on.
3. Select the Dynamic Image in the button's Bitmap properties.
Setting Up a DynaMo Video Image
1.
In TPDesign4 software, create a new project (or open an existing project in which you would like to
add DynaMo video). Open Resource Manager, go to the Dynamic Images tab, and click on New to
create a new Dynamic Image (FIG. 86):
To allow other users to access the files via FTP without password protection, leave
the User and Password fields blank. The user must type either "Anonymous" or
"Guest" to access the specified FTP site.

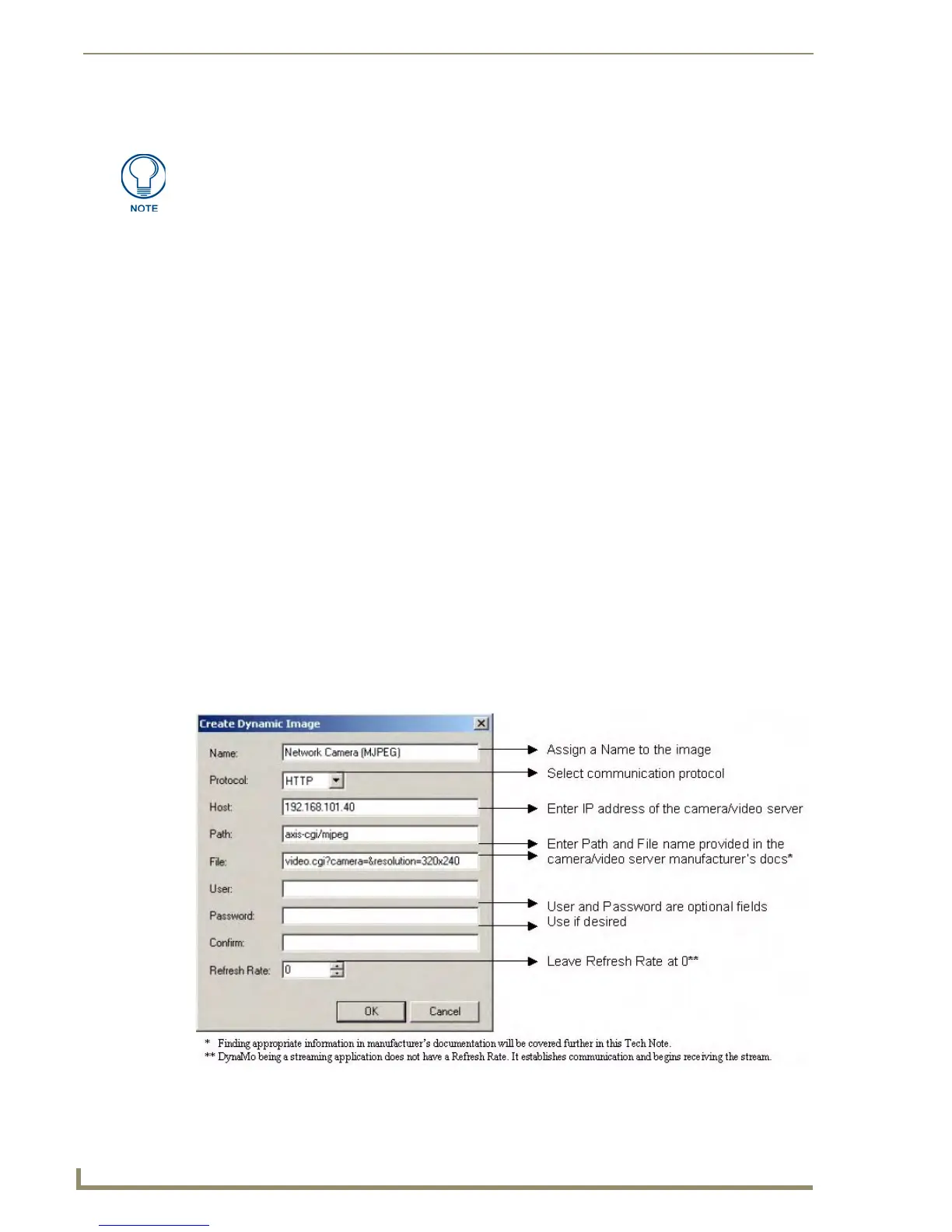

FIG. 86 Creating a Dynamic Image - Step 1

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
