Working With the Resource Manager
197
T
PDesign4 Touch Panel Design Software (v2.10 or higher)
2. Create a button (type General) in the interface that matches the output resolution of the camera/
video server (some cameras/servers support more than one output resolution - in this case, select
one that fits your application requirements/interface design).
3. Go to the States tab in Button Properties and select the Dynamic Image (in our case, "Network
Camera") created in Step I as Bitmap image for the target button created in Step 2.

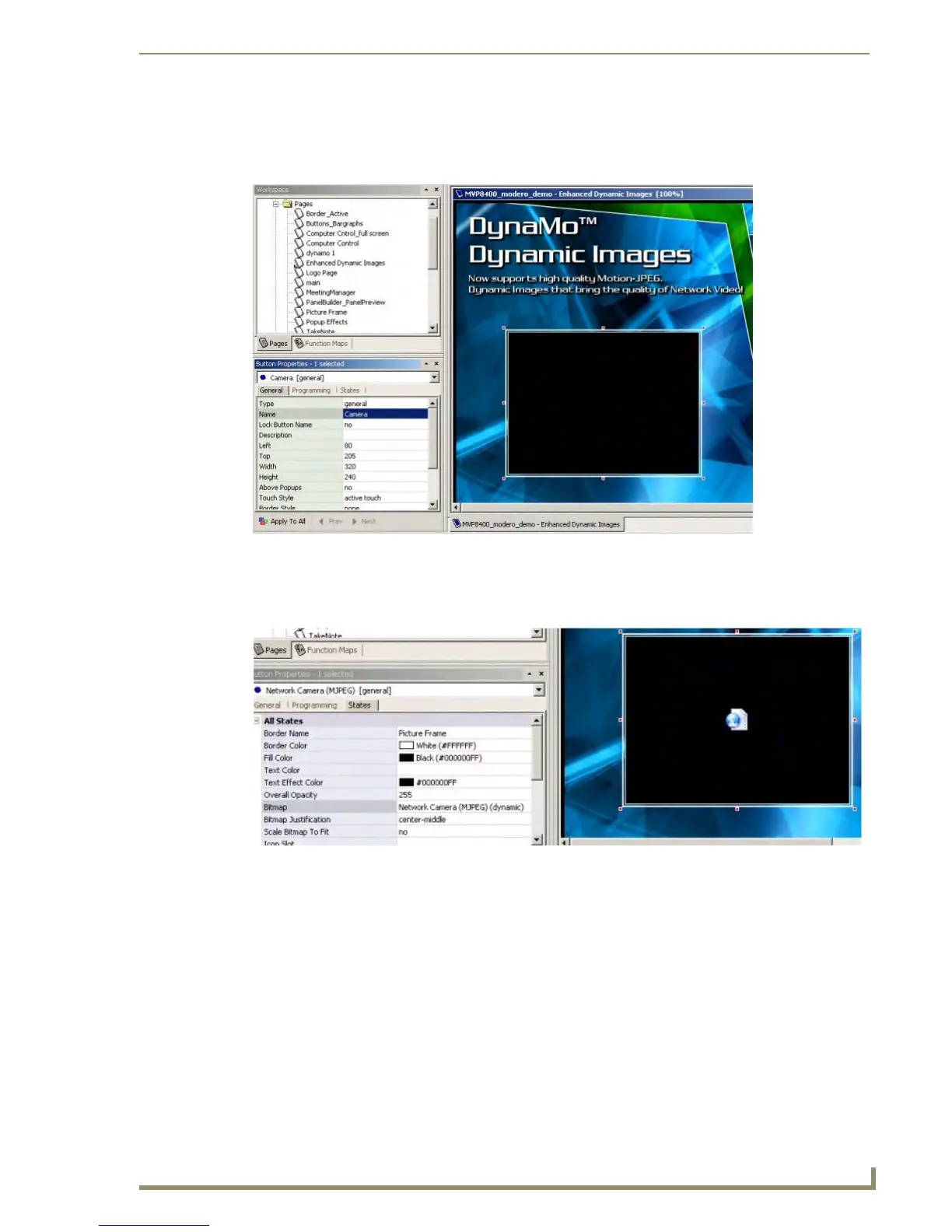

FIG. 87 Creating a Dynamic Image - Step 2
FIG. 88 Creating a Dynamic Image - Step 3

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
