PDesign4 Touch Panel Design Software (v2.10 or higher)
Project Properties dialog - Sensors tab
Use the options in the Sensors tab of the Project Properties dialog (FIG. 24) to view/edit Channel/Level
and Port settings for Light Sensors, Motion Sensors, Battery Levels and Cradle Sensors associated with
the active panel file.
The options in this tab include:

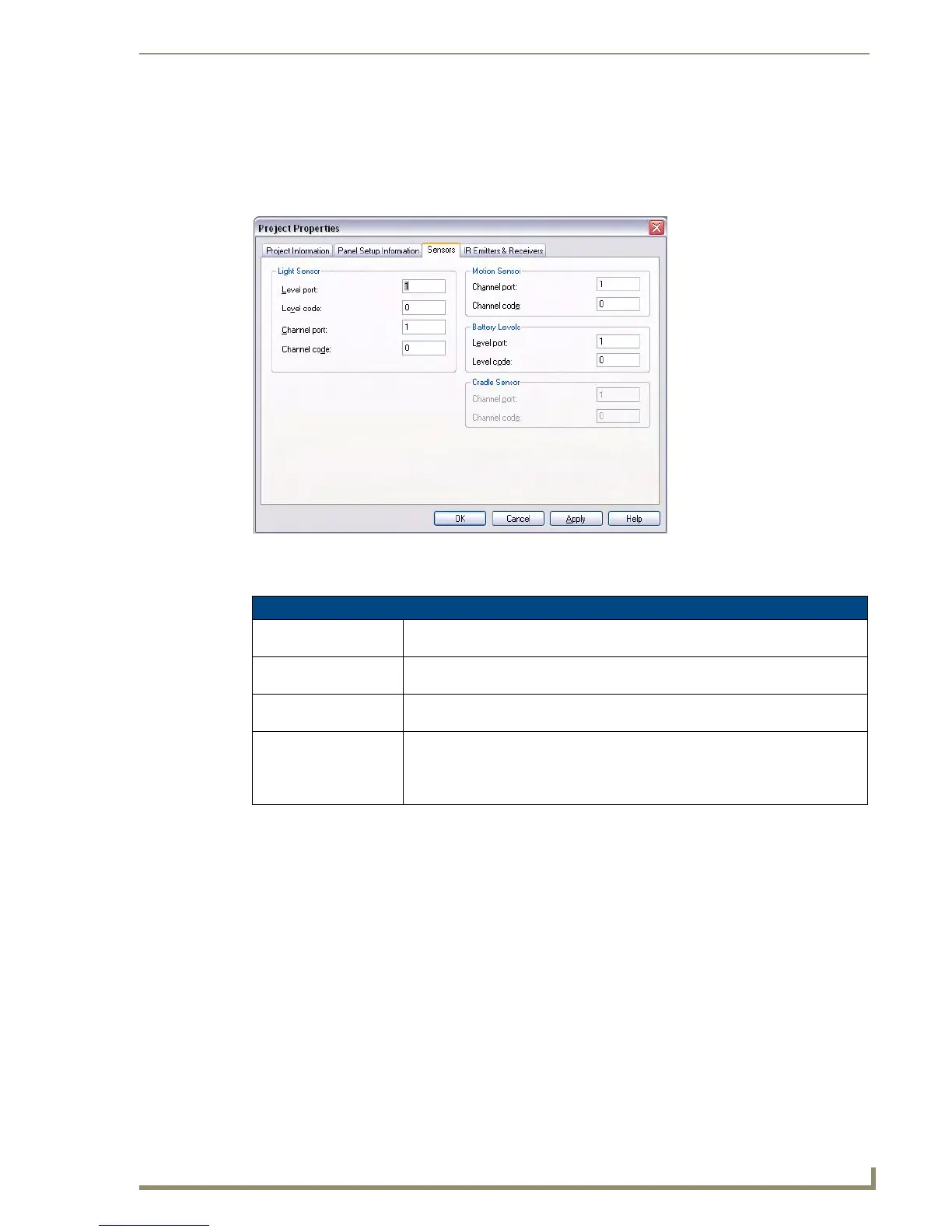

FIG. 24 Project Properties dialog - Sensors tab
Project Properties dialog - Sensors tab
• Light Sensor: Use these fields to specify the Level and Channel port/code assignments for the
on-board light sensor.
• Motion Sensor: Use these fields to specify the Channel port/code assignments for the on-board
motion sensor.
• Battery Levels: Use these fields to specify the Level port/code assignments for the on-board bat-
tery charger.
• Cradle Sensor
(MVP panels only):
Use these fields to set the Channel port/code assignments for the Cradle Sensor
on MVP panels. The channel will be turned on when the panel is docked (either in
the tabletop docking station or in the wall cradle).
Note: The cradle sensor uses the same device number as the MVP panel.

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
