AMX MIO-R4 User Manual

Working With Templates
180
TPDesign4 Touch Panel Design Software (v2.10 or higher)
 placeholderName - The name of the Placeholder element as it will appear in G4
PanelBuilder.
 pageName - The base page name that will be used in the generated TP4 project.
FIG. 83 shows an example implementation of a Placeholder element, as seen in the "graphiclySound-
Orange" template, available from AMX.
FIG. 84 shows an example Placeholder page in the Workspace Window:

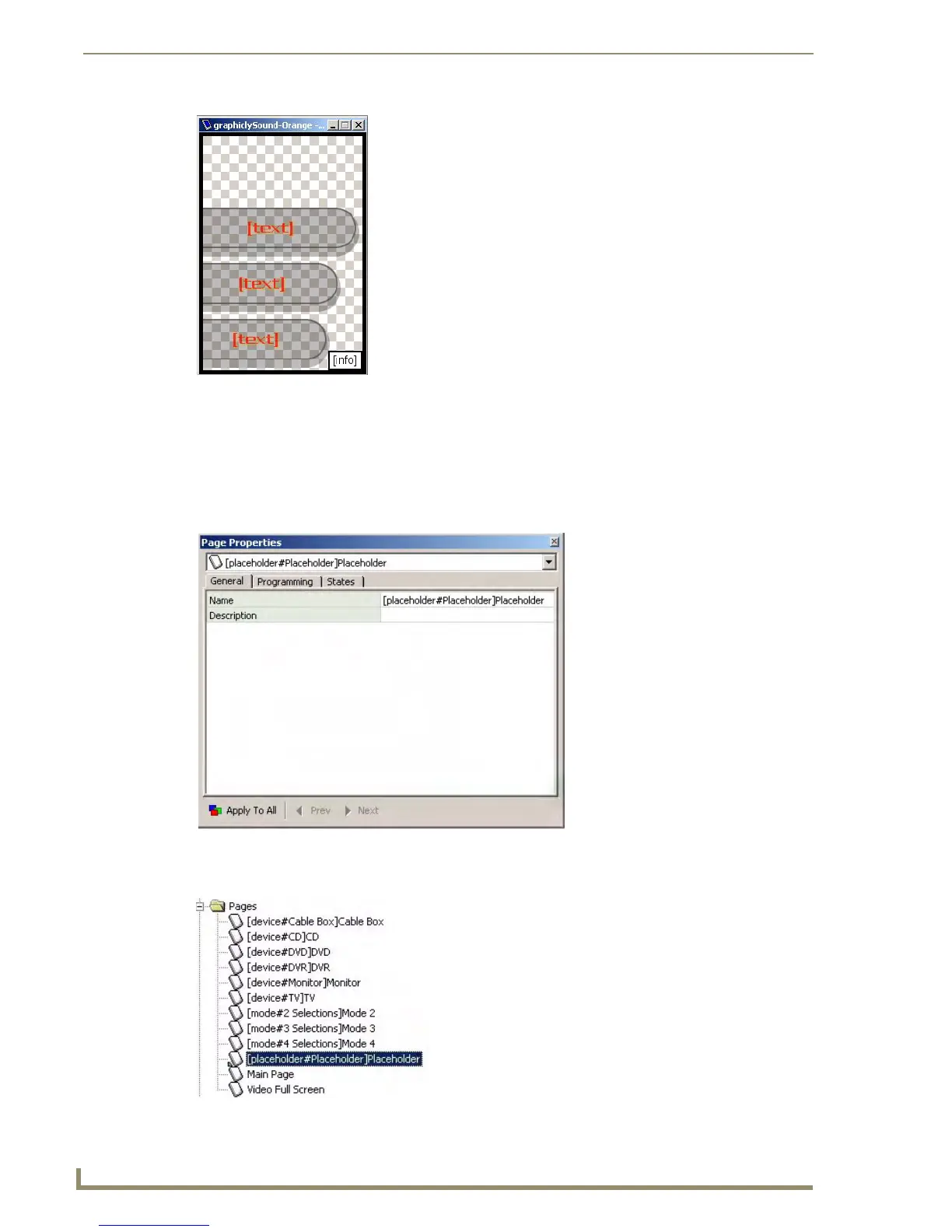

FIG. 82 Example Navigation popup
FIG. 83 Example (General) properties for a Placeholder page
FIG. 84 Example Placeholder page in the Workspace Window

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
