Benelli TRK 502 Service Station Manual

5 - 67

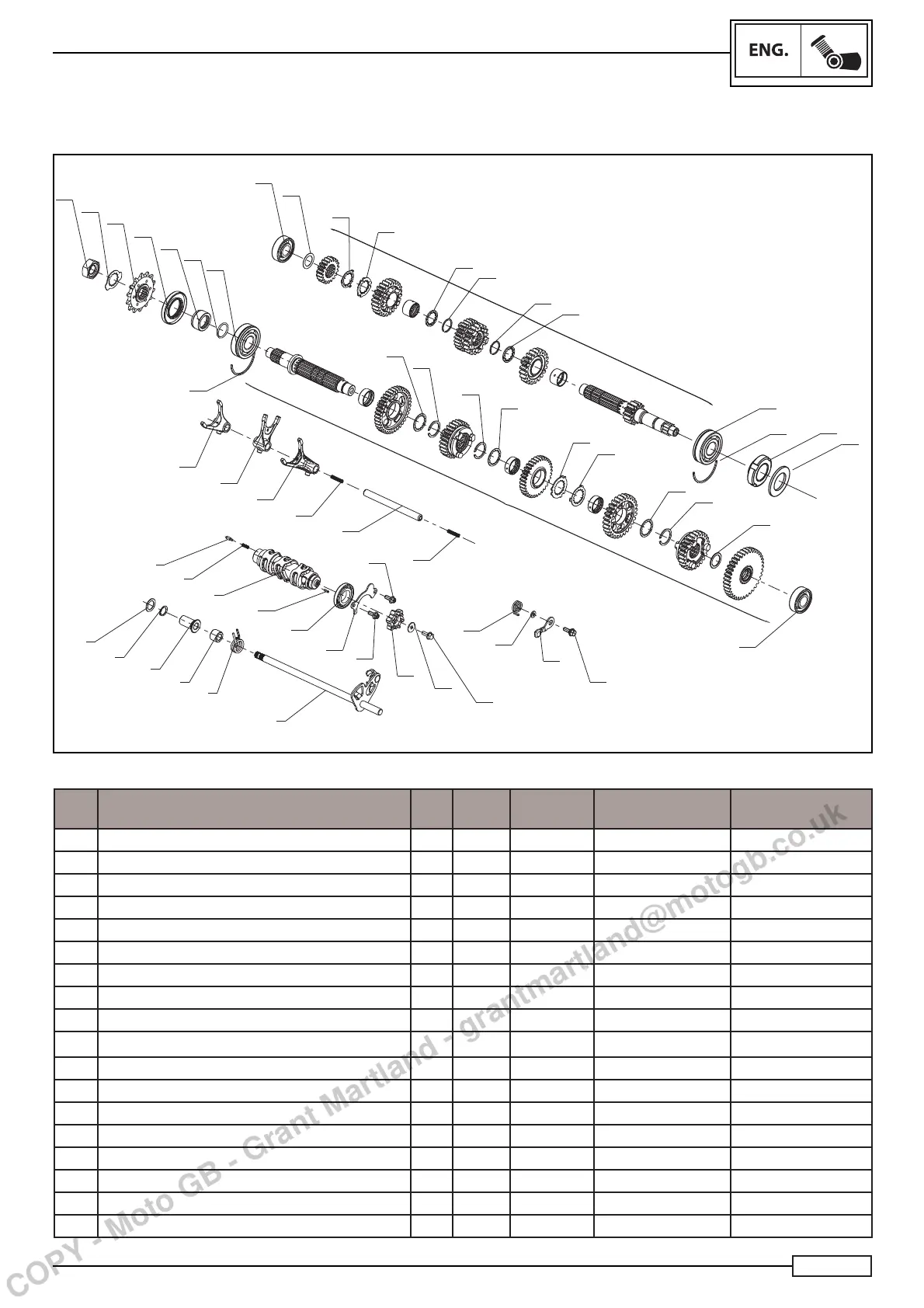

GEAR BOX
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
32
34
36
36
37
37
37
38
38
38
39
39
41
42
43
44
35
35
46
47
40
33
48
45
Pos. Description Qty. SQ. SYMBOLS
INTERVENTION
DESCRIPTION
REMARKS
1 SELECTOR SHAFT
2 STOP SPRING
3 SHIM
4 BUSHING
5 SEEGER RING
6 SCRAPING
7 PLUG
8 SPRING
9 DESMODROMIC
10
PIN
11 BEARING
12 PLATE
13 SCREW
14 GEAR DRUM
15 WASHER
16 SCREW
17 SCREW
18 GEAR FIXING CLICK ASSEMBLY
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
