Benelli TRK 502 Service Station Manual

ELE. - 58

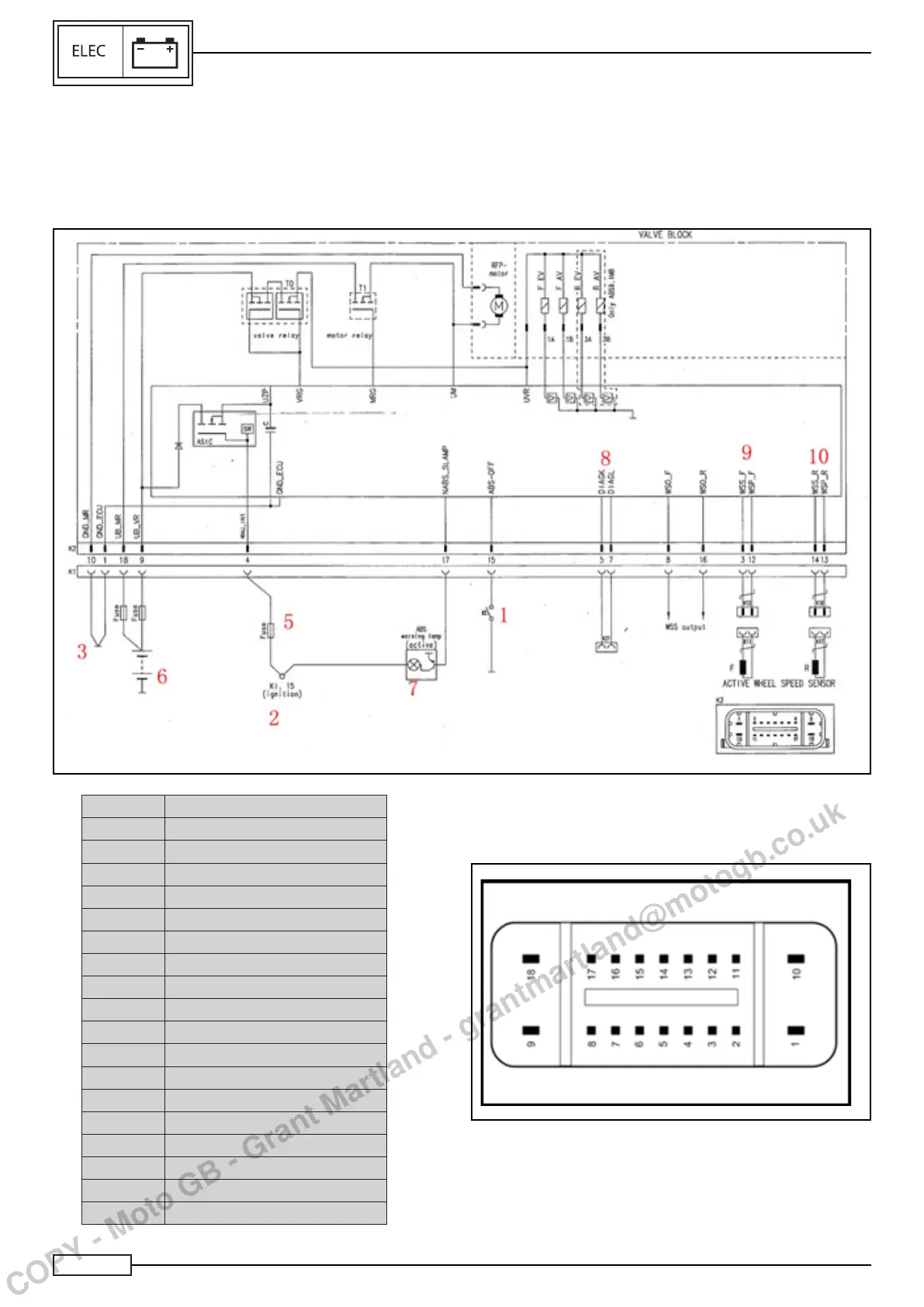

ACTUATORS
ABS ECU
Diagram
Position Code
1 GND_ECU
2 CAN1P
3 WSS_F
4 WAU_IN1
5 DIAGK
6 BLS - input_PD -SW2H_NO
7 DIAGL
8 WSO_F
9 UB_VR
10 GND_MR
11 CAN1M
12 WSP_F
13 WSP_R
14 WSS_R
15 ABS_OFF -input_PU - SW2L_NO
16 WSO_R
17 NABS_SLAMP
18 UB_MR
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
