Park the motorcycle on a level surface.
IMPORTANT NOTICE
Prop the motorcycle on suitable supports so that it cannot
fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.
• Tank fairing, see chapter entitled “Removal of tank fairing,
Chapter 4”.
• Tank, see chapter “Fuel tank removal, Chapter 4”.

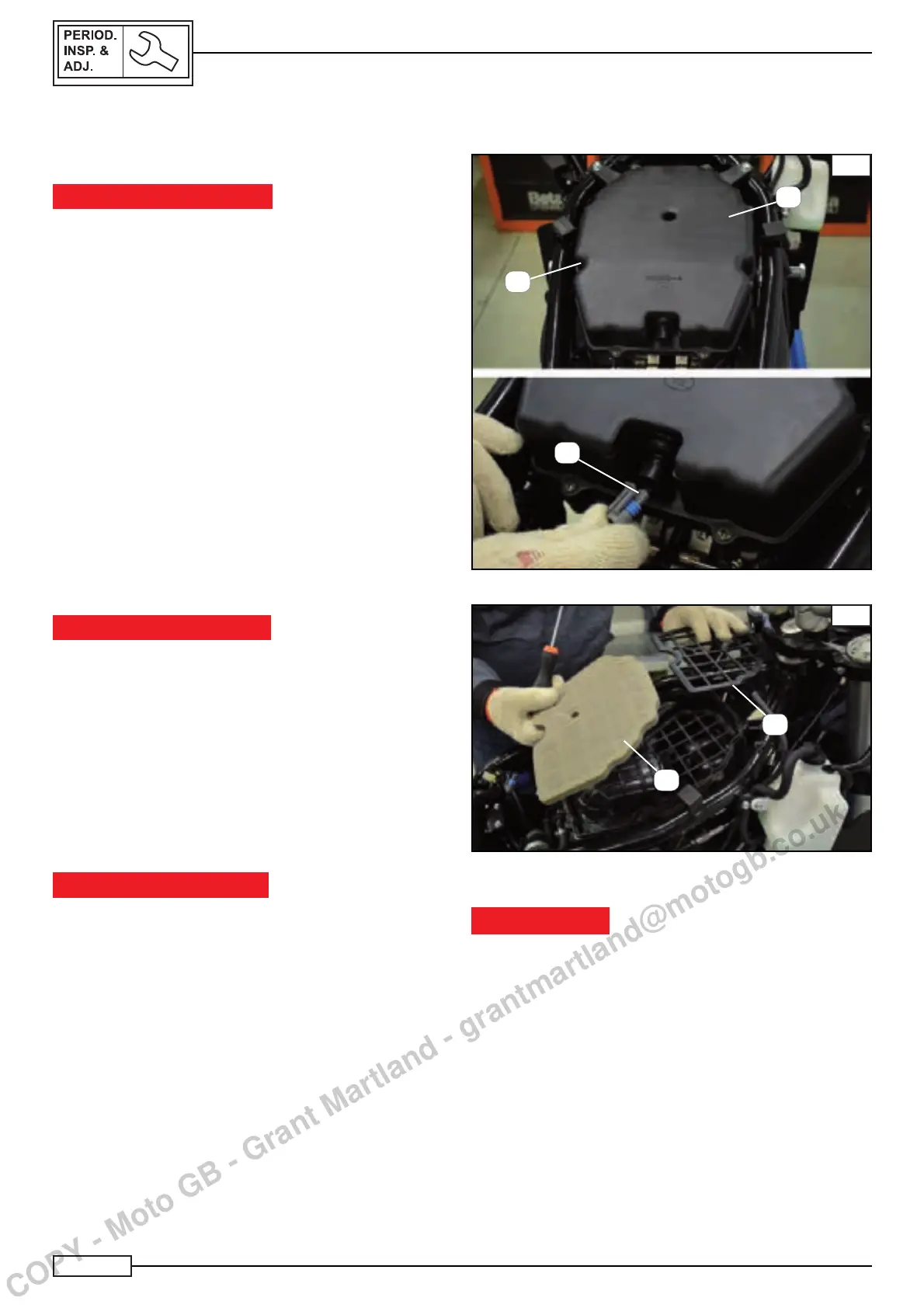

• the screws (1) Fig. A
• the cover (2) Fig. A
Disconnect:
• the connector (3) from the cover Fig. A
Remove:
• the protective mesh (4) Fig. B
• the air fi lter element (5) Fig. B
1.
IMPORTANT NOTICE
Replace the air fi lter element every 12,000 km (7,456 mi)
When using the vehicle in particularly humid climates or in
very dusty areas, it is necessary to maintain the air fi lter ele-
ment more frequently.
Check:
If the air fi lter element is faulty, replace or wash it:
1. Wash the element using specifi c solvents.
2. Air dry.
3. Apply a specifi c oil on the whole surface of the air fi lter
element.
IMPORTANT NOTICE
Before installing the air fi lter element of the air box, remove
the excess oil, making sure it does not drip any longer.
Install:
1. During the installation stage, proceed in the opposite direc-
tion to above described removal.
ENGINE/AIR BOX
REMOVAL/ASSEMBLY OF AIR BOX
A
1
3
B
4
5
2
WARNING
Never start the engine without having installed the air fi lter
element fi rst. The unfi ltered air causes a quick wear of the
engine parts and might damage the engine. Furthermore, us-
ing the engine without air fi lter, setting of the throttle bodies
is affected, causing a worsening of engine performance, as
well as its overheating.
Therefore, make sure the air fi lter is always in good working
order.
The engine life depends mainly on this part.
