Benelli TRK 502 Service Station Manual

3 - 11
ENGINE/THROTTLE CABLE CLEARANCE
ADJUSTMENT OF THROTTLE CABLE CLEARANCE
ABS
37

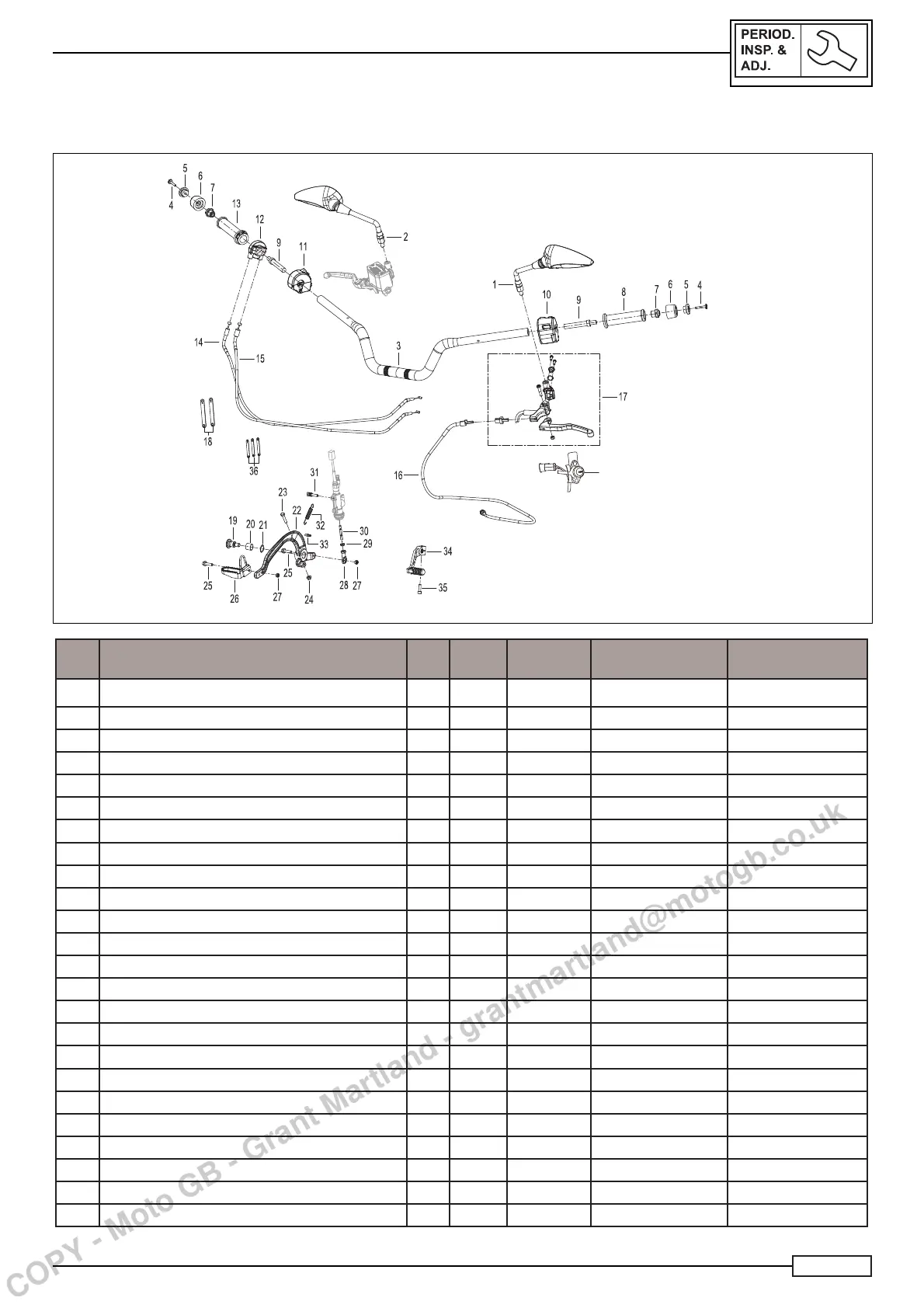

Pos. Description Qty Sq. SYMBOLS
CONTENTS
DESCRIPTION
REMARKS
1
LEFT VIEW MIRROR
2 RIGHT VIEW MIRROR
3 HANDLEBAR
4 SCREW
5 GRIP CAP
6 GRIP END
7 THREADED INSERT
8 LEFT HANDGRIP
9 THREADED INSERT
10 LEFT LIGHT SWITCH
11 RIGHT LIGHT SWITCH
12 ACCELERATOR CONTROL
13 ACCELERATOR CONTROL PIPE
14 FUEL OPEN CABLE
15 FUEL CLOSE CABLE
16 CLUTCH CABLE
17 CLUTCH CONTROL
18 RUBBER BAND
19 SCREW
20 BUSHING
21 ELASTIC WASHER
22 BRAKE PEDAL CONTROL
23 SCREW
24 NUT
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
