Benelli TRK 502 Service Station Manual

3 - 46

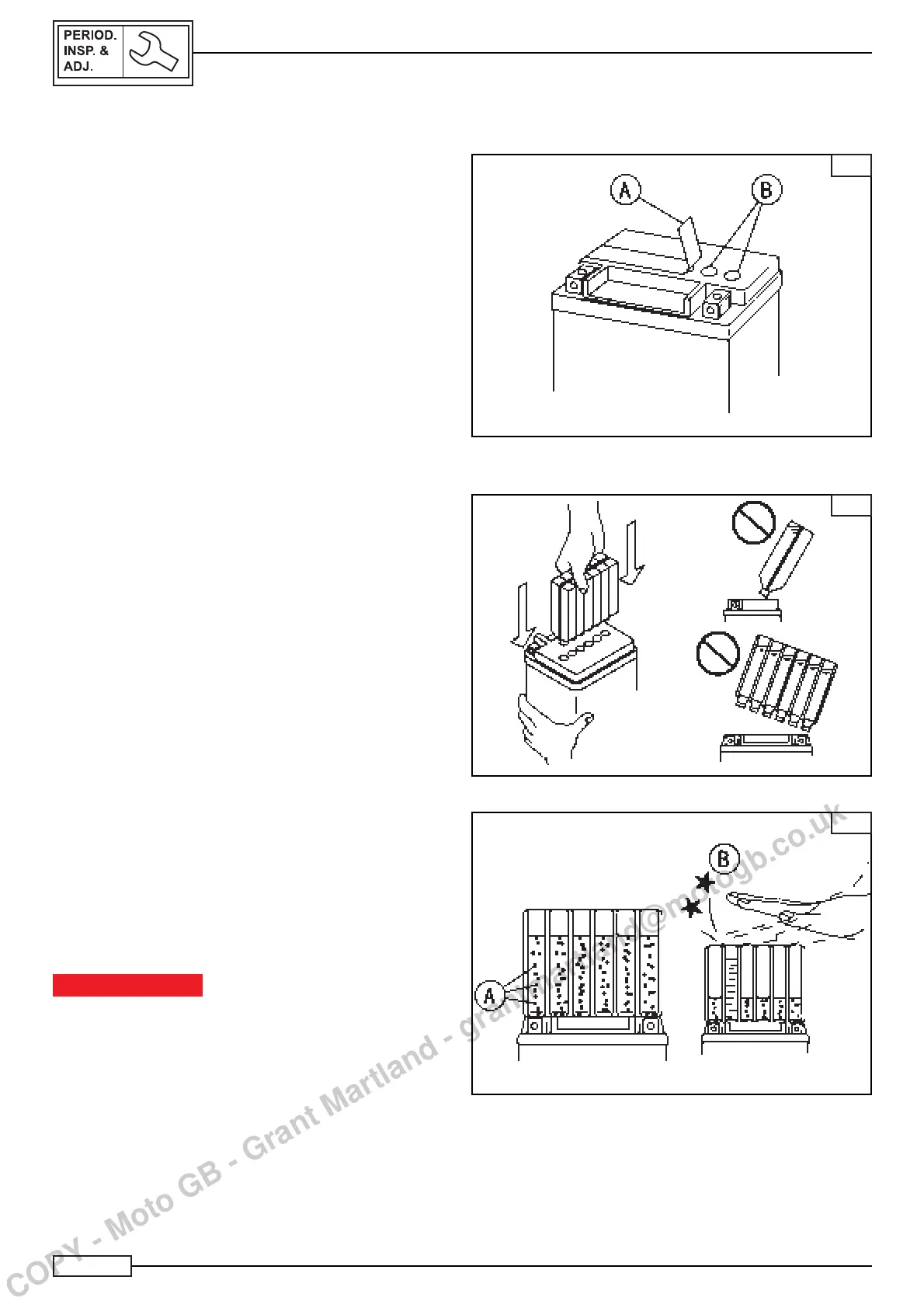

• Take the electrolyte bottle away from vinyl bag.
• Detach the strip of caps [A] from the bottle and store it for
seal the battery subsequently, Fig. A.
NOTE:__________________________________________
Do not puncture or open the sealed cells [B] of the electro-
lyte bottle. Do not try to divide the single cells.
• Topple the electrolyte bottle by aligning the six sealed cells
to the fi lling ports of battery. By keeping the bottle in hori-
zontal position, push downwards to break the seals of the
six cells. During fi lling, some air bubbles will go up to each
cells Fig. B.
NOTE:__________________________________________
Do not tilt the electrolyte bottle.
• Check the electrolyte fl ow.
• If there are no air bubbles [A](*) that go up through the fi lling
ports or the cells do not fi
ll completely, tap the bottle [B]
some times, Fig. C.
NOTE:__________________________________________
Ba careful to prevent the battery from falling.
• Leave the bottle in its place. Do not remove the bottle from
the battery, since it is necessary that all electrolyte passes
into the battery for its proper operation.
WARNING
The removal of the bottle before it is completely empty may
reduce the technical life of the battery.
Do no remove the container until it is completely empty.
• After fi lling, leave the battery to rest with the electrolyte bot-
tle in its place for 20-60 minutes so that the electrolyte can
permeate deeply into the plates.
• Check the bottle cells are completely empty and remove the
bottle from the battery.
A
B
C
ELECTRICAL SYSTEM
BATTERY CHECK AND CHARGING
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
