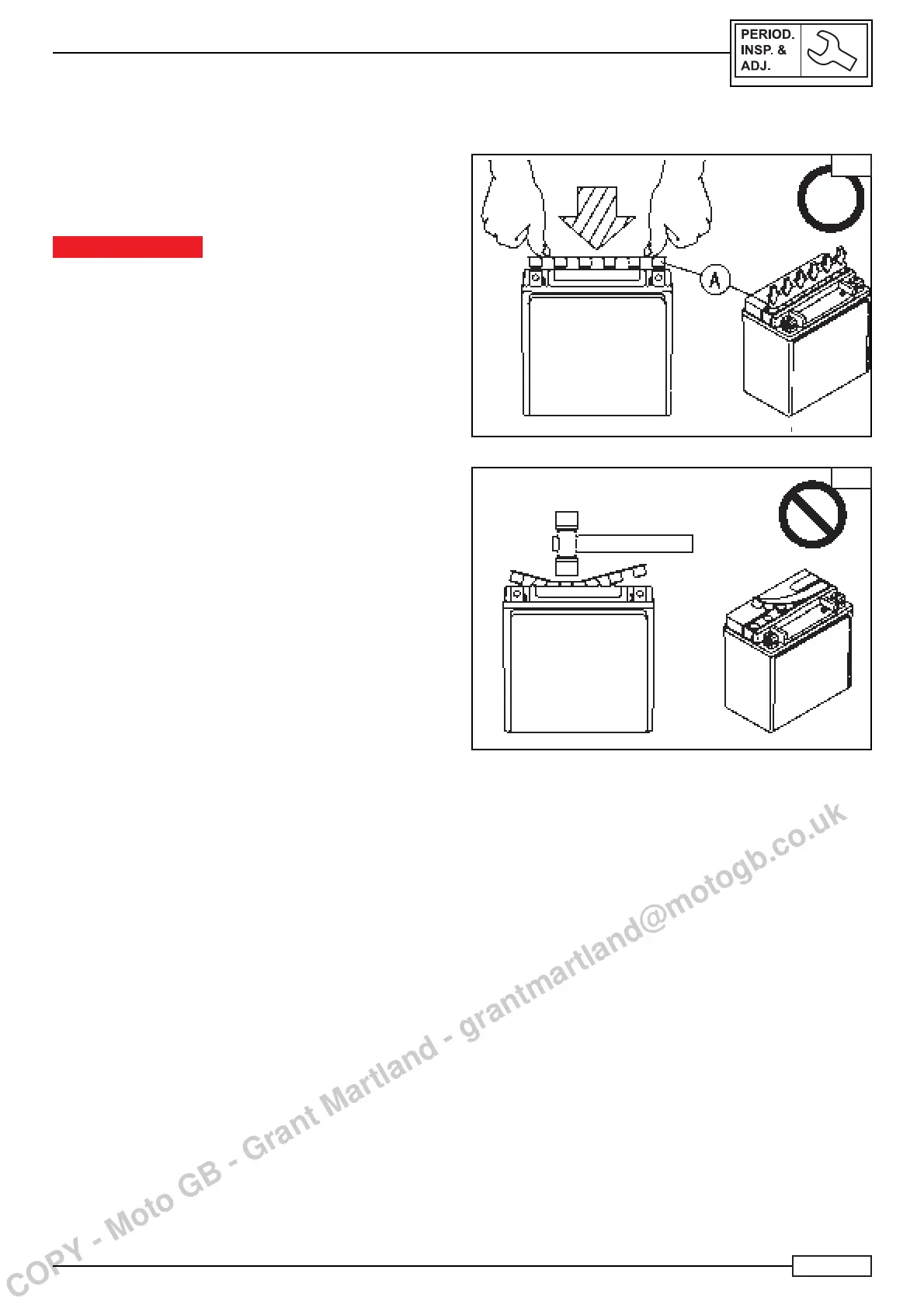

• Place the strip of caps [A] on the fi lling ports and press
strongly with both hands to insert them into the battery Fig.
D (without tapping) Fig. E. If properly installed, the cap strip
will be aligned with the battery top.
WARNING
After installation of the cap strip, do not remove the caps and
do not add water/electrolyte into battery.
NOTE:__________________________________________
Charging immediately after fi lling may reduce the technical
life of the battery.
Initial Charge
The sealed battery just supplied require initial
charge.
Use a constant voltage battery charger.
Standard charge: 0.9 A × 5 – 10 hours
• After the initial charge, let the battery stand for 30 minutes,
and then check the voltage with a voltmeter. (The voltage
is temporarily high immediately after charge. For a precise
measurement, leave the battery to rest for the fi xed period
of time).
NOTE:__________________________________________
• The charging values change according to the storage
duration, the temperature and the type of battery charger
used. If the voltage does not reach at least 12.6V, repeat
the charging cycle.
• In order to ensure the biggest battery life and the utmost
customer’s satisfaction, it is suggested to perform 15s
load testing under the three times of ampere hour rate.
Recheck the voltage and repeat the charging cycle and
load test if the voltage is less than 12.6V. If the voltage is
still below 12.6V, the battery is defective.
