3-2

Confidential

2. PACKING

 Machine

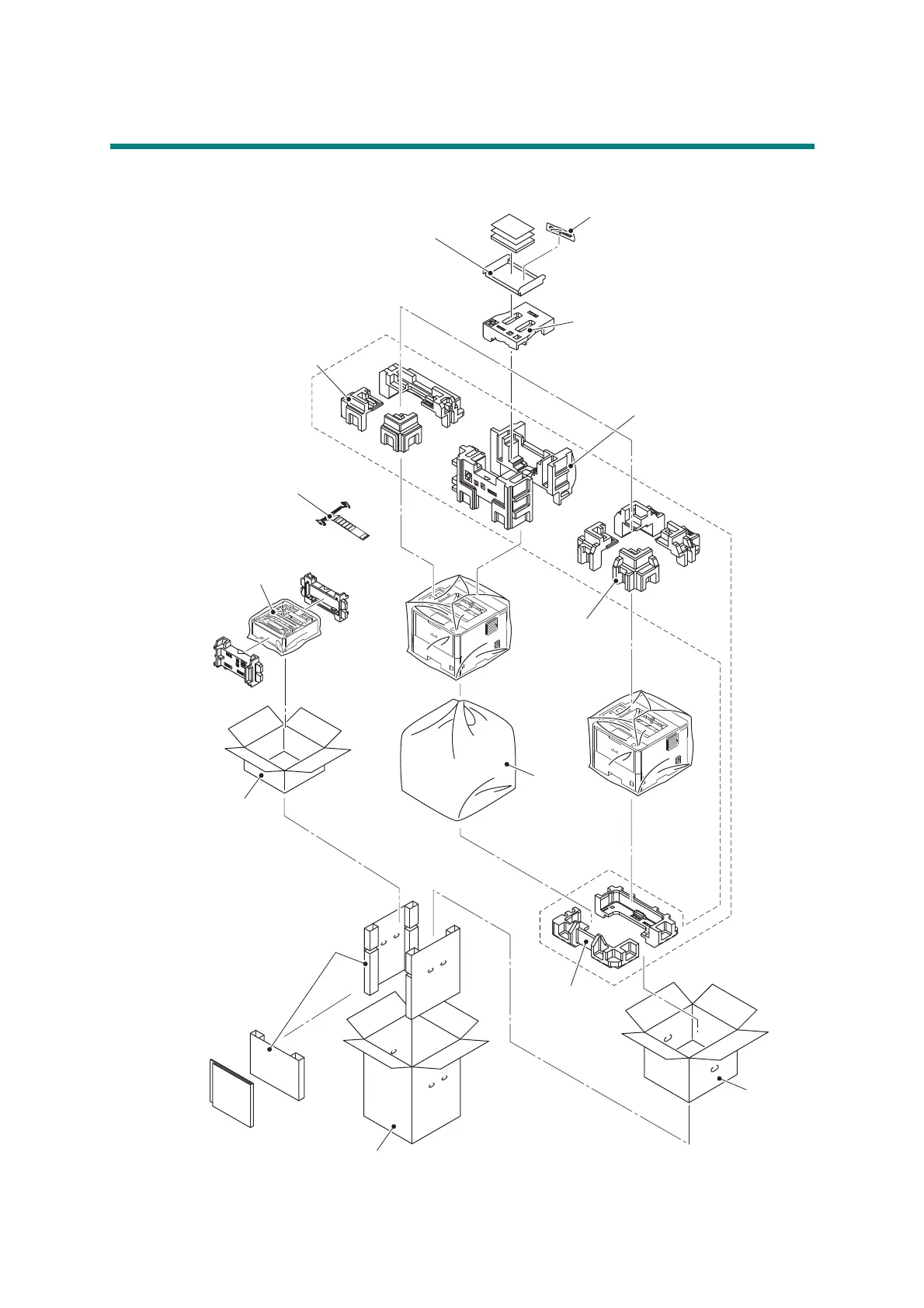

Fig. 3-1

USB cable

Toner pad

Option carton

Polystyrene pad ASSY

Polystyrene pad ASSY

Polystyrene pad

ASSY

Bag

Polystyrene

pad ASSY

Carton

Carton outer

Bundle spacer

Carton

LT

Protective material ASSY
