3-75

Confidential

9.17 Main fan

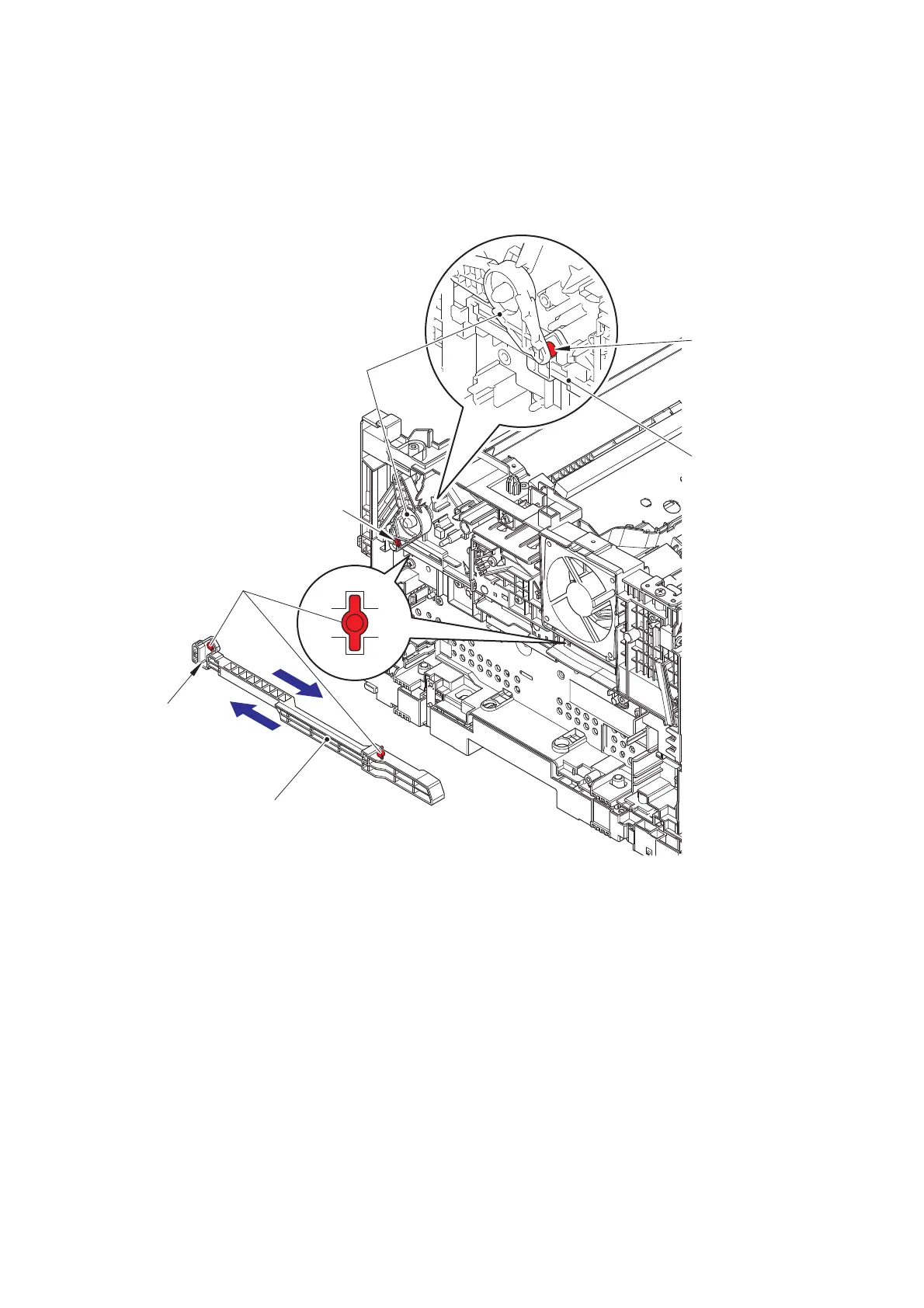

(1) Slide the straight cam in the direction of the arrow 1a to remove the boss on the nip

release link from the groove on the straight cam. Slide the straight cam in the direction of

the arrow 1b to remove it by engaging "A" with the groove.

Fig. 3-64

Straight cam

Boss

Straight cam

Groove

Nip release link

1b

1a

Boss

"A"
