9.2 Paper tray
(1) Release the two hooks on the separation pad ASSY from the paper tray.
(2) Push both side arms on the separation pad ASSY inwards to remove the pins, and
remove the separation pad ASSY from the paper tray.
(3) Remove the separation pad spring from the separation pad ASSY.

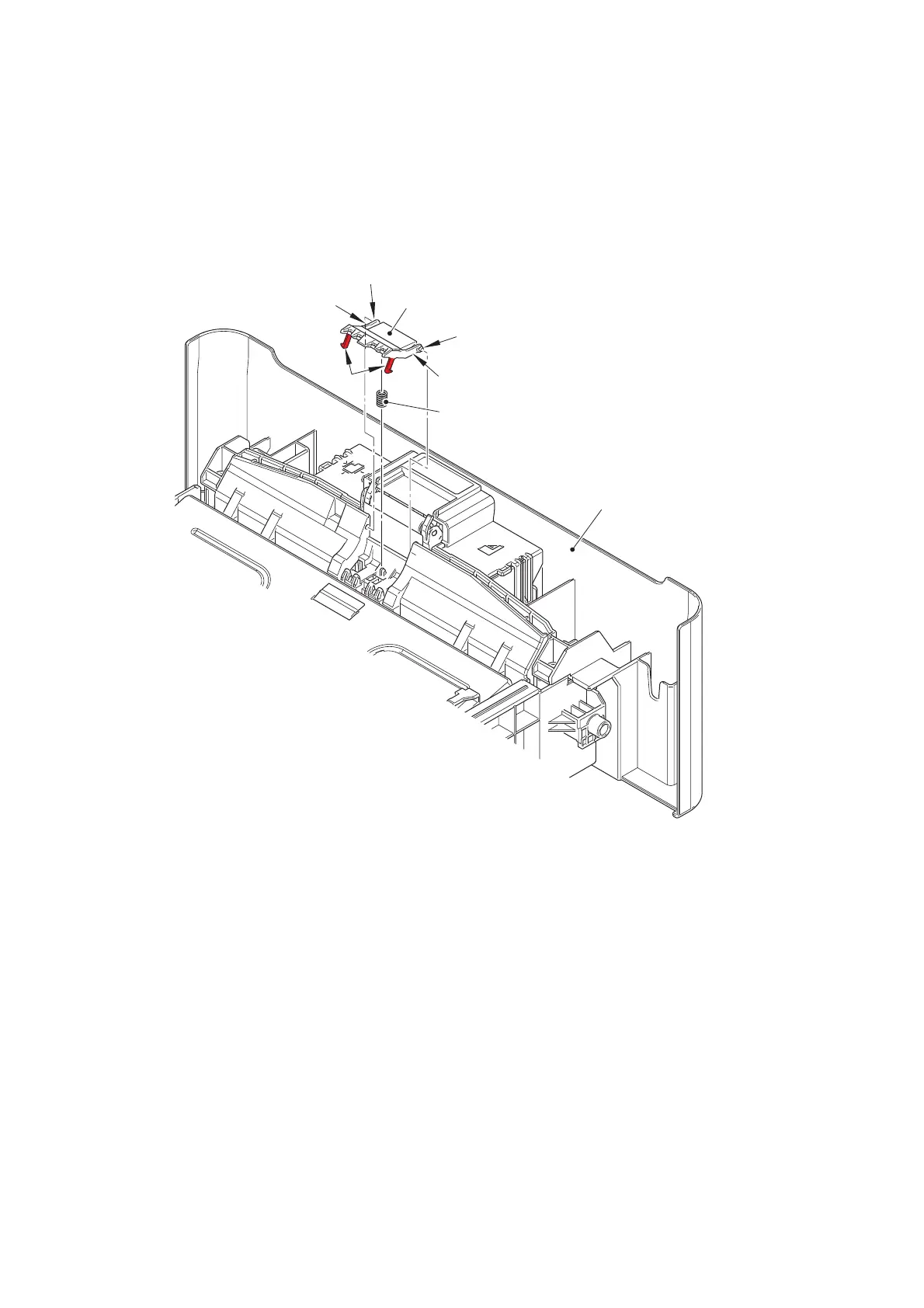

Fig. 3-17
Separation pad ASSY
Arm
Separation pad spring
Paper tray
Arm
Pin
Pin
Hooks
