3-173

Confidential

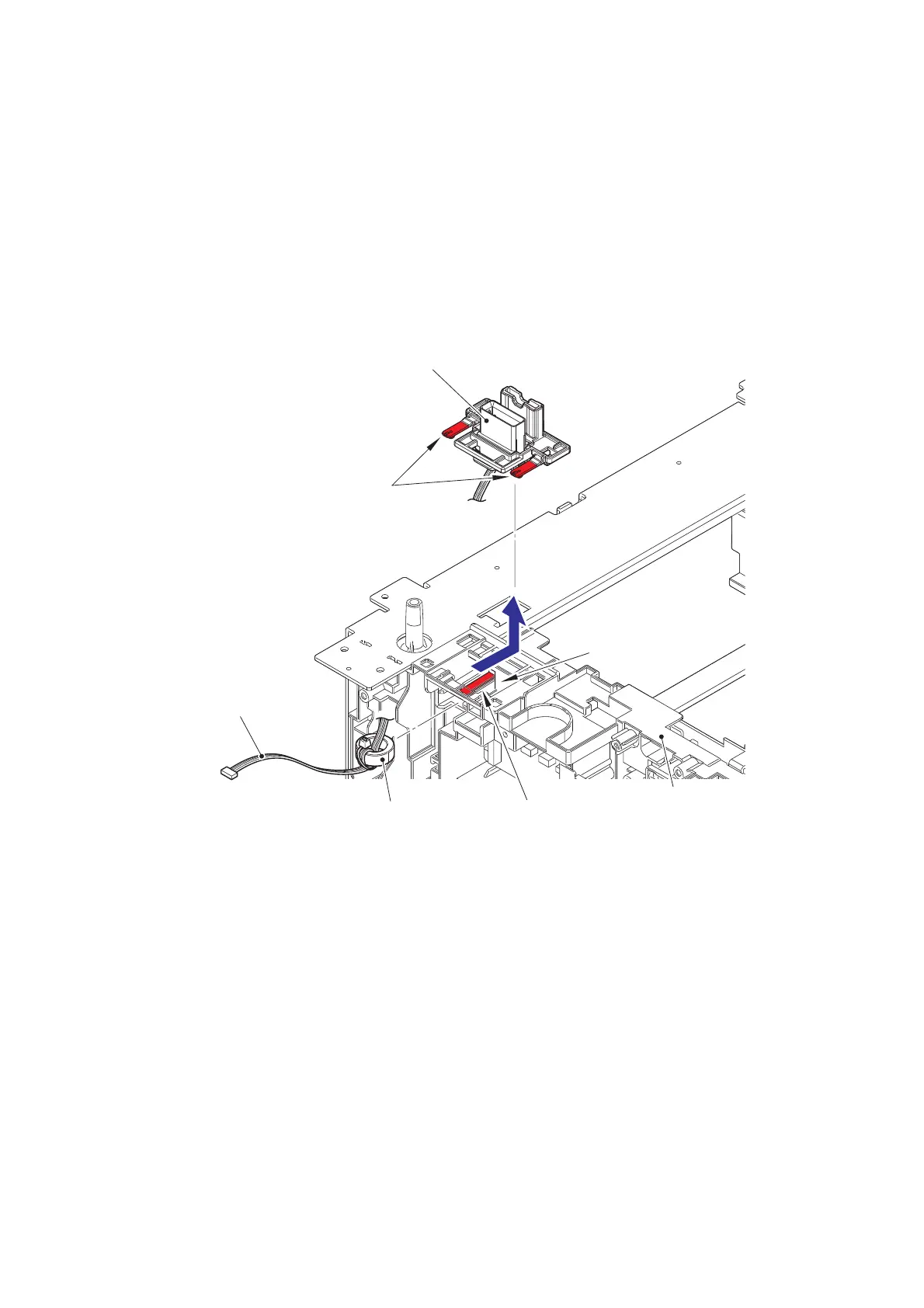

12.14 LT/TT connector ASSY (T2TT only)

(1) Release the LT/TT connector harness from the securing fixtures.

(2) Release the hook A to remove the ferrite core.

(3) Release the two hooks B, and slide the LT/TT connector ASSY in the direction of the

arrow to remove it. Pull out the LT/TT connector harness through the frame L hole.

Fig. 3-170

Harness routing: Refer to “13. Left side of the TT”.

Hook A

LT/TT connector ASSY

LT/TT connector harness

Hooks B

Ferrite core

Hole

Frame L
