12.5 TT control PCB ASSY

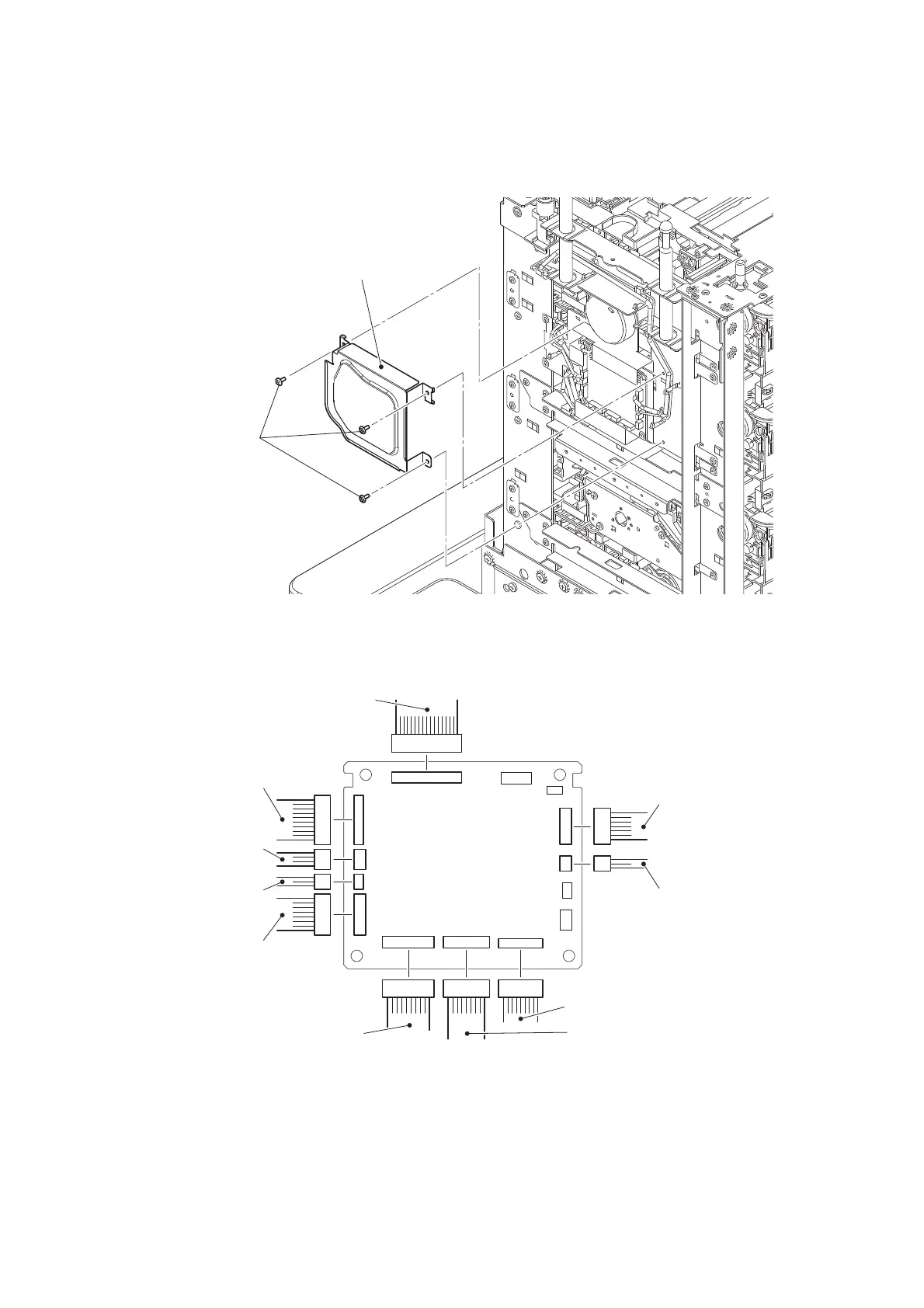

(1) Remove the three screw cup M3x8 (black) screws to remove the PCB cover plate.

Fig. 3-151

(2) Disconnect all harnesses connected to the TT control PCB ASSY.

Fig. 3-152

Screw cup M3x8

(black)

PCB cover plate

TT motor harness

Low-voltage power

supply harness

T2TT relay harness

T3TT relay harness

TT balance sensor R

Fan motor harness

T5TT relay harness

T4TT relay harness

TT balance sensor L

LT/TT connector harness
