12.17 TT release clutch (Common to all TT)

(1) Remove the two taptite cup S M3x8 SR screws to remove the TT ground plate.

(2) Remove the two taptite bind B M4x12 screws to remove the front under bar.

(3) Remove the taptite cup S M3x8 SR screw to remove the under bar ground plate L.

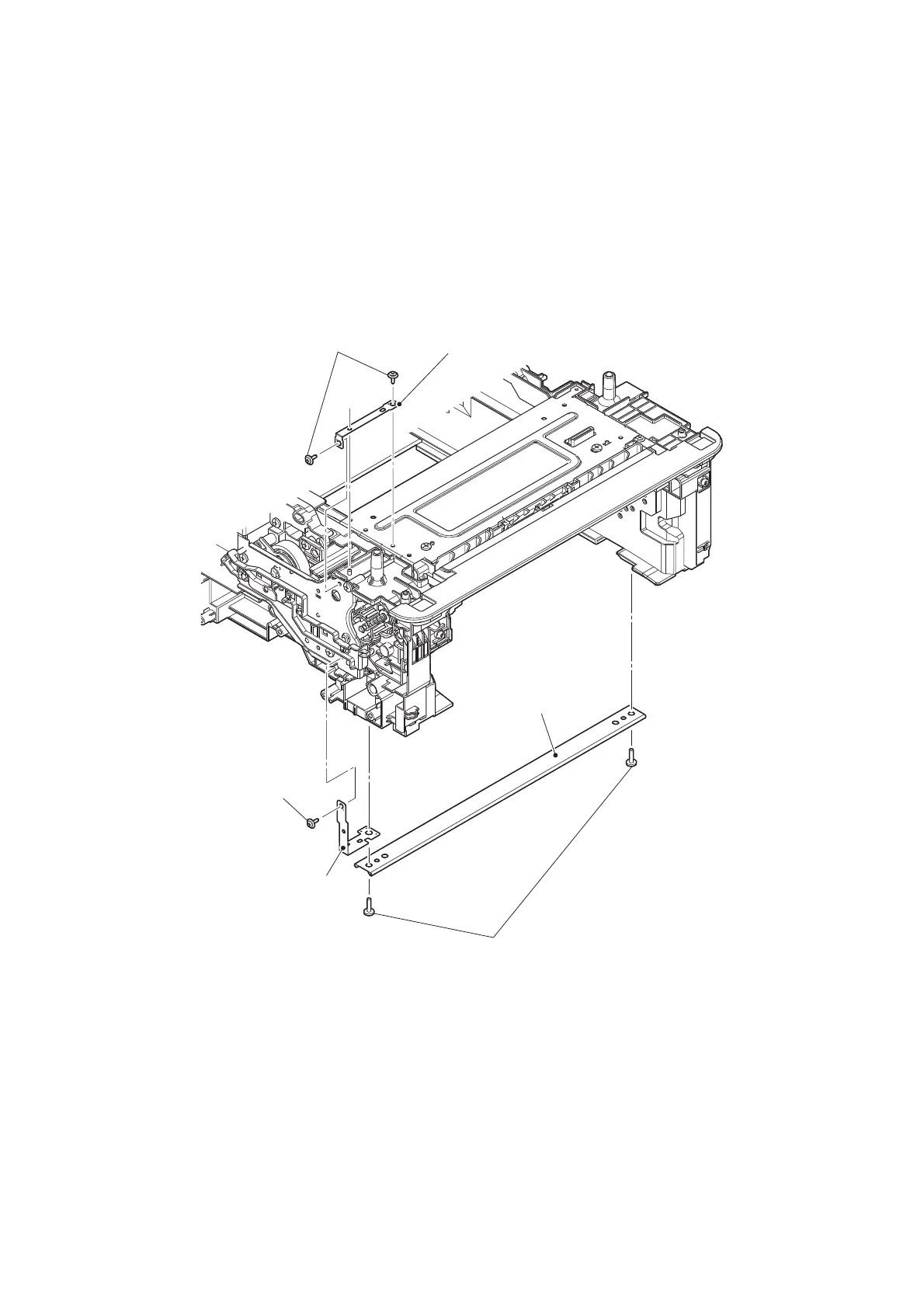

Fig. 3-175

TT ground plate

Taptite cup S M3x8 SR

Under bar

Taptite bind B M4x12

Taptite cup S M3x8 SR

Under bar ground plate L
