3-140

Confidential

11.7 MX motor

(1) Remove the two taptite bind B M4x12 screws, and remove the MX motor drive ASSY.

(2) Remove the compression spring from the feed roller bush MX.

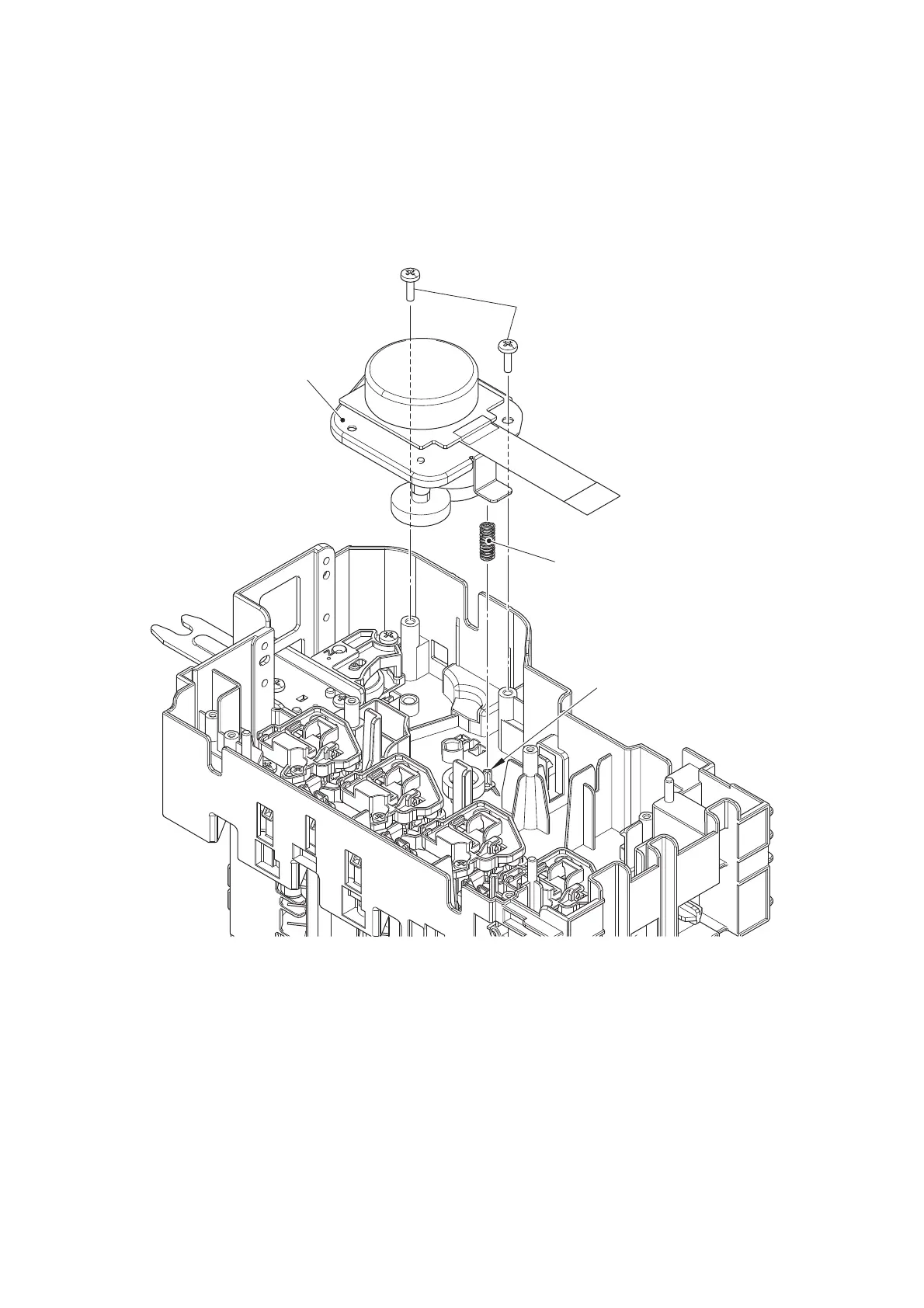

Fig. 3-132

Harness routing: Refer to “9. Left side of the MX (MX control PCB)”.

Taptite bind B M4x12

MX motor drive ASSY

Compression spring

Feed roller bush MX
