11.11 Feed roller ASSY lower MX

(1) Remove the three taptite bind B M4x12 screws, and remove the arm L MX from the

frame L ASSY MX.

(2) Remove the taptite bind B M4x12 screw. Remove the gear holder MX, the pendulum

gear Z30M08 MX and the pendulum gear bush from the frame L ASSY MX.

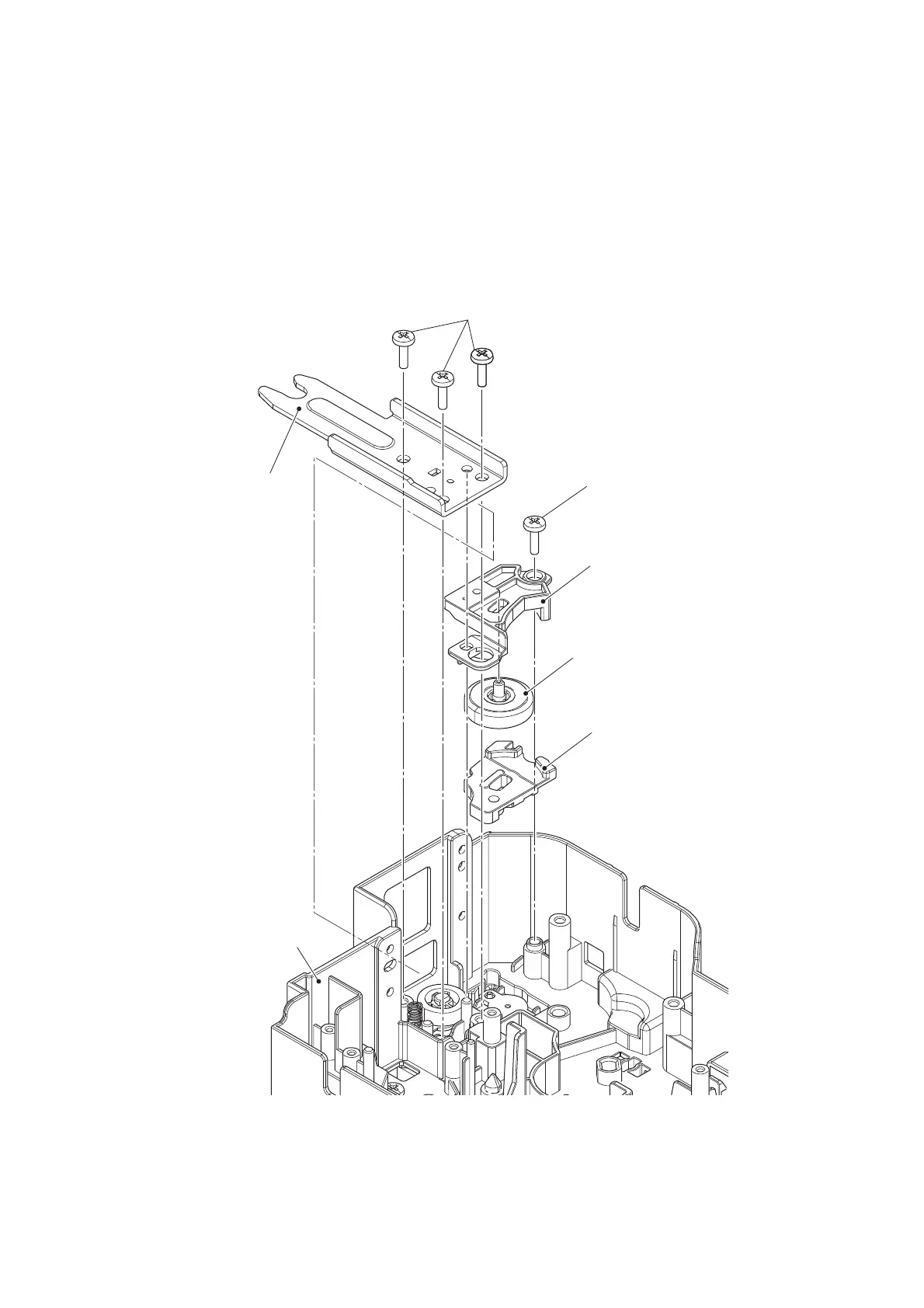

Fig. 3-140

Taptite bind B M4x12

Arm L MX

Taptite bind B M4x12

Gear holder MX

Pendulum gear Z30M08

Pendulum gear bush

Frame L ASSY MX
