3-99

Confidential

9.34 Eject sensor PCB ASSY

(1) Release the eject sensor harness from the securing fixtures.

(2) Release the hook, and remove the eject sensor PCB ASSY.

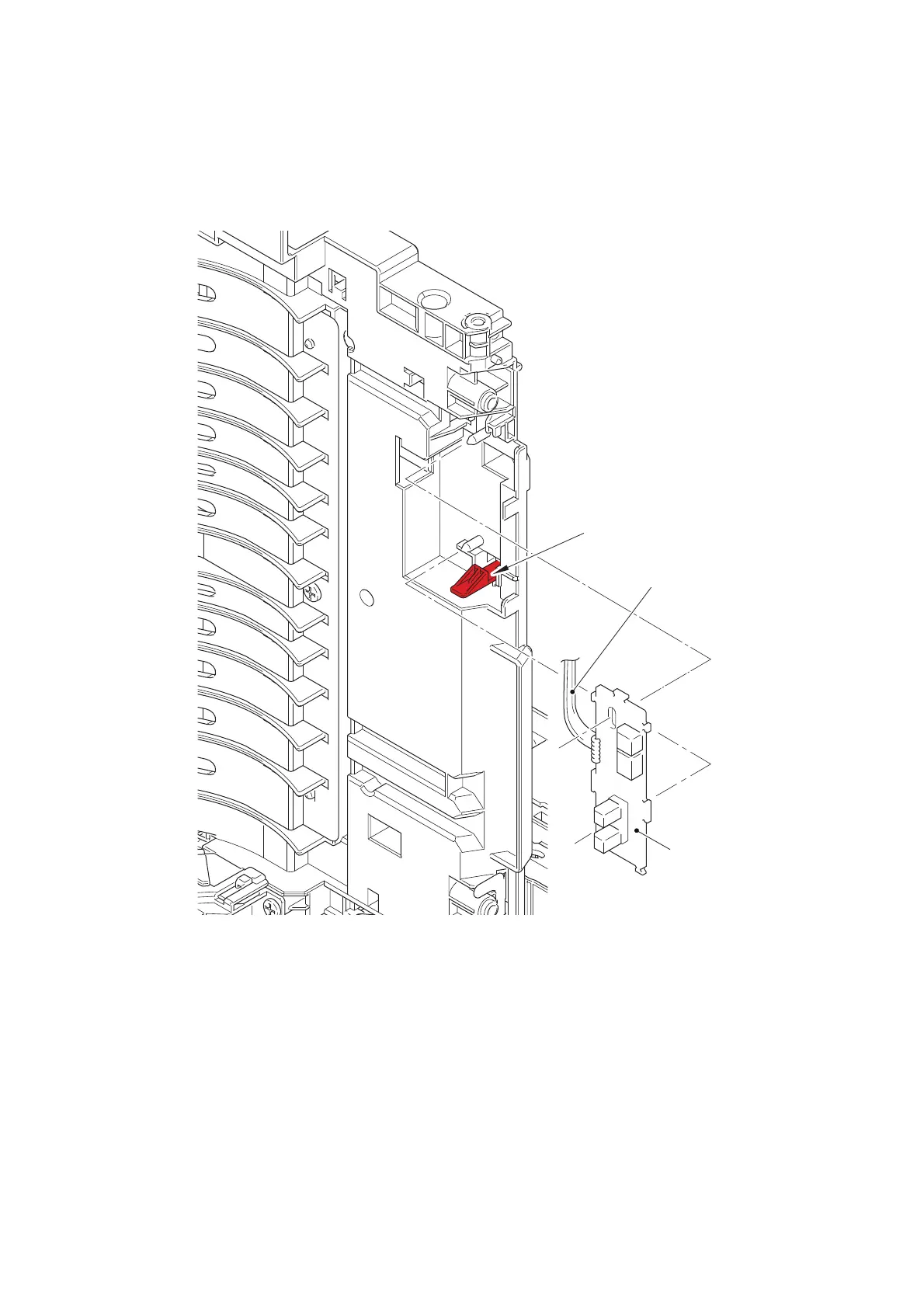

Fig. 3-89

Harness routing: Refer to “7. Bottom side of the machine”.

Eject sensor PCB ASSY

Eject sensor harness

Hook
