9.10.6 Top cover printed ASSY

(1) Remove the two taptite bind B M4x12 screws, and remove the inner chute from the top

cover printed ASSY.

(2) Remove the three taptite bind B M3x10 screws, and remove the eject cover from the top

cover printed ASSY.

(3) Release each hook, and remove the two paper stack levers from the top cover printed

ASSY.

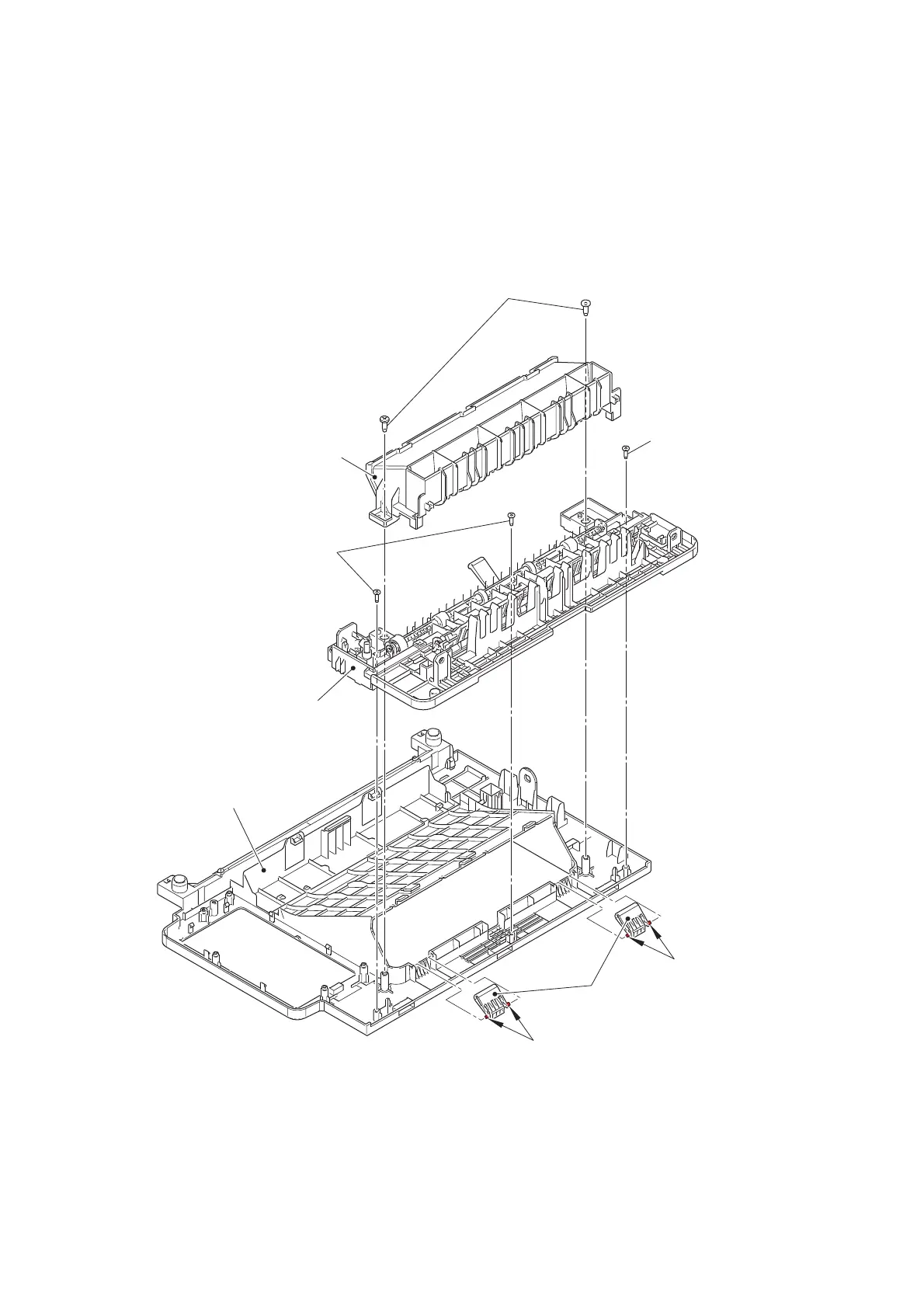

Fig. 3-46

Inner chute

Eject cover

Top cover printed ASSY

Paper stack levers

Taptite bind B M4x12

Taptite bind B M3x10

Hooks
