9.32 LT/TT connector

 For models with 520-sheet T1

(1) Remove the three taptite bind B M4x30 screws, and remove the bottom frame L from the

main frame L ASSY. Then pull out the LT/TT connector harness from the hole of the

main frame L ASSY.

(2) Release the two hooks A, and remove the LT/TT connector from the bottom frame L.

 For models with 250-sheet T1

(3) Release the two hooks A, and remove the LT/TT connector from the main frame L ASSY.

 Common to all models

(4) Release the two hooks B to disconnect the LT/TT connector harness from the LT/TT

connector.

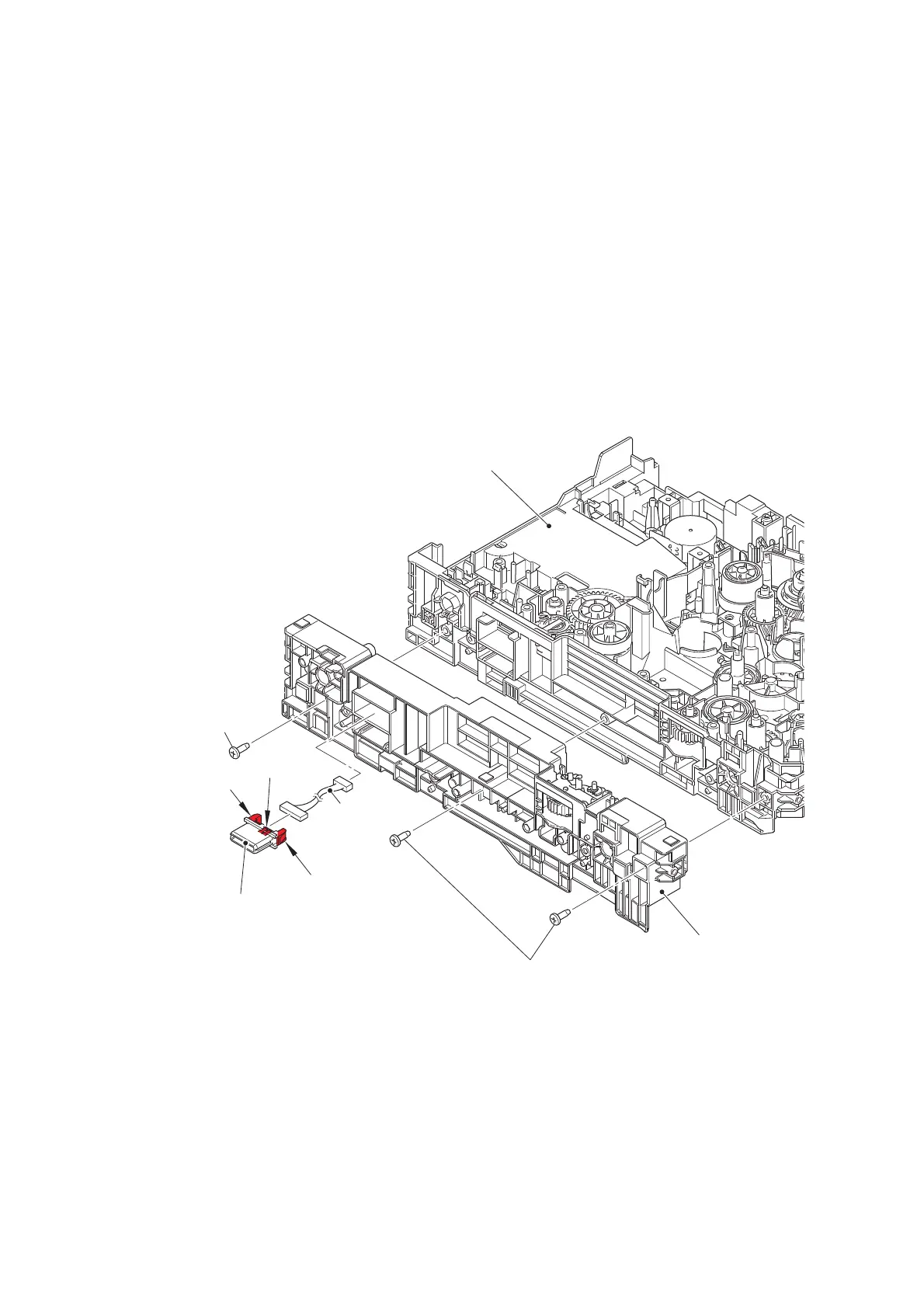

Fig. 3-84

Bottom frame L

Main frame L ASSY

Taptite bind B M4x30

LT/TT connector

harness

Taptite bind B M4x30

Hook A

LT/TT connector

Hooks B
