12.20 TT paper empty sensor PCB ASSY (Common to all TT)

(1) Release the hook on the bushing, and pull out the TT separation roller shaft to remove

the TT paper empty actuator.

(2) Release the hook to remove the TT paper empty actuator cover.

(3) Release the TT paper empty sensor harness from the securing fixtures.

(4) Remove the taptite bind B M3x10 screw to remove the TT paper empty sensor PCB

ASSY.

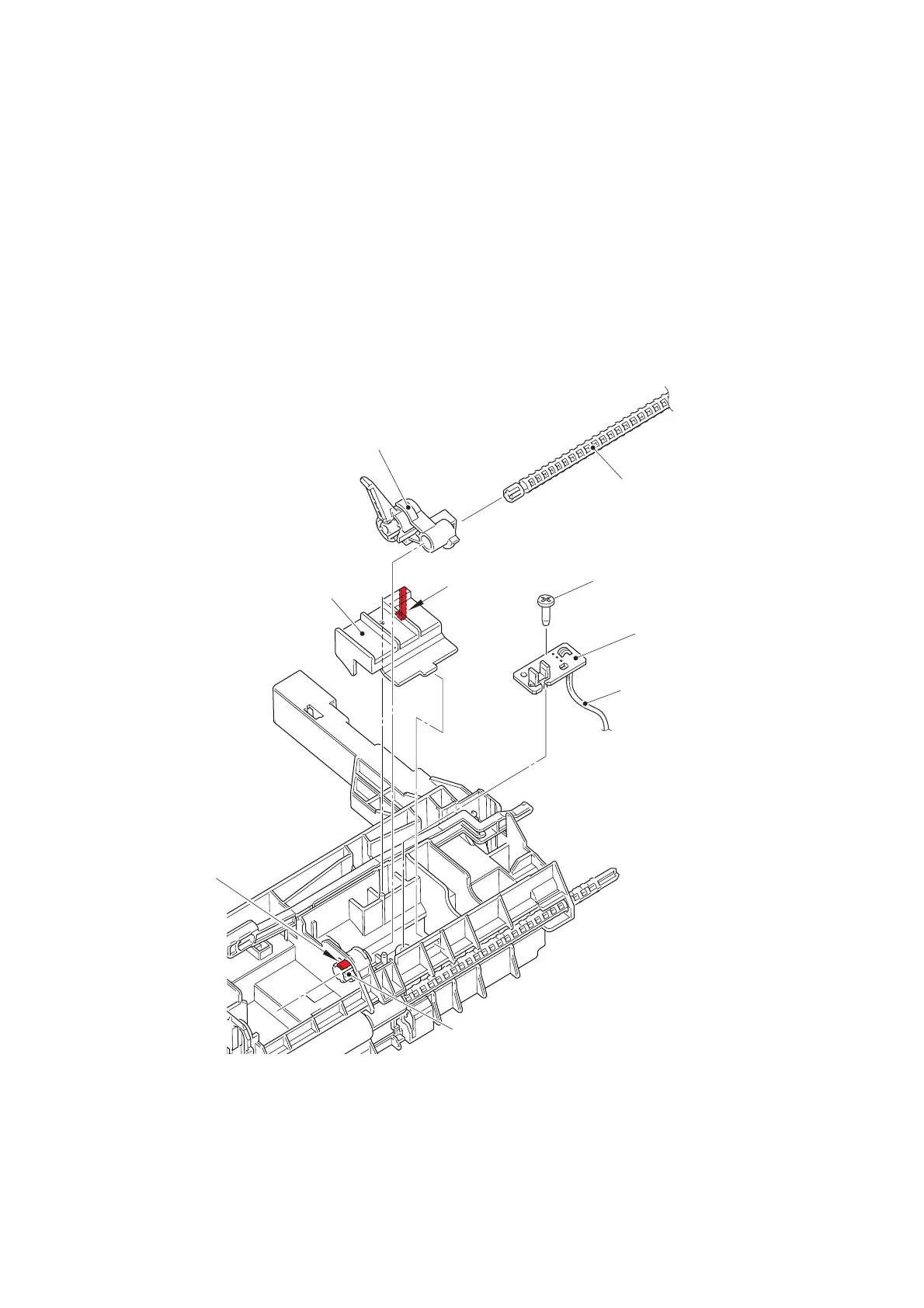

Fig. 3-183

Harness routing: Refer to “15. TT relay PCB ASSY (Each TT unit)”.

Hook

Bushing

TT paper empty actuator

TT paper empty actuator cover

TT paper empty sensor

PCB ASSY

TT separate roller shaft

TT paper empty sensor

harness

Taptite bind B M3x10
