3-183

Confidential

12.19 TT paper feed sensor PCB ASSY (Common to all TT)

(1) Release the TT paper feed sensor harness from the securing fixtures.

(2) Remove the taptite bind B M3x10 screw to remove the TT paper feed actuator holder

ASSY from the TT paper feed frame ASSY. Disconnect the TT paper feed sensor

harness from the TT paper feed frame ASSY.

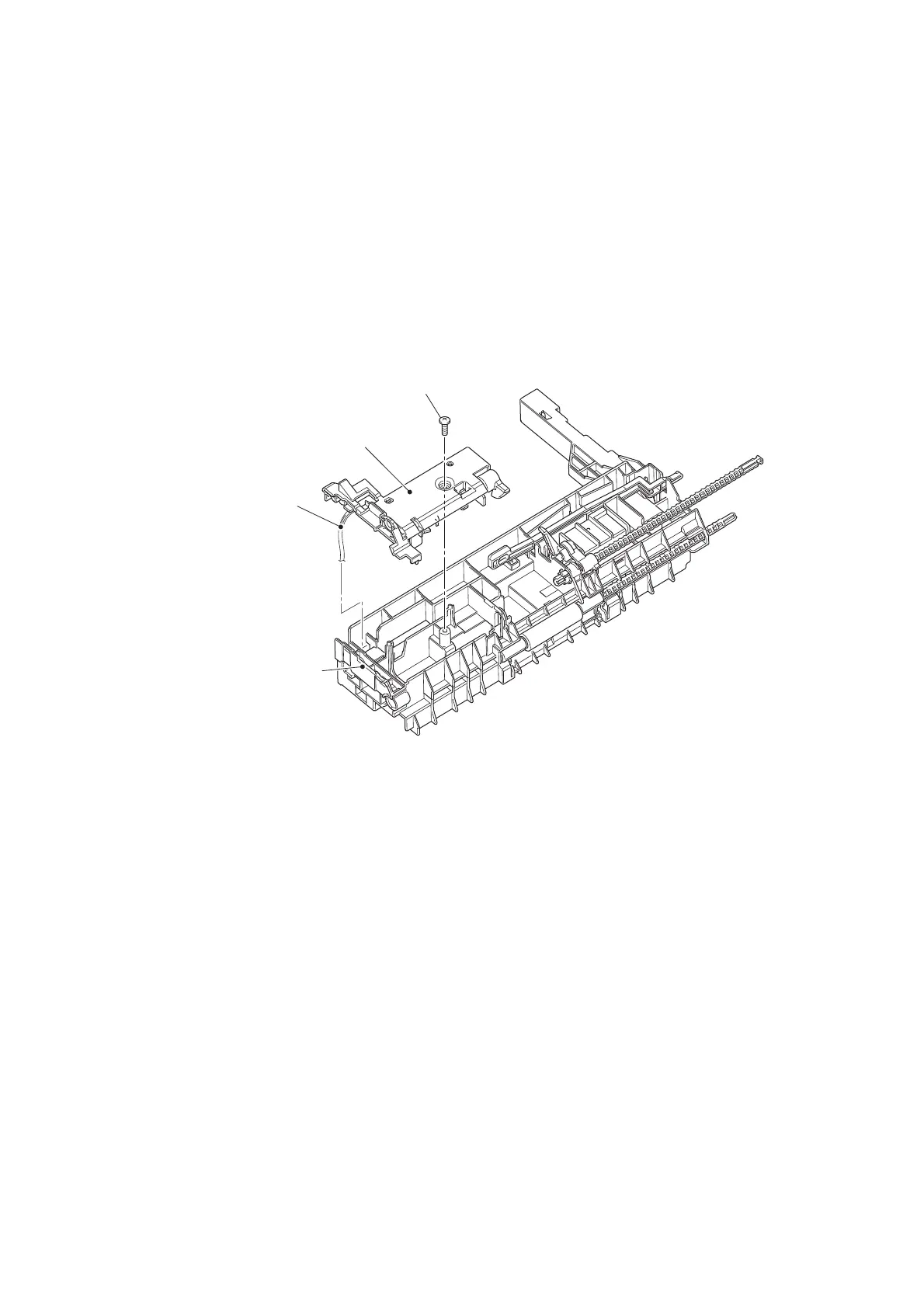

Fig. 3-181

Harness routing: Refer to “15. TT relay PCB ASSY (Each TT unit)”.

TT paper feed frame ASSY

TT paper feed actuator holder ASSY

Taptite bind B M3x10

TT paper feed

sensor harness
