3-153

Confidential

12.4 Covers

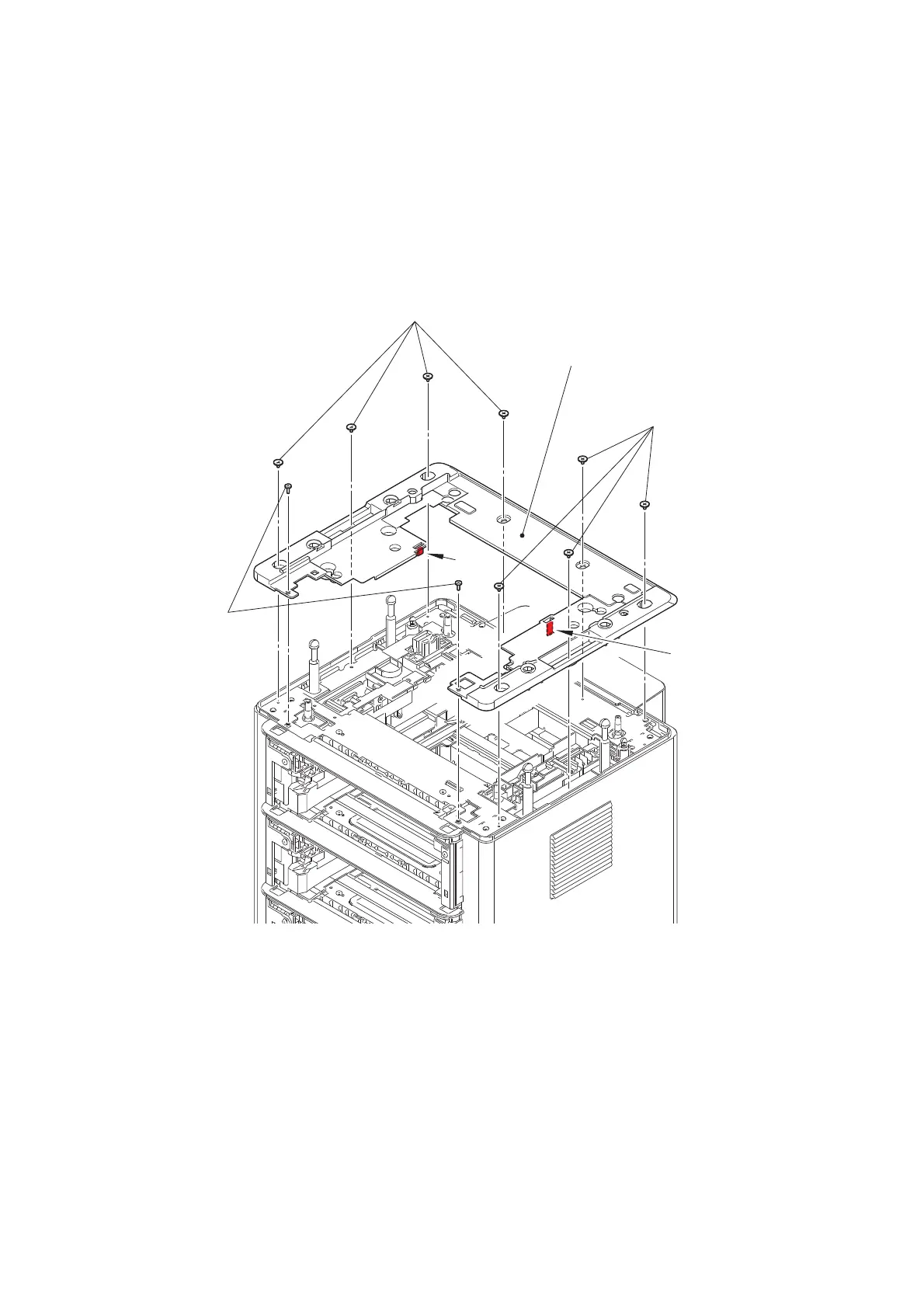

(1) Remove the eight shoulder screws and two taptite bind B M4x10 screws. Release the

two hooks to remove the top cover TT.

Fig. 3-147

Top cover TT

Taptite bind B M4x10

Shoulder screws

Hook
