3-143

Confidential

11.9 MX bin detection sensor

(1) Release the MX 2bin detection sensor harness and MX 4bin detection sensor harness

from the securing fixtures.

(2) Remove the taptite bind B M3x10 screw, and remove the bin detection sensor cover. (2

places)

(3) Release the two hooks, and remove the MX 2bin detection sensor.

(4) Release the two hooks, and remove the MX 4bin detection sensor.

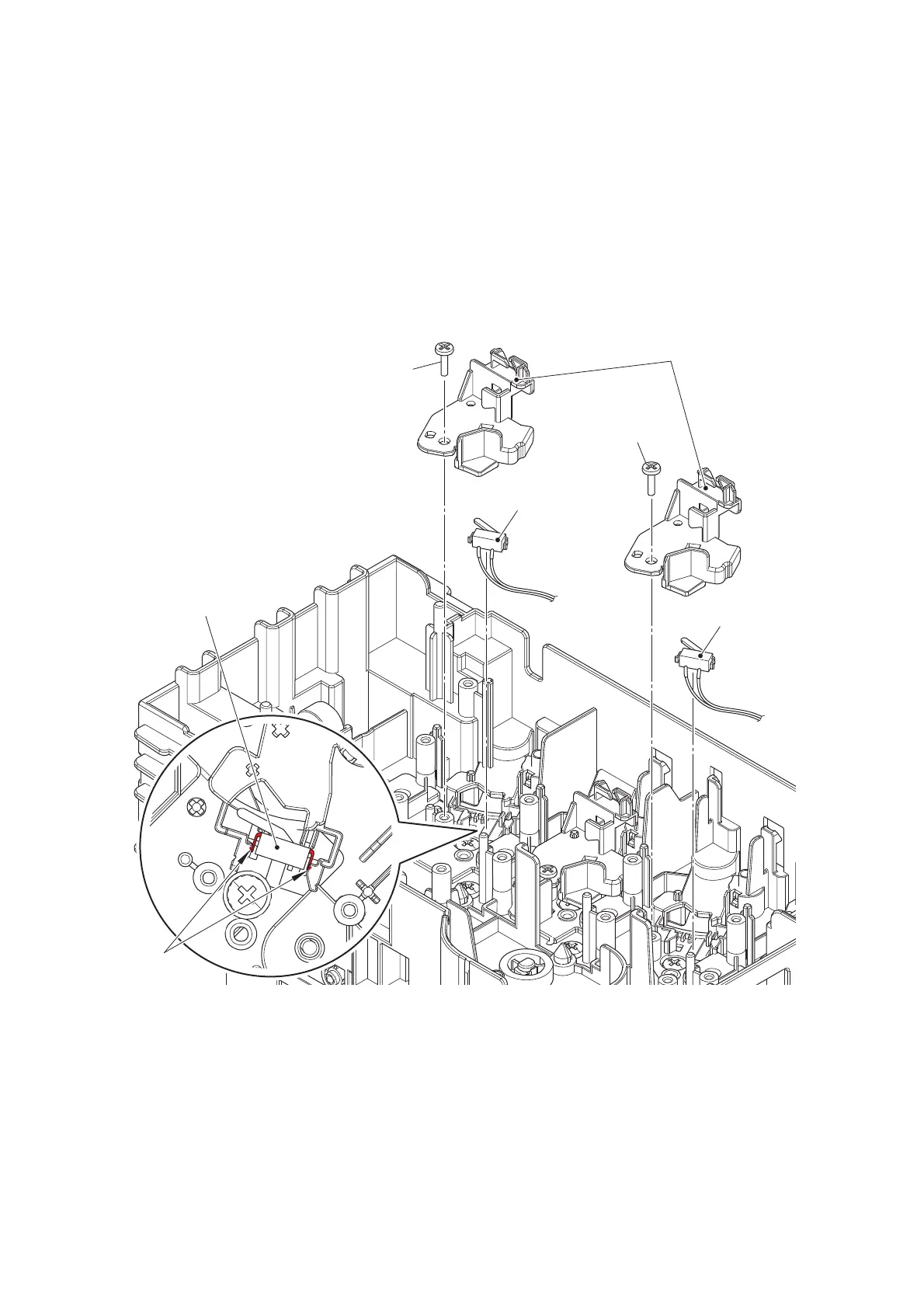

Fig. 3-137

Harness routing: Refer to “10. Left side of the MX”.

Bin detection sensor cover

MX 4bin detection

sensor

MX 2bin detection

sensor

MX 4bin detection sensor

Hooks

Taptite bind B M3x10
