3-58

Confidential

9.10.5 Stack sensor PCB ASSY

(1) Release the hook, and remove the stack sensor PCB ASSY from the top cover printed

ASSY.

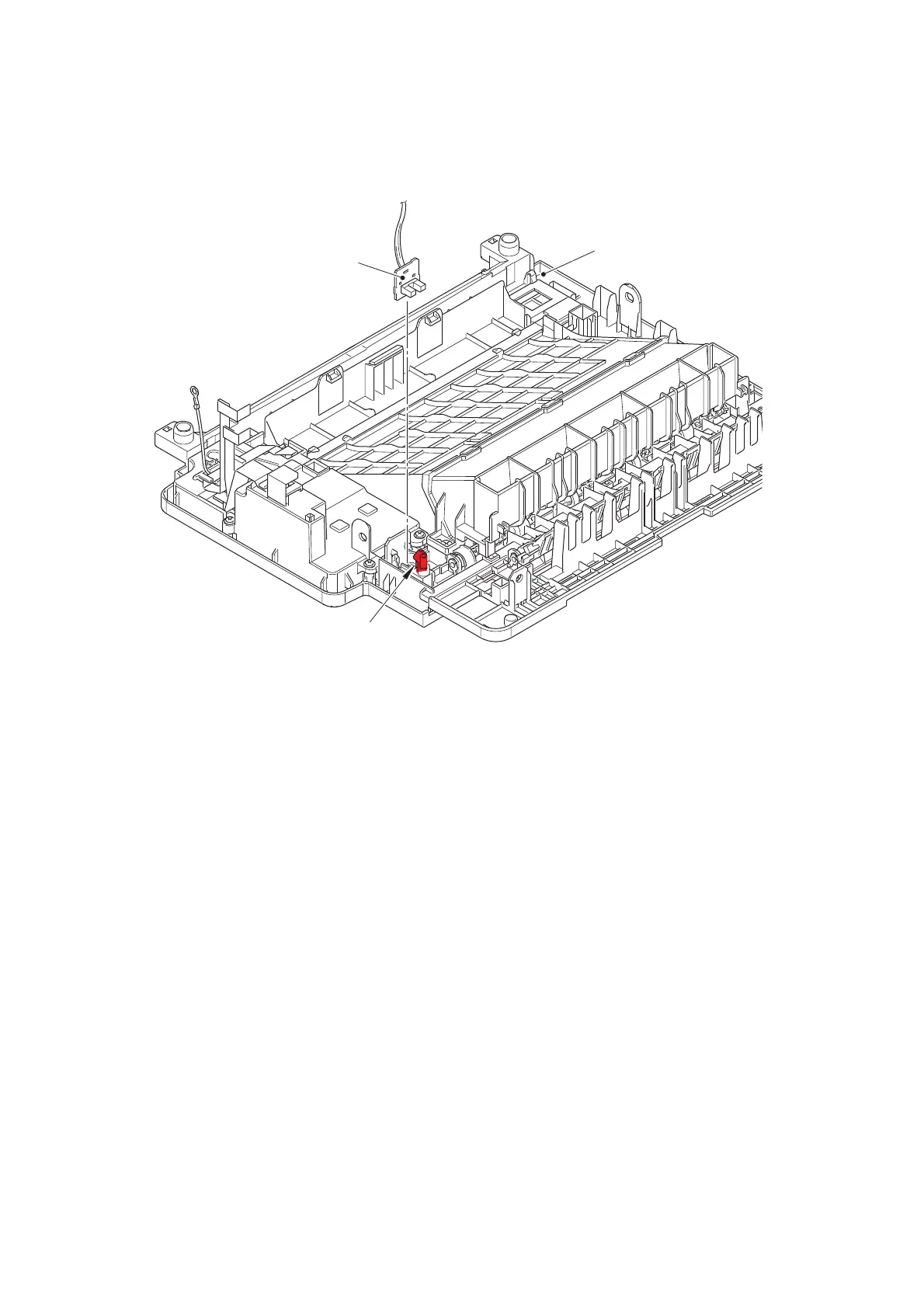

Fig. 3-45

Stack sensor PCB ASSY

Top cover printed ASSY

Hook
