3-152

Confidential

12.3 TT roller holder ASSY

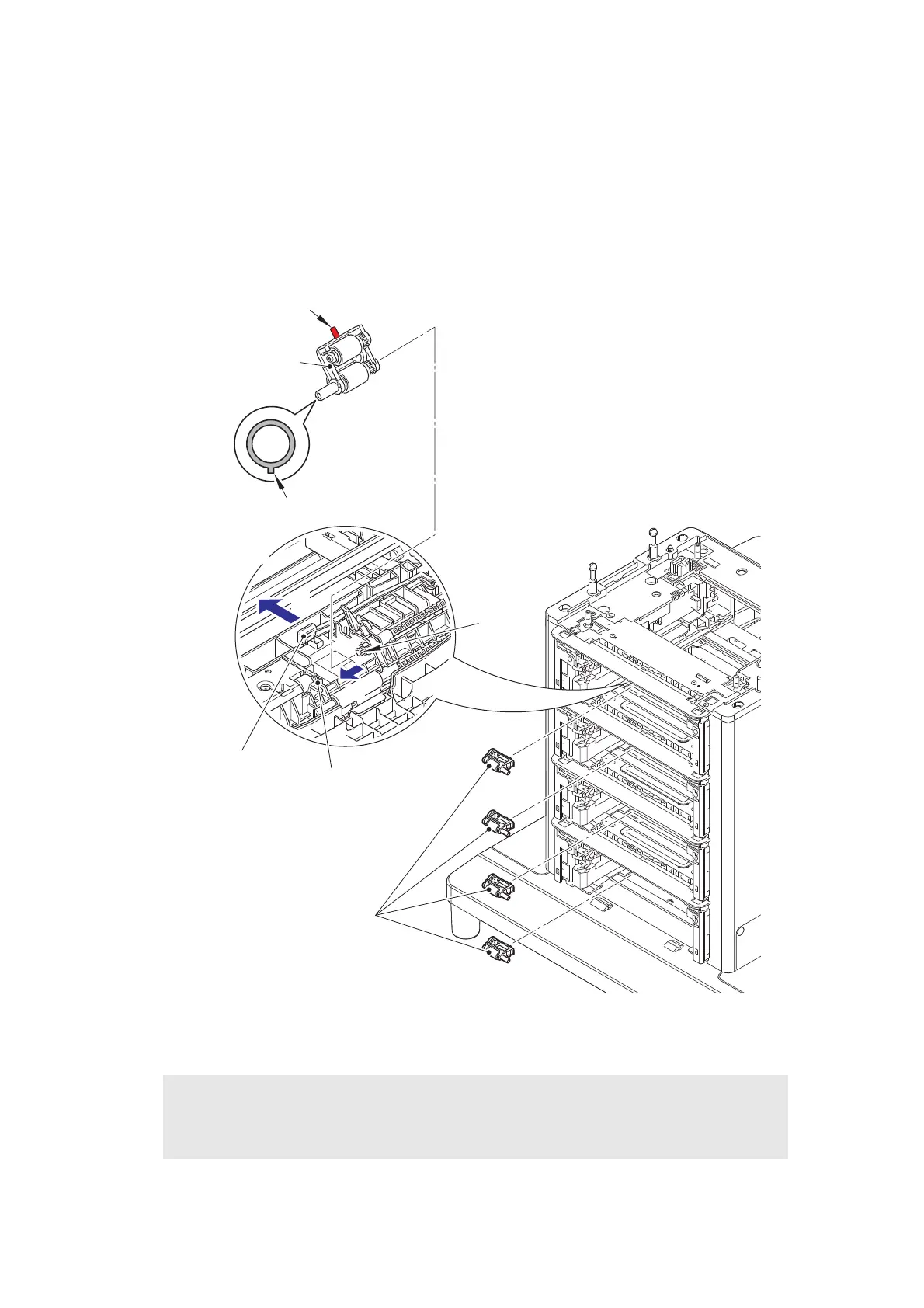

(1) Push the link arm in the direction of the arrow A, and turn the TT roller holder ASSY to

remove the boss.

(2) Slide the TT roller holder ASSY in the direction of the arrow B to remove it from the shaft,

and remove the TT roller holder ASSY.

Fig. 3-146

Assembling Note:

• When assembling the TT roller holder ASSY, engage the hole of the TT paper feed

frame ASSY with the "A" part of the shaft on the TT roller holder ASSY.

Boss

"A"

TT roller holder ASSY

Link arm

TT paper feed frame ASSY

Shaft

TT roller holder ASSY

Default Chapter4
- Table of Contents4
