12.16 TT pickup clutch (Common to all TT)

(1) Release the TT pickup clutch harness from the securing fixtures. Release the hook to

remove the TT pickup clutch from the frame L.

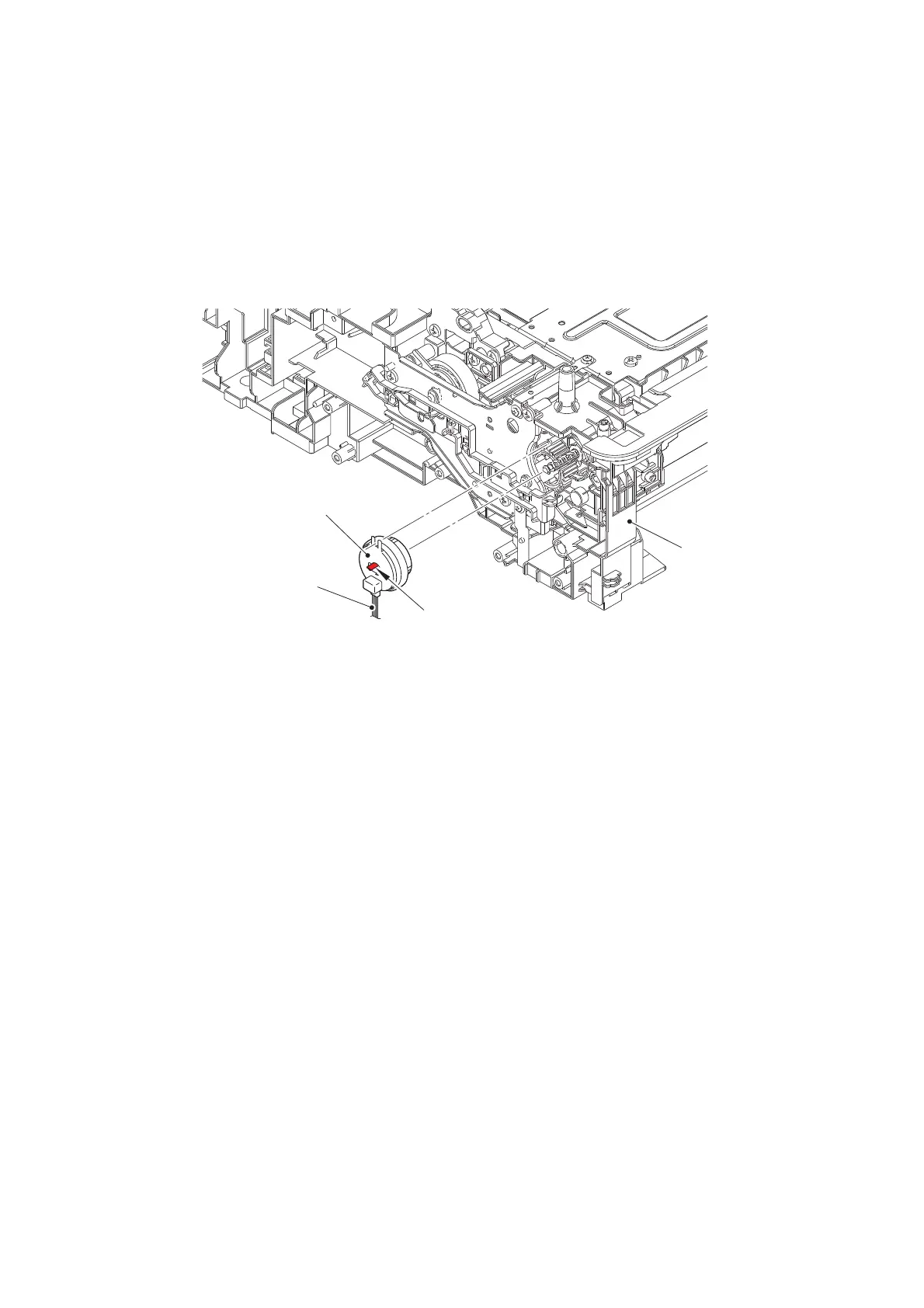

Fig. 3-174

Harness routing: Refer to “15. TT relay PCB ASSY (Each TT unit)”.

Hook

Frame L

TT pickup clutch

TT pickup clutch harness
