3-89

Confidential

9.27 Internal temperature sensor

(1) Release the internal temperature sensor harness from the securing fixtures, and remove

the internal temperature sensor.

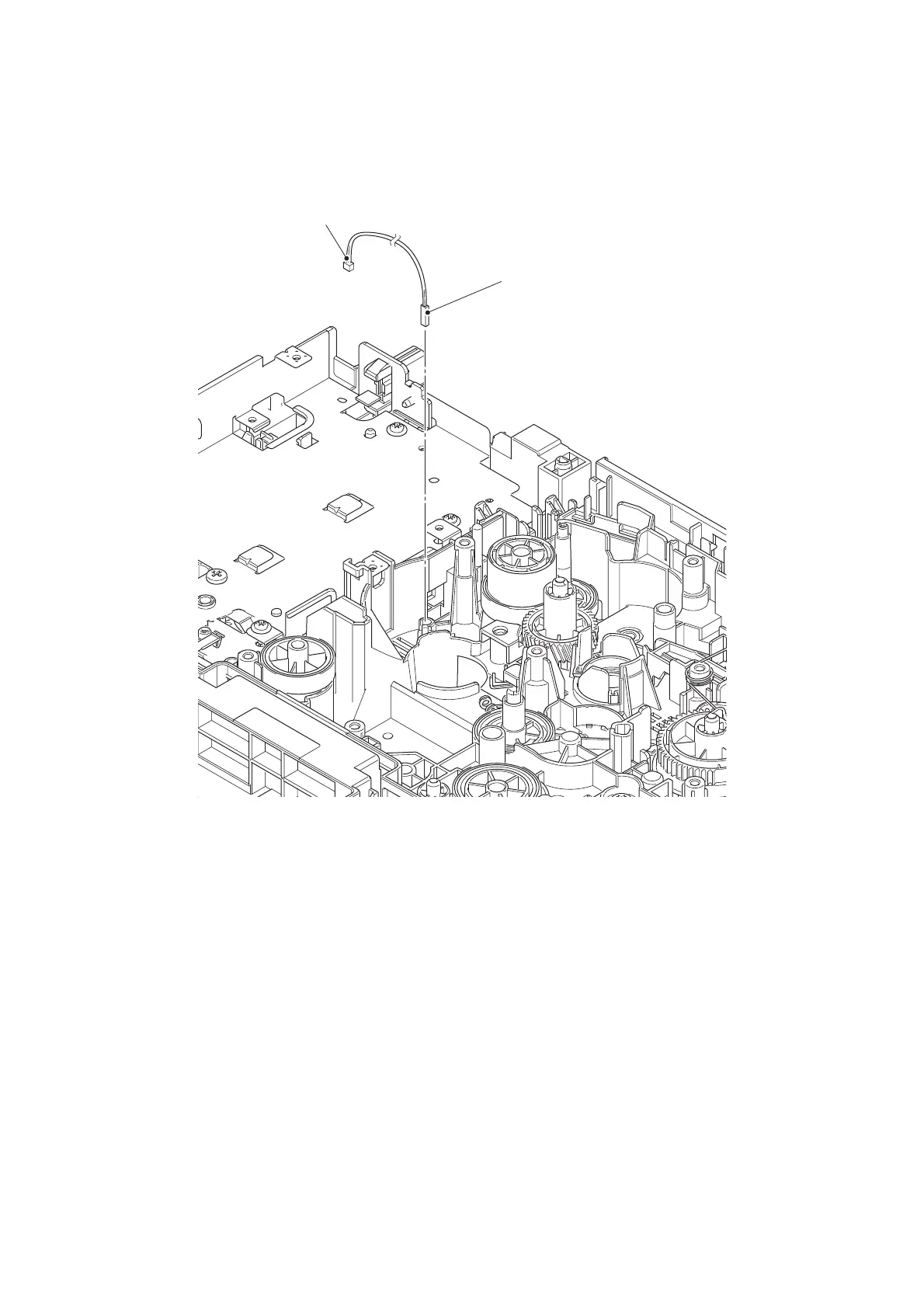

Fig. 3-78

Harness routing: Refer to “3. Left side of the machine (Common to all models)”.

Internal temperature sensor

Internal temperature sensor harness
