9.30 Eject motor

(1) Release the eject motor harness from the securing fixtures.

(2) Remove the two taptite bind B M3x10 screws, and remove the eject motor plate from the

main frame L ASSY.

(3) Remove the screw bind M3x4 screw. Turn the eject motor in the direction of the arrow,

and remove it from the eject motor plate.

(4) Disconnect the eject motor harness from the eject motor.

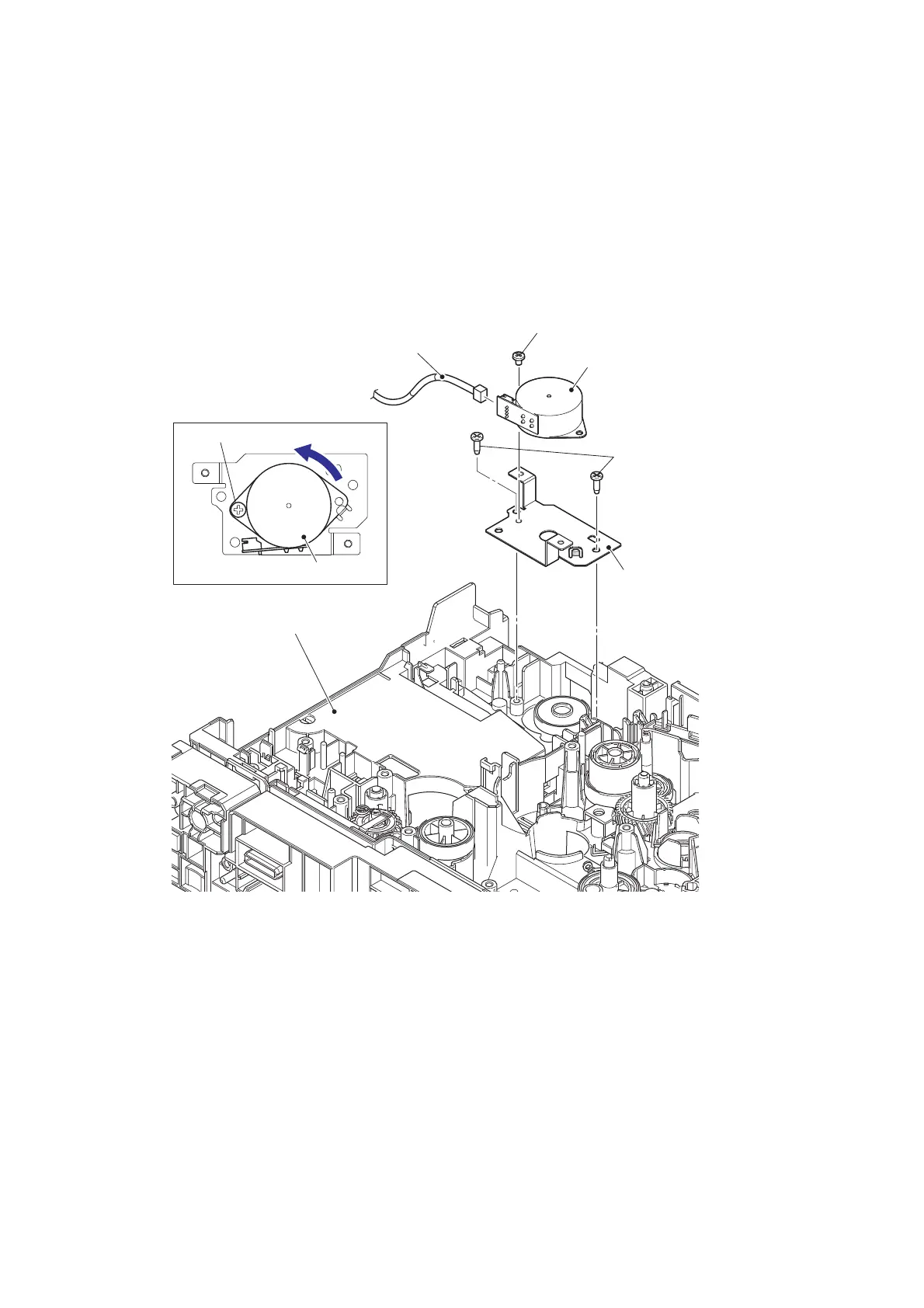

Fig. 3-82

Harness routing: Refer to “3. Left side of the machine (Common to all models)”.

Eject motor

Main frame L ASSY

Taptite bind B M3x10

Eject motor harness

Eject motor

Screw bind M3x4

Eject motor plate
