3-94

Confidential

9.31 Back cover/duplex tray sensor

(1) Release the back cover/duplex tray sensor harness from the securing fixtures.

(2) Release the two hooks, and remove the back cover/duplex tray sensor from the main

frame L ASSY.

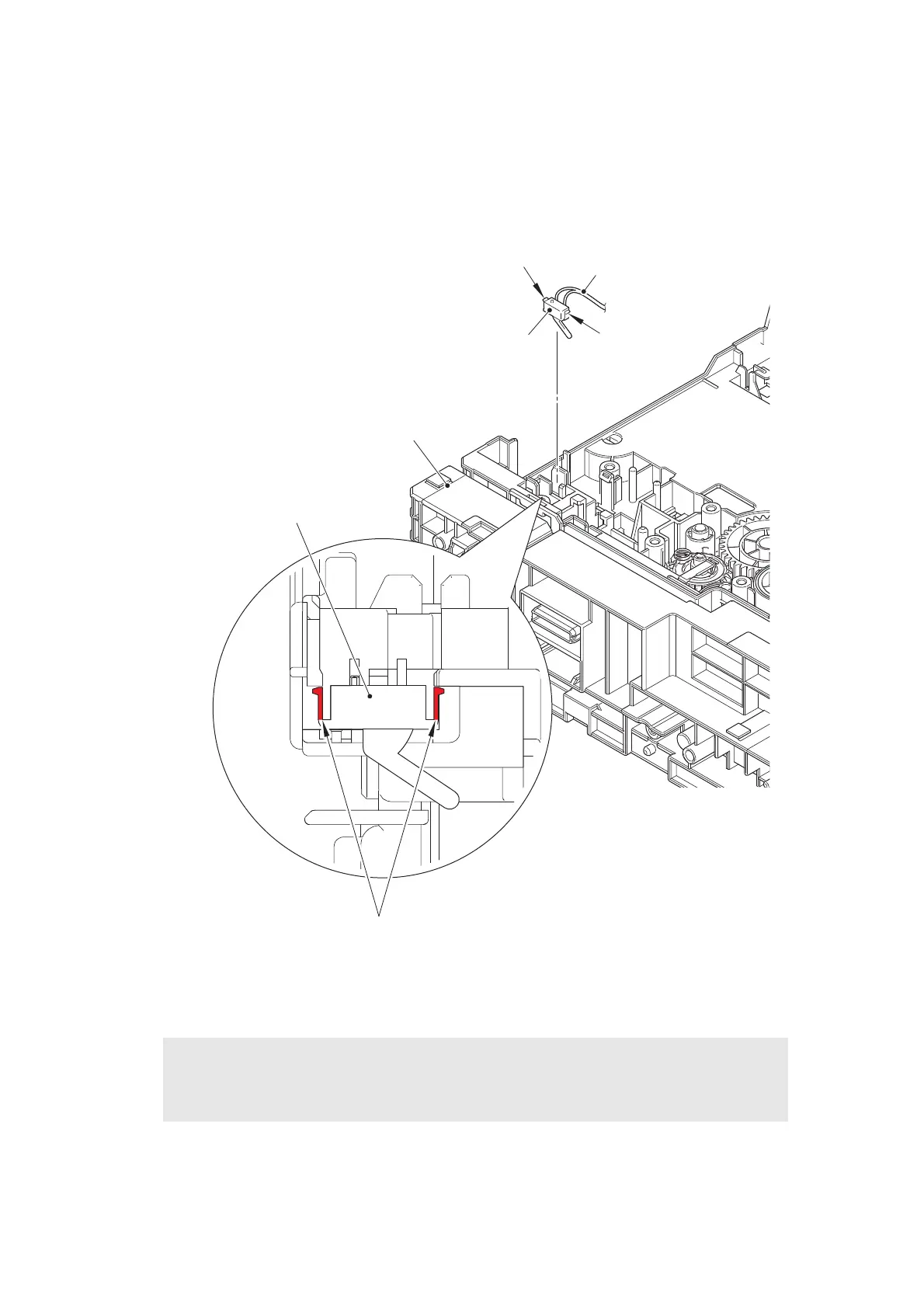

Fig. 3-83

Harness routing: Refer to “3. Left side of the machine (Common to all models)”.

Assembling Note:

• When connecting the back cover/duplex tray sensor, insert it at an angle from the right

side.

Hook

Hooks

Back cover/duplex tray sensor

Main frame L ASSY

Back cover/duplex tray sensor

Back cover/duplex tray sensor harness
