12.11 Low-voltage power supply PCB ASSY

(1) Remove the screw pan (S/P washer) M3.5x6 screw and the two screw cup M3x8 (black)

screws to remove the LV shield plate cover.

(2) Remove the LV insulation sheet.

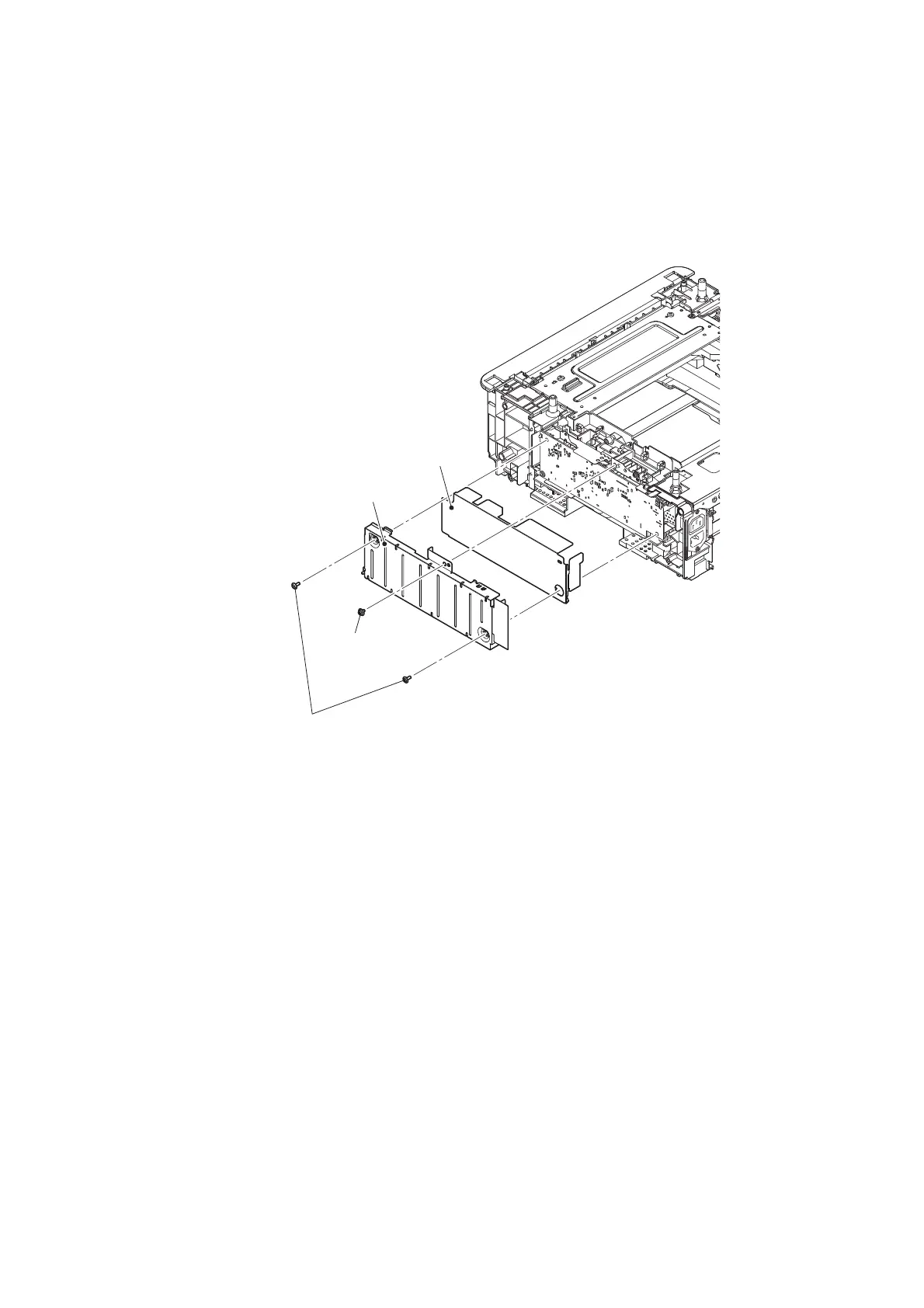

Fig. 3-163

Screw pan (S/P

washer) M3.5x6

LV shield plate cover

LV insulation sheet

Screw cup M3x8 (black)
